STRUCTURE: ____________________
Doc No. A-37
MIRACLE: ______________________
Item
Description
1
Aluminium Plank
2
Frame
3
End Caps
4
M10x25mm Torx Bolt
5
M10 Flat Washer
Application:
Landing – Foot platform for Overhead challengers and Motion
Rides.
Bench Seat – Role Playing
Installation Instructions:
1.

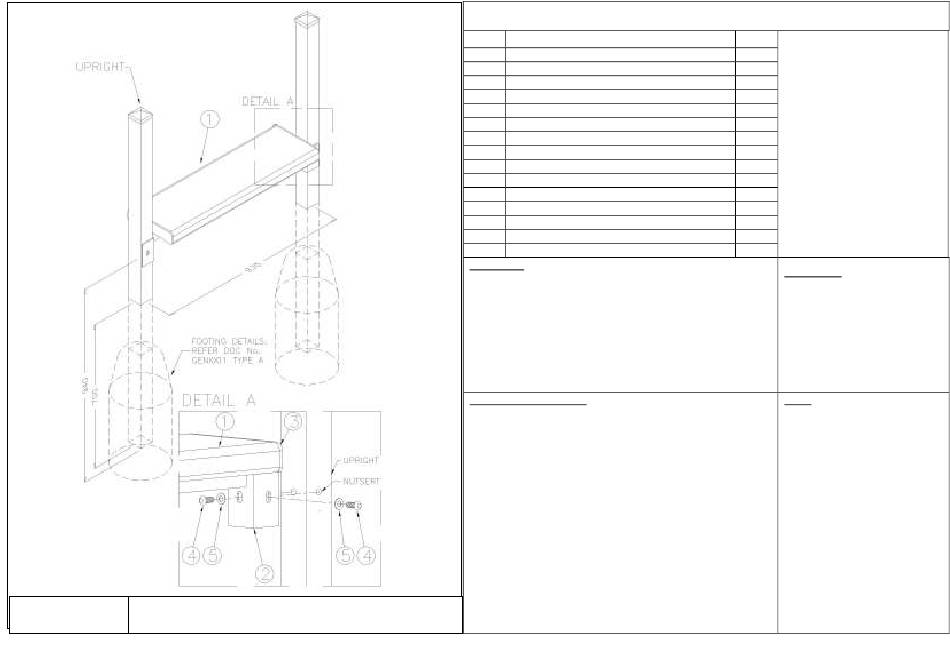

Refer to drawings for Bench Seat or Landing location.
2.
Lift Assembled Bench Seat/Landing (1) into to position and
attach to Nutserts in the Upright using M10x25mm Torx
Bolts (4) and Flat Washers (5) under the bolt heads.
(Refer Detail A)
3.
Ensure all bolts are fully tight.
DATE: ___________
DATE: ___________
BENCH SEAT/ LANDING
Qty
Assembled Items
1
1
2
Loose Items
4
4
Specifications
Materials:
Colour: Optional
Finish: Powdercoat
Tools: M10 Torx Key
Fasteners:
Stainless Steel
Maintenance
All fasteners should be regularly
checked and retightened, if necessary,
1 week after installation.
Ongoing maintenance intervals will vary
according to the amount of use the
equipment receives.
Recommend inspection intervals every 3
months.
* Wear Item - Refer Warranty
Note:
In-ground Upright depth may vary
depending on Softfall
- Sand/Mulch/Grass–700mm (Pictured)
- Rubber – 500mm
+ 300mm Added to Upright depth if
component is Freestanding
+ Use ID tag as reference.
