Installation Guide

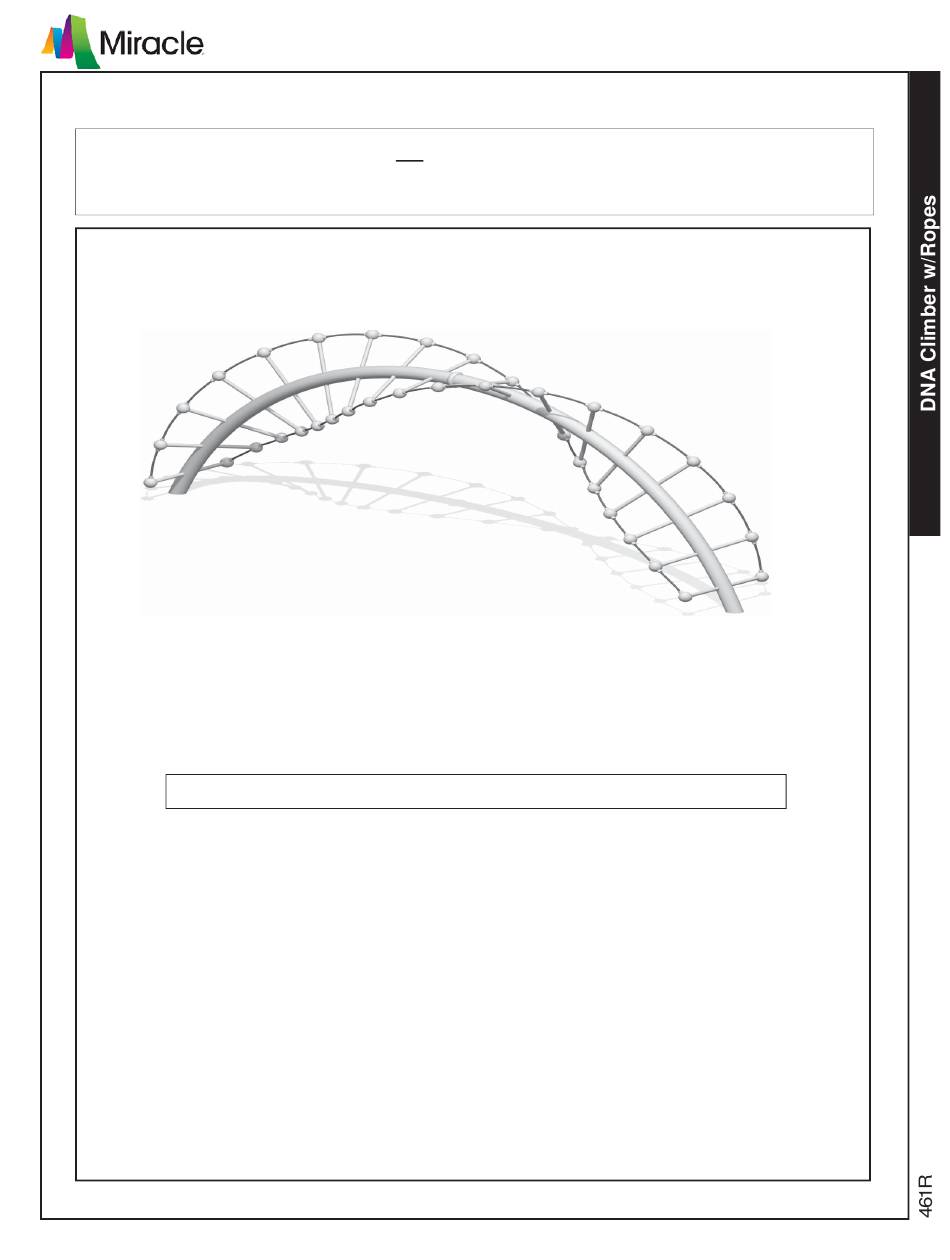

DNA Climber w/Ropes
IMPORTANT!
Prior to installation of any components, refer to the "Owner/Operator Manual". This
manual will provide important information pertaining to site preparation, footings, system stabilization and
other necessary information vital to the success of your installation.
Note: An (*) by a part number (CODE) indicates: Color Code Required.
1. Concrete for footings, wheelbarrow or mixer, 5 gallon bucket, water supply
2. Digging equipment for footings (spade shovel, post hole digger, auger)
3. Bracing materials (2x4s, sawhorses, etc.)
4. Tape measure and level
5. Open end wrench set, Allen and 6-lobe wrenches or bits, socket set, screwdrivers
6. Drill, bits, extension cords, power supply
7. Step ladder
8. Adult installers - 2 minimum
TOOLS AND EQUIPMENT REQUIRED
Refer to "Installations 101"
461R
DNA Climber w/Ropes
Protective Area: 32' x 16'
27JAN20
Rev. G
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Miracle 461R
Summary of Contents for Miracle 461R
- Page 1 Prior to installation of any components, refer to the "Owner/Operator Manual". This manual will provide important information pertaining to site preparation, footings, system stabilization and other necessary information vital to the success of your installation. 461R DNA Climber w/Ropes Protective Area: 32' x 16' Note: An (*) by a part number (CODE) indicates: Color Code Required.
- Page 2 27JAN20 Rev. G DNA Climber w/Ropes Top View Footing Layout Note: 12" of protective surfacing is required above footings. STEP 1 DIG FOOTINGS 1a. Dig footing holes per Footing Layout. Refer to Footing Details installation located behind Installations 101 in Installation Manual. STEP 2 SECURE SPLICE WELDMENT INTO ARCH HALVES Page 2 of 6...
- Page 3 27JAN20 Rev. G DNA Climber w/Ropes STEP 3 ATTACH VERSALOK CLAMP OVER ARCH CONNECTION POINT THIS SPACE INTENTIONALLY LEFT BLANK Page 3 of 6...
- Page 4 27JAN20 Rev. G DNA Climber w/Ropes STEP 4 THREAD ROPE-TWISTED ARCH ONTO CLIMBER 4a. Begin at one end of the climber and thread the rope-twisted arch into the fi rst sphere approximately 4", OR, until you feel the rope-twisted arch bottom out inside the sphere.
- Page 5 Pour concrete and allow to cure for 72 hours prior to allowing play. FINAL STEP Proceed with Final Assembly installation located behind Installations 101 in the Installation Manual. Bill of Materials MODEL 461R DNA CLIMBER W/ROPES QUANTITY PART NUMBER DESCRIPTION 996243* ARCH-ROPE HALF...
- Page 6 PARTS CARTON 912291* QUANTITY PART NUMBER DESCRIPTION 996244* ROPE-TWISTED ARCH 996233 SPLICE WELDMENT HW912291-1 HRDW PKG 461R S1/1 HW912291-1 HRDW PKG 461R S1/1 QUANTITY PART NUMBER DESCRIPTION 104073 SET SKT 3/8-16 X 1/2 BOLT 18-8 SS 104286 BOLT 3/8-16 X 1 BHCS 6 LOBE 18-8 SS...
