Installation Guide
Bug Bites
IMPORTANT!
Guidelines and Tips in the Install 101 section of your manual. This section will provide important
tips pertaining to site preparation, footings, system stabilization, and other necessary
information vital to the success of your installation.
Top Views not shown. For Footing Layouts, refer to Footing Assembly illustrations on page 4.
Also see 'Suggested Tools & Equipment' (Doc. # D70052) in 'Installations 101'
1. Concrete for footings, wheelbarrow or mixer, 5 gallon bucket, water supply
2. Digging equipment for footings (spade shovel, post hole digger, auger)
3. 2 x 8's or other wood, nails, hammer to construct frame for concrete footing assembly
4. Tape measure and level
5. Allen and 6-lobe wrenches or bits, socket set, screwdrivers
6. For installation in concrete slabs: concrete saw
7. Adult installers - 2 minimum

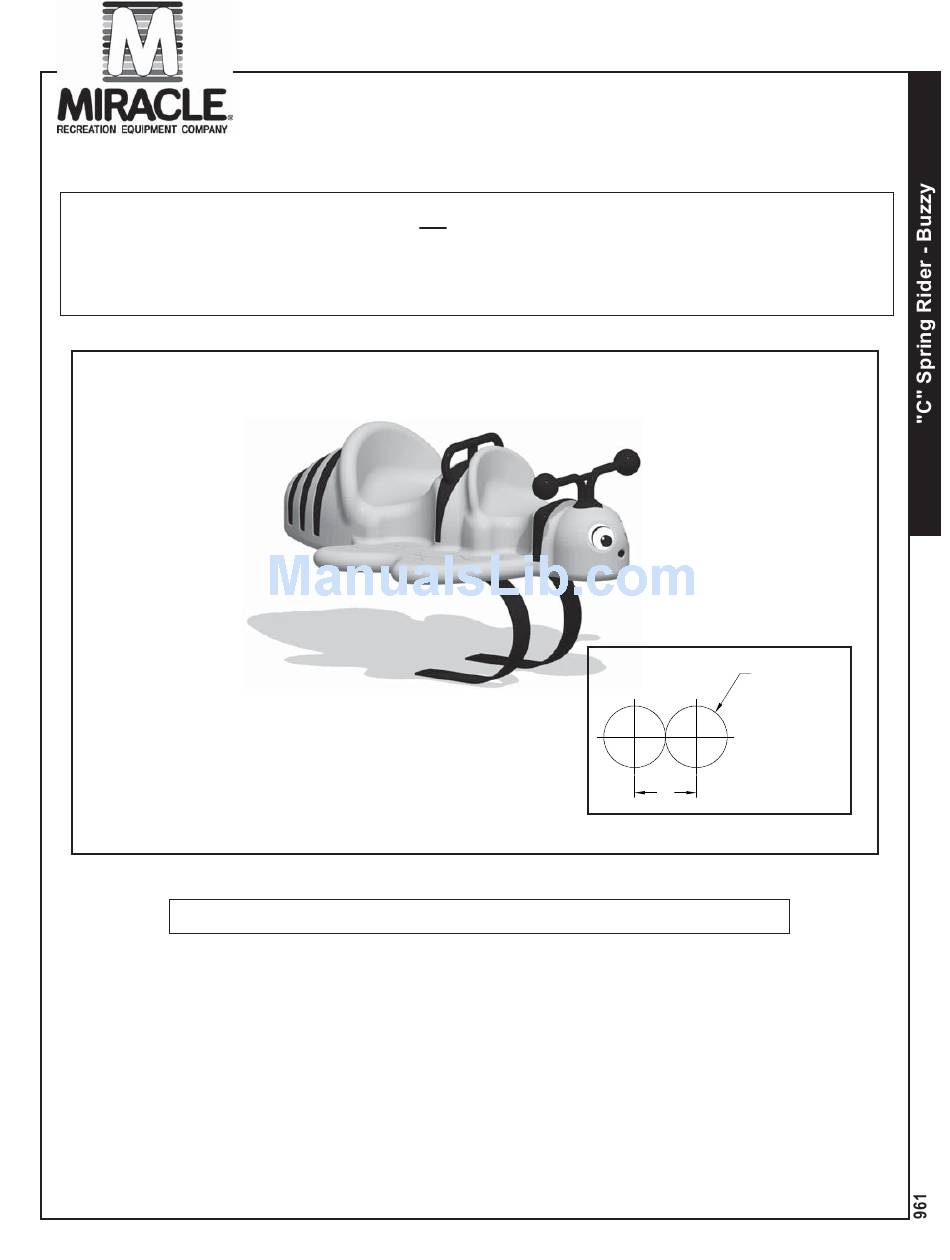

"C" Spring Rider - Buzzy
®
Prior to installation of any components, refer to Playsystem Installation
TOOLS AND EQUIPMENT REQUIRED
Buzzy "C" Spring Rider
18" DIA. X 18"
DEEP FOOTING
(2) REQ'D
18"
April 3, 2009
Rev. A
961
Page 1 of 4
Advertisement
Related Manuals for Miracle 961
Summary of Contents for Miracle 961
- Page 1 April 3, 2009 Installation Guide Rev. A Bug Bites "C" Spring Rider - Buzzy ® IMPORTANT! Prior to installation of any components, refer to Playsystem Installation Guidelines and Tips in the Install 101 section of your manual. This section will provide important tips pertaining to site preparation, footings, system stabilization, and other necessary information vital to the success of your installation.
- Page 2 April 3, 2009 Rev. A Bug Bites "C" Spring Rider - Buzzy ® STEP 1 DIG FOOTINGS Consult the CPSC Handbook for guidelines for placement of Spring Riders, Bouncers, etc. Locate and dig two 18" diameter footings, 18" deep. STEP 2 ATTACH PINCH PLATES TO BASES; LEVEL IN FOOTINGS PRIOR to setting bases in footings, attach Pinch Plate as shown in Illustration A.
- Page 3 April 3, 2009 Rev. A Bug Bites "C" Spring Rider - Buzzy ® STEP 3 REMOVE PINCH PLATE AND SET ASIDE Once concrete is cured, remove pinch plate REMOVE as shown and set Pinch Plate and 1/2" bolts & REUSE REMOVE aside for use in Step 4.
- Page 4 "C" Spring Rider - Buzzy ® STEP 7 AFFIX IDENTIFICATION/WARNING STICKERS TO "C" SPRING Apply provided Miracle identification and warning stickers to "C" Spring as shown. IMPORTANT NOTE: It is imperative that these stickers are CLEARLY visible. IMPORTANT: FOR IDENTIFICATION AND SAFETY PURPOSES APPLY STICKERS AS SHOWN.
