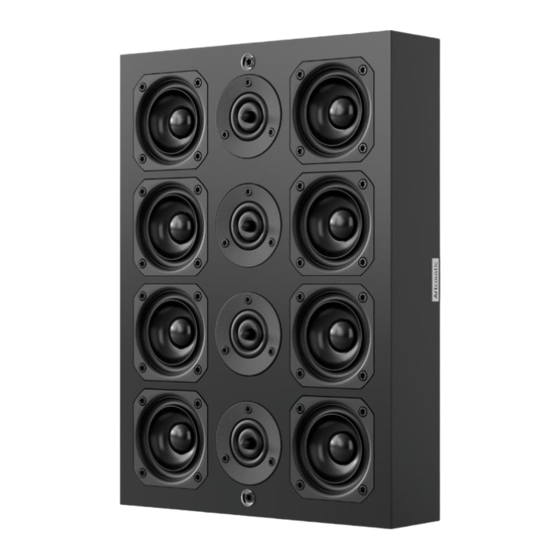

Artcoustic SL EVOLVE Series Owner's Manual

Hide thumbs Also See for SL EVOLVE Series:

Advertisement

Quick Links

Download this manual
artcoustic.com
SL EVOLVE SERIES
Owners manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SL EVOLVE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Artcoustic SL EVOLVE Series

Summary of Contents for Artcoustic SL EVOLVE Series

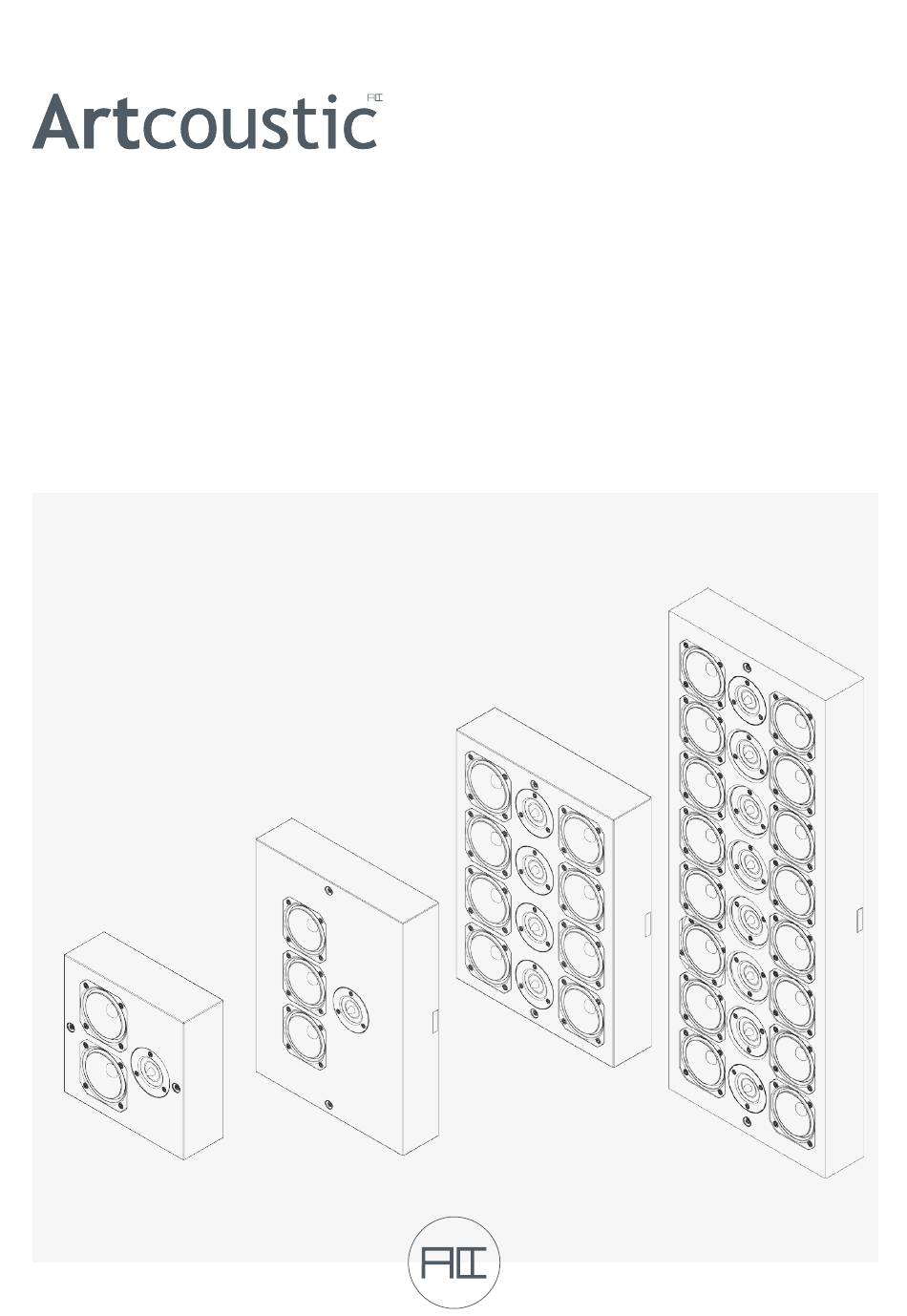

  • Page 1 SL EVOLVE SERIES Owners manual...
  • Page 2 Hi-Fi and, multi-room audio installations. For an even more impressive performance, partner it with one of the Artcoustic subwoofers - an ideal setup for small and medium-size cinema rooms. The SL Evolve Series has been engineered to produce...
  • Page 3 Artcoustic delivers products at the top of their class, with regards to technological excellence and refined Scandinavian design. Introducing the latest edition of the SL Evolve series – the Evolve Time Aligned Array (ETAA). The ETAA is a precise and well-designed solution for dealing with high-frequency array phase overlap.
  • Page 4 SL EVOLVE 1-1 This multi-purpose monitor shares many characteristics with the other models in the Evolve range. Maintaining Artcoustic's clean contemporary design, the SL Evolve 1-1 has been designed to match all modern flat screen monitors. SL Evolve 1-1 - This is a very flexible loudspeaker, designed for use in smaller rooms for home cinema or HiFi, and multi-room applications in kitchens, bedrooms, studies, etc.
  • Page 5 SL EVOLVE 2-1 This multi-purpose monitor shares many characteristics with the other models in the Evolve range. Maintaining Artcoustic's clean contemporary design, the SL Evolve 2-1 has been designed to match all modern flat screen monitors. The SL Evolve 2-1 is a very flexible loudspeaker, designed for use in smaller rooms for home cinema or HiFi, as well as for multi-room applications in kitchens, bedrooms, studies, etc.
  • Page 6 Dual Ring Radiator diaphragm with highly linear suspension and low loss surrounds for high clarity and clean transient response. Copper caps for better HF extension and lower distortion and wave-guide center plug, copper-clad aluwire. OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 7 Circuiting Ring, 4-layer voice coil, anodised aluminium for improved heat dissipation, combined with Distortion Reduced Motor. SL Evolve 8-4 isometric view CROSSOVER 6 dB/octave low pass and 12 dB/octave high pass filter. OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 8 Recommended High Pass Filter 100 Hz, 24 dB/octave Nominal 7 ohms DESIGN NOMINAL BEAM Cabinet: Black, White, RAL, NCS. WIDTH Screen: Black, White, RAL, NCS, Artcoustic Art Gallery Horizontal 90° Vertical 90° DIMENSIONS H: 150 W: 150 D: 72 mm WEIGHT 1.3 kg...
  • Page 9 Recommended High Pass Filter 100 Hz, 24 dB/octave Nominal 4 ohms DESIGN NOMINAL BEAM Cabinet: Black, White, RAL, NCS. WIDTH Screen: Black, White, RAL, NCS, Artcoustic Art Gallery Horizontal 90° Vertical 90° DIMENSIONS H: 200 W: 200 D: 72 mm WEIGHT 2.4 kg...
  • Page 10 Recommended High Pass Filter 100 Hz, 24 dB/octave Nominal 4 ohms DESIGN NOMINAL BEAM Cabinet: Black, White, RAL, NCS. WIDTH Screen: Black, White, RAL, NCS, Artcoustic Art Gallery Horizontal 80° Vertical 80° DIMENSIONS H: 370 W: 270 D: 72 mm WEIGHT 3.8 kg...
  • Page 11 Recommended High Pass Filter 100 Hz, 24 dB/octave Nominal 4 ohms DESIGN NOMINAL BEAM Cabinet: Black, White, RAL, NCS. WIDTH Screen: Black, White, RAL, NCS, Artcoustic Art Gallery Horizontal 80° Vertical 40° DIMENSIONS H: 370 W: 270 D: 72 mm WEIGHT 4.2 kg...
  • Page 12 Recommended High Pass Filter 100 Hz, 24 dB/octave Nominal 5 ohms DESIGN NOMINAL BEAM Cabinet: Black, White, RAL, NCS. WIDTH Screen: Black, White, RAL, NCS, Artcoustic Art Gallery Horizontal 80° Vertical 30° DIMENSIONS H: 370 W: 270 D: 72 mm WEIGHT 5.2 kg...
  • Page 13 Nominal 3.5 ohms Recommended High Pass Filter 100 Hz, 24 dB/octave DESIGN NOMINAL BEAM WIDTH Cabinet: Black, White, RAL, NCS. Screen: Black, White, RAL, NCS, Artcoustic Art Gallery Horizontal 80° Vertical 25° DIMENSIONS H: 370 W: 270 D: 72 mm WEIGHT 5.8 kg...
  • Page 14 Nominal 7 ohms Recommended High Pass Filter 100 Hz, 24 dB/octave DESIGN NOMINAL BEAM WIDTH Cabinet: Black, White, RAL, NCS. Screen: Black, White, RAL, NCS, Artcoustic Art Gallery Horizontal 80° Vertical 20° DIMENSIONS H: 550 W: 270 D: 72 mm WEIGHT 8.9 kg...
  • Page 15 Recommended High Pass Filter 100 Hz, 24 dB/octave Nominal 7 ohms DESIGN NOMINAL BEAM Cabinet: Black, White, RAL, NCS. WIDTH Screen: Black, White, RAL, NCS, Artcoustic Art Gallery Horizontal 80° Vertical 18° DIMENSIONS H: 716 W: 270 D: 72 mm WEIGHT 11.6 kg...
  • Page 16 Nominal 5 ohms Recommended High Pass Filter 100 Hz, 24 dB/octave DESIGN NOMINAL BEAM WIDTH Cabinet: Black, White, RAL, NCS. Screen: Black, White, RAL, NCS, Artcoustic Art Gallery Horizontal 80° Vertical 17° DIMENSIONS H: 1048 W: 270 D: 72 mm...
  • Page 17 SCHEMATICS bottom view front view side view rear view top view SL Evolve 1-1 dimension are in mm...
  • Page 18 SCHEMATICS bottom view front view side view rear view top view SL Evolve 2-1 dimension are in mm...
  • Page 19 SCHEMATICS isometric view top view 6mm inserts for wall bracket front view side view rear view SL Evolve 3-1 dimension are in mm...
  • Page 20 SCHEMATICS isometric view top view 6mm inserts for wall bracket front view side view rear view SL Evolve 4-2 dimension are in mm...
  • Page 21 SCHEMATICS isometric view top view 6mm inserts for wall bracket front view side view rear view SL Evolve 6-3 dimension are in mm...
  • Page 22 SCHEMATICS isometric view top view 6mm inserts for wall bracket front view side view rear view SL Evolve 8-4 dimension are in mm...
  • Page 23 SCHEMATICS front view side view rear view isometric view top view SL Evolve 12-6 dimension are in mm...
  • Page 24 SCHEMATICS front view side view rear view isometric view top view SL Evolve 16-8 dimension are in mm...
  • Page 25 SCHEMATICS front view side view rear view isometric view top view SL Evolve 24-12 dimension are in mm...
  • Page 26 Artcoustic Universal Bracket isometric rear view SL Evolve 1-1 Mount bracket to ceiling Mount bracket to speaker with suitable screws Speaker Stand SL Evolve 1-1 Mount stands to speaker with supplied screws OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 27 Artcoustic Universal Bracket isometric rear view SL Evolve 2-1 Mount bracket to ceiling Mount bracket to speaker with suitable screws Speaker Stand SL Evolve 2-1 Mount stands to speaker with supplied screws OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 28 Universal Bracket Mount Artcoustic Universal Bracket Attach bracket mount to Mount Bracket to wall, speaker rear side with suitable screws inserts SL Evolve series Fit speaker on bracket mounted on wall isometric rear view OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 29 3D polar response 2m 16000Hz 6500Hz 2500Hz 1000Hz 90° 90° 120° 60° 120° 60° 150° 150° 30° 30° 0° 0° 180° 180° 360° 360° 330° 330° 210° 210° 240° 240° 300° 300° 270° 270° ARTCOUSTIC LOUDSPEAKERS OWNERS MANUAL – SL EVOLVE SERIES...
  • Page 30 3D polar response 2m 16000Hz 6500Hz 2500Hz 1000Hz 90° 90° 120° 60° 120° 60° 150° 150° 30° 30° 0° 0° 180° 180° 360° 360° 330° 330° 210° 210° 240° 240° 300° 300° 270° 270° OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 31 3D polar response 2m 16000Hz 6500Hz 2500Hz 1000Hz 90° 90° 120° 60° 120° 60° 150° 150° 30° 30° 0° 0° 180° 180° 360° 360° 330° 330° 210° 210° 240° 240° 300° 300° 270° 270° ARTCOUSTIC LOUDSPEAKERS OWNERS MANUAL – SL EVOLVE SERIES...
  • Page 32 flushed in a wall without any use of to walls, these are all technologies which Artcoustic attenuating material around it, probably is the worse successfully have perfected for now more than 20 solution of all of them, as this create some very years.
  • Page 33 At Artcoustic we favour wall mounted speakers, as quality, a problem relatively easily fixed though, the this gives us a much bigger cinema design freedom, exact same way as with flushed speakers, simply...
  • Page 34 final acoustic outcome, speaker and speaker baffle, less sound from rear wall very much depends on speaker type, frequency response and speaker baffle size. OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 35 120W straight line array illustration of a 120W time aligned line array *using Spitfire A6/A4 and smaller Evolve speakers *using larger Evolve speakers illustration of a 120W angled line array *using Spitfire array speakers OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 36 Diagram 3. Diagram 4. Time aligned line array, as seen used with all the Angled line array, as seen used with the Artcoustic larger Artcoustic array speakers. Time aligned Spitfire range. Angled array speakers has the same array speakers has the same advantage as straight...
  • Page 37 PREDICTABLE AND CONSISTENT PERFORMANCE ARTCOUSTIC TIME ALIGNED ARRAY With the Artcoustic Time Aligned Array, we have We have also managed to control the energy output on managed to solve a number of typical array problems, the vertical axis, reducing floor and ceiling reflections,...
  • Page 38 Optimized Dolby Atmos 105dB 102dB 99dB 3m Range 5m Range 7m Range SL EVOLVE 4 2 at 120 Watt (Max Power Handling) Optimized Dolby Atmos 105dB 102dB 99dB 4m Range 5m Range 7m Range OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 39 Optimized Dolby Atmos 105dB 102dB 99dB 6m Range 8m Range 12m Range SL EVOLVE 8 4 at 240 Watt (Max Power Handling) Optimized Dolby Atmos 105dB 102dB 99dB 10m Range 13m Range 19m Range OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 40 100 Watt (Typical Cinema Receiver output) Optimized Dolby Atmos 105dB 102dB 99dB 9m Range 13m Range 19m Range SL EVOLVE 16 8 at 480 Watt (Max Power Handling) Optimized Dolby Atmos 105dB 102dB 13m Range 19m Range OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 41 100 Watt (Typical Cinema Receiver output) Optimized Dolby Atmos 105dB 102dB 15m Range 21m Range SL EVOLVE 24 12 at 720 Watt (Max Power Handling) Optimized Dolby Atmos 105dB 21m Range OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 42 Always use the power supply shipped with this product. Using a power supply with wrong voltage or polarity, can damage the electronics. OWNERS MANUAL – SL EVOLVE SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 43 ∙ For damages caused by incorrect installation, connection or packing. ∙ For damages caused by accidents, lightning, water, fire heat, war, public disturbances or any other cause beyond the reasonable control of Artcoustic and its appointed distributors. ∙ For damages caused by any use other than correct use described in the user manual, negligence, modifications, or use of parts that are not made or authorized...
