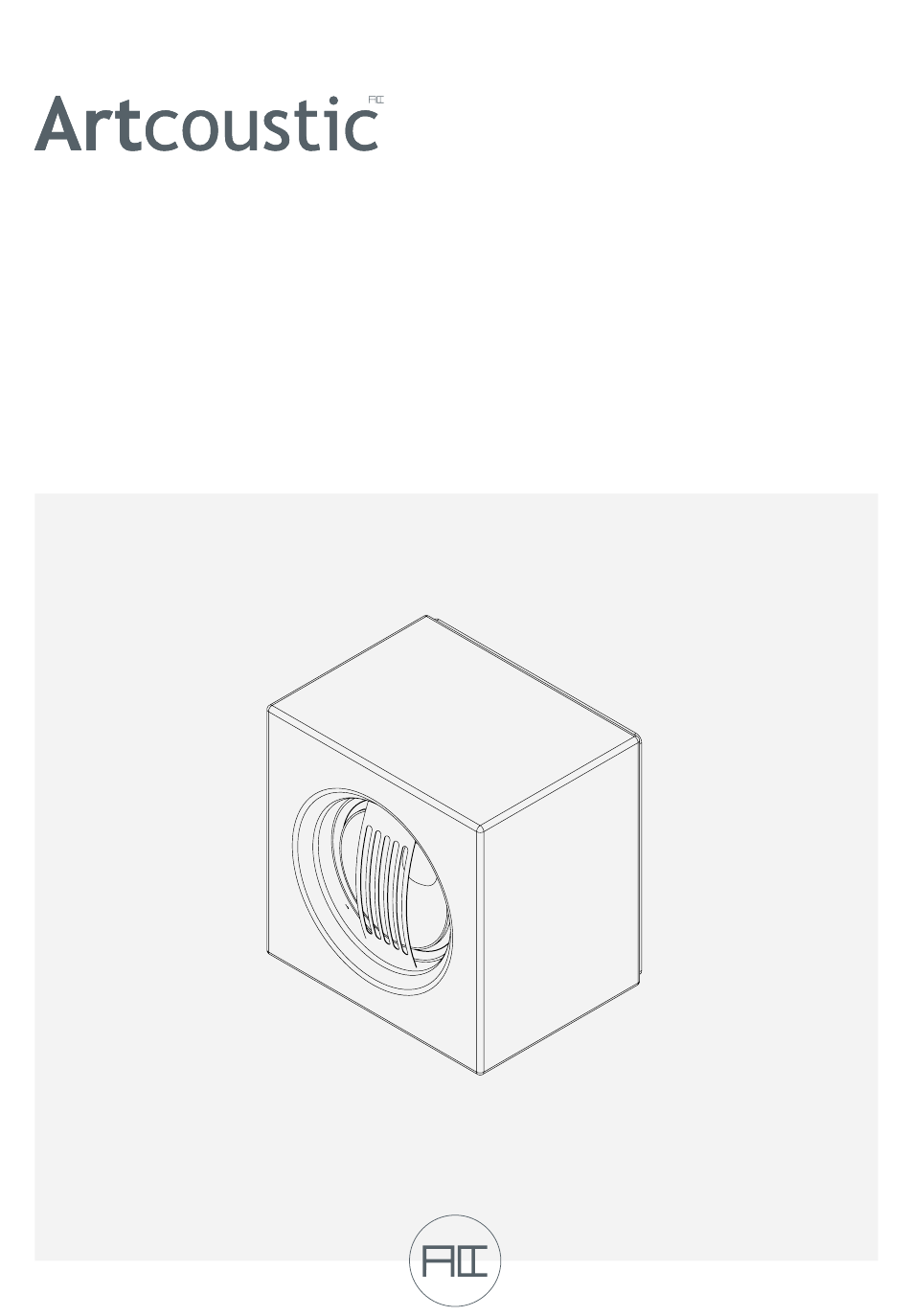

  • Page 1 EVOLVE 1 INDOOR AND OUTDOOR SPEAKER Owners manual...
  • Page 2 Evolve 1 has been The Evolve 1 has been designed to match the designed and engineered for a wide range same tonality as the rest of the Artcoustic of applications, suited for most indoor and range and will especially excel in...

  • Page 3: Components Overview

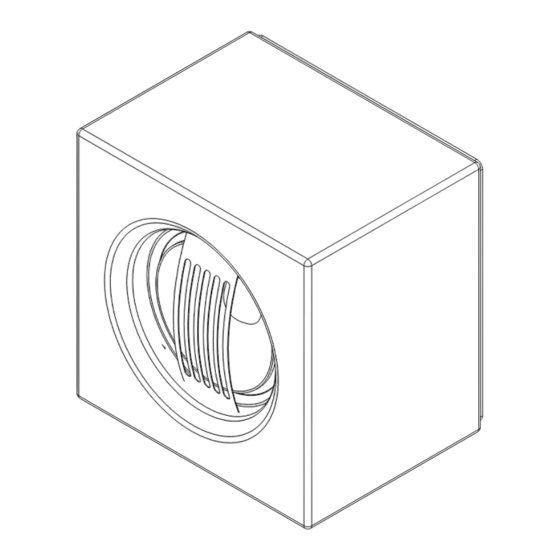

    Evolve 1 front view EVOLVE 1 SPARKLING HIGH FREQUENCY PERFORMANCE The Evolve 1 series excels at the upper end of the frequency spectrum, with a frequency response of up to 20 kHz. Overall, the performance is exemplary with good, articulated mid-range and sparkling high-frequency performance.

  • Page 4: Specifications

    Screen: IP66 standard Black metal grille 30 Watt Input Impedance Nominal 8 ohms NOMINAL BEAM WIDTH Horizontal 90° Vertical 90° DIMENSIONS H: 120 W: 120 D: 98 mm WEIGHT 1 kg OWNERS MANUAL – EVOLVE 1 ARTCOUSTIC LOUDSPEAKERS ARTCOUSTIC LOUDSPEAKERS...
  • Page 5 Screen: IP66 standard Black metal grille 60 Watt Input Impedance Nominal 4 ohms NOMINAL BEAM WIDTH Horizontal 90° Vertical 95° DIMENSIONS H: 262 W: 120 D: 98* mm *depends on angle WEIGHT 2.5 kg OWNERS MANUAL – EVOLVE 1 ARTCOUSTIC LOUDSPEAKERS...
  • Page 6 SCHEMATICS - INDOOR isometric view top view front view side view rear view Evolve 1 Grille Optional and attachable aluminum grille 1 piece shipped with every speaker Evolve 1 Grille bottom view IP66 Power coated metal BLACK Indoor Evolve 1 with grille dimensions are in mm...
  • Page 7 SCHEMATICS - OUTDOOR isometric view top view front view side view rear view Evolve 1 Grille Optional and attachable aluminum grille 1 piece shipped with every speaker Evolve 1 Grille bottom view IP66 Power coated metal BLACK Outdoor Evolve 1 with grille and weather seal dimensions are in mm...
  • Page 8 SCHEMATICS - STAND MOUNTING isometric front view front view side view rear view Evolve 1 Marine grade speaker stand mounting dimensions are in mm...
  • Page 9 SCHEMATICS - GARDEN ROD MOUNTING top view front view side view rear view bottom view Evolve 1 Marine grade Garden Rod mounting dimensions are in mm...
  • Page 10 SCHEMATICS - ARRAY on-wall mounting isometric front view front view side view rear view on-wall mounting isometric back view top view on-ceiling mounting isometric front view front view side view rear view Evolve 1 Array on-wall / on-ceiling Mounting dimensions are in mm...

  • Page 11: Mounting Instructions

    Mount Bracket to wall, with suitable screws isometric rear view side view Evolve 1 Mount speaker to bracket Speaker Stand isometric front view side view rear view Evolve 1 Mount stands to speaker with supplied screws OWNERS MANUAL – EVOLVE 1 ARTCOUSTIC LOUDSPEAKERS...
  • Page 12 MOUNTING INSTRUCTIONS EVOLVE 1 ARRAY Artcoustic Universal Bracket Mount Bracket to wall, with suitable screws inserts isometric rear view Evolve 1 Array Mount bracket to speaker IMPORTANT! Do not overturn washer lock rings detail A scale 1:2 Evolve 1 Array side view OWNERS MANUAL –...
  • Page 13 MOUNTING INSTRUCTIONS GARDEN ROD Garden Rod IMPORTANT! Do not overturn washer detail B scale 1:1 Evolve 1 front view OWNERS MANUAL – EVOLVE 1 ARTCOUSTIC LOUDSPEAKERS...
  • Page 14 200 mm and on rubber feet, in dry or rain from ground covered areas Artcoustic subwoofers ship as IP55 and will have to be placed under a direct rain cover Ideal position for very wet areas and...

  • Page 15: Polar Response

    3D polar response 1m 16000Hz 6500Hz 2500Hz 1000Hz 90° 90° 120° 60° 120° 60° 150° 150° 30° 30° 0° 0° 180° 180° 360° 360° 330° 330° 210° 210° 240° 240° 300° 300° 270° 270° OWNERS MANUAL – EVOLVE 1 ARTCOUSTIC LOUDSPEAKERS...
  • Page 16 PACKAGE EVOLVE 1 SMALL SPACE PACKAGE 25 m Evolve 1 wired in series any Artcoustic subwoofer 1x CPH-Trio 2x Evolve 1 1x Sub Z PERFORMANCE Operating Range 35 Hz (-3dB) to 20 kHz Axial Sensitivity (Half Space SPL) Evolve 1 91 dB | Sub Z 94 dB...
  • Page 17 PACKAGE EVOLVE 1 SMALL-MEDIUM SPACE PACKAGE, EXTENDED FREQUENCY 50 m Evolve 1 wired in parallel (2-2) any Artcoustic subwoofer wired in parallel 1x CPH-Trio 4x Evolve 1 2x Sub Z 1x CPH-1000D PERFORMANCE Operating Range 35 Hz (-3dB) to 20 kHz...
  • Page 18 PACKAGE EVOLVE 1 MEDIUM-LARGE SPACE PACKAGE Evolve 1 wired in parallel (2-2) 100 m Evolve 1 wired in parallel (2-2) any Artcoustic subwoofer wired in parallel (2-2) 2x CPH-Trio 8x Evolve 1 4x Sub Z 1x CPH-1000D PERFORMANCE Operating Range 35 Hz (-3dB) to 20 kHz...

  • Page 19: Safety Instructions

    IMPORTANT! Carefully check all products when unpacked. Do not install any IP-rated products, if speaker surface has been damaged in any ways. OWNERS MANUAL – EVOLVE 1 ARTCOUSTIC LOUDSPEAKERS...

  • Page 20: Warranty

    ∙ For damages caused by any use other than correct use described in the user manual, negligence, modifications, or use of parts that are not made or authorized by Artcoustic. ∙ For colouration or de-colouration caused by weather, or natural outdoor materials ∙...
