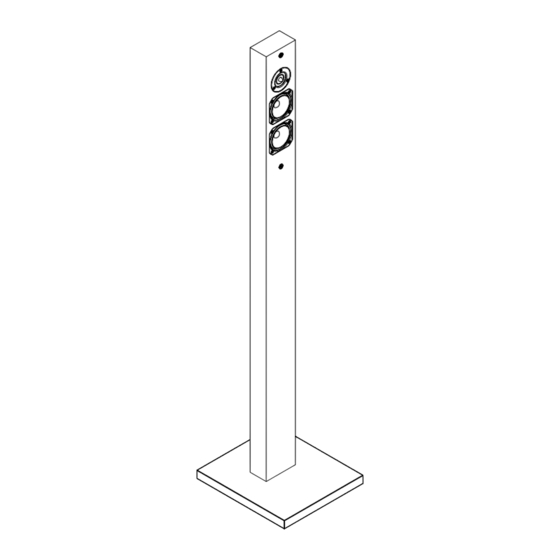

SL ELEVATE
Owners manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SL ELEVATE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Artcoustic SL ELEVATE

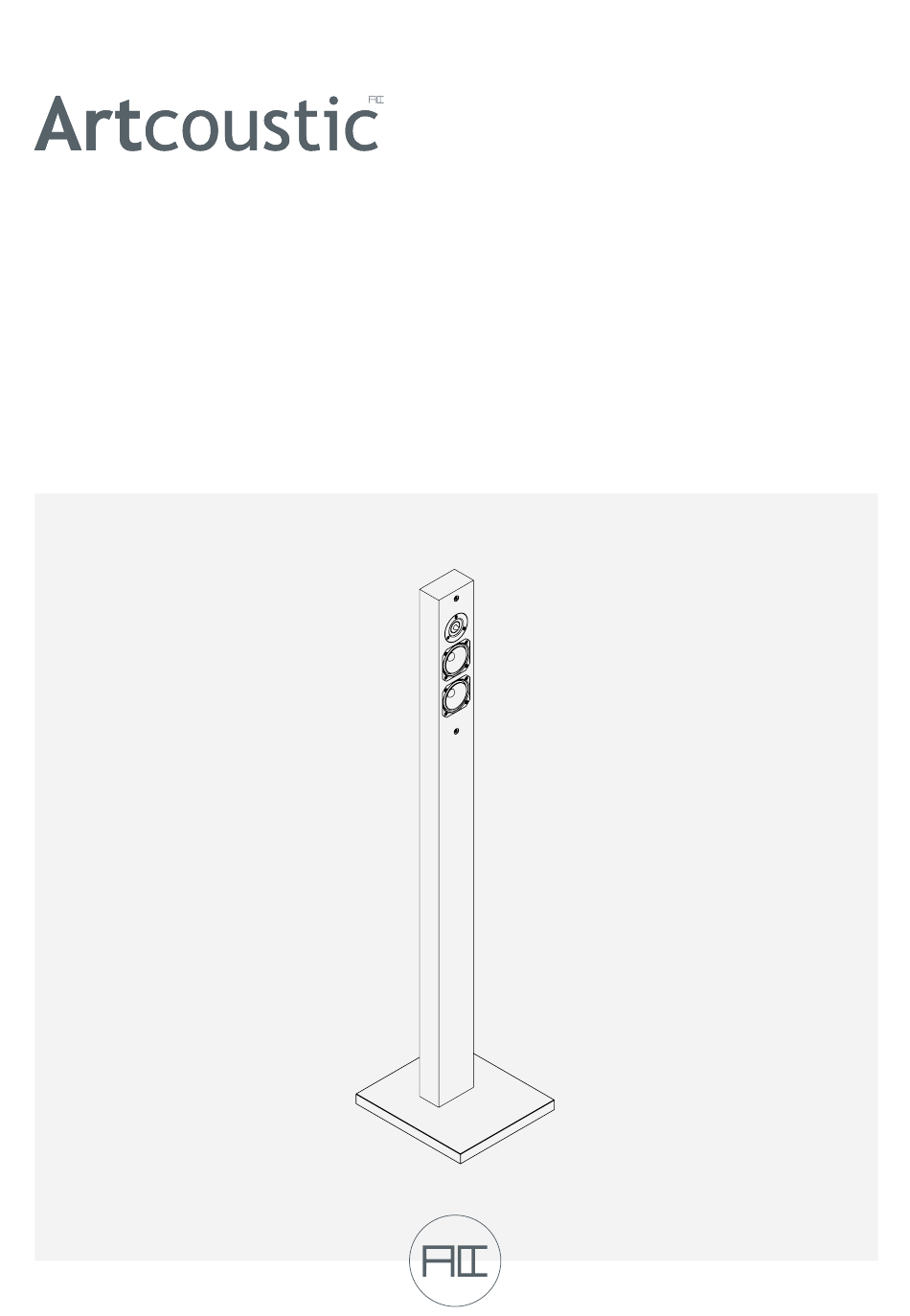

  • Page 1 SL ELEVATE Owners manual...
  • Page 2 Furthermore, the SL Elevate horizontal on axis listening height has been optimised according to the Dolby Atmos specifications. The SL Elevate is designed to work in high quality 2 channels music systems and multichannel home cinemas in conjuction with at least one Artcoustic subwoofers Thank you for purchasing the Artcoustic SL Elevate.
  • Page 3 Choose from a vast range of colour options from NSC and RAL to match your cabinet colour and screen to your interior. Artcoustic has created a true all-rounder, covering most medium SPL applications, where high performance and aesthetics is a focal point.
  • Page 4 Copper caps for with Distortion Reduced Motor. better HF extension and lower distortion and wave-guide center plug, copper-clad aluwire. CROSSOVER 6 dB/octave low pass and 12 dB/octave high pass filter. side view front view OWNERS MANUAL – SL ELEVATE ARTCOUSTIC LOUDSPEAKERS...
  • Page 5 Nominal 4 ohms Recommended High Pass Filter 100 Hz, 24 dB/octave NOMINAL BEAM DESIGN WIDTH Cabinet: Black, White, RAL, NCS Screen: Black, White, RAL, NCS, Artcoustic Art Gallery Horizontal 90° Vertical 90° DIMENSIONS H: 1285 W: 270 D: 300 mm...
  • Page 6 SCHEMATICS rear view side view front view 10.20 rubber feet and spikes fitting top view Elevate SL fabric grille SL Elevate dimension are in mm...
  • Page 7 3D polar response 1 m 16000Hz 6500Hz 2500Hz 1000Hz 90° 90° 60° 60° 120° 120° 150° 150° 30° 30° 0° 0° 180° 180° 360° 360° 330° 330° 210° 210° 240° 240° 300° 300° 270° 270° OWNERS MANUAL – SL ELEVATE ARTCOUSTIC LOUDSPEAKERS...
  • Page 8 Always use the power supply shipped with this product. Using a power supply with wrong voltage or polarity, can damage the electronics. OWNERS MANUAL – SL ELEVATE ARTCOUSTIC LOUDSPEAKERS...
  • Page 9 ∙ For damages caused by incorrect installation, connection or packing. ∙ For damages caused by accidents, lightning, water, fire heat, war, public disturbances or any other cause beyond the reasonable control of Artcoustic and its appointed distributors. ∙ For damages caused by any use other than correct use described in the user manual, negligence, modifications, or use of parts that are not made or authorized...
