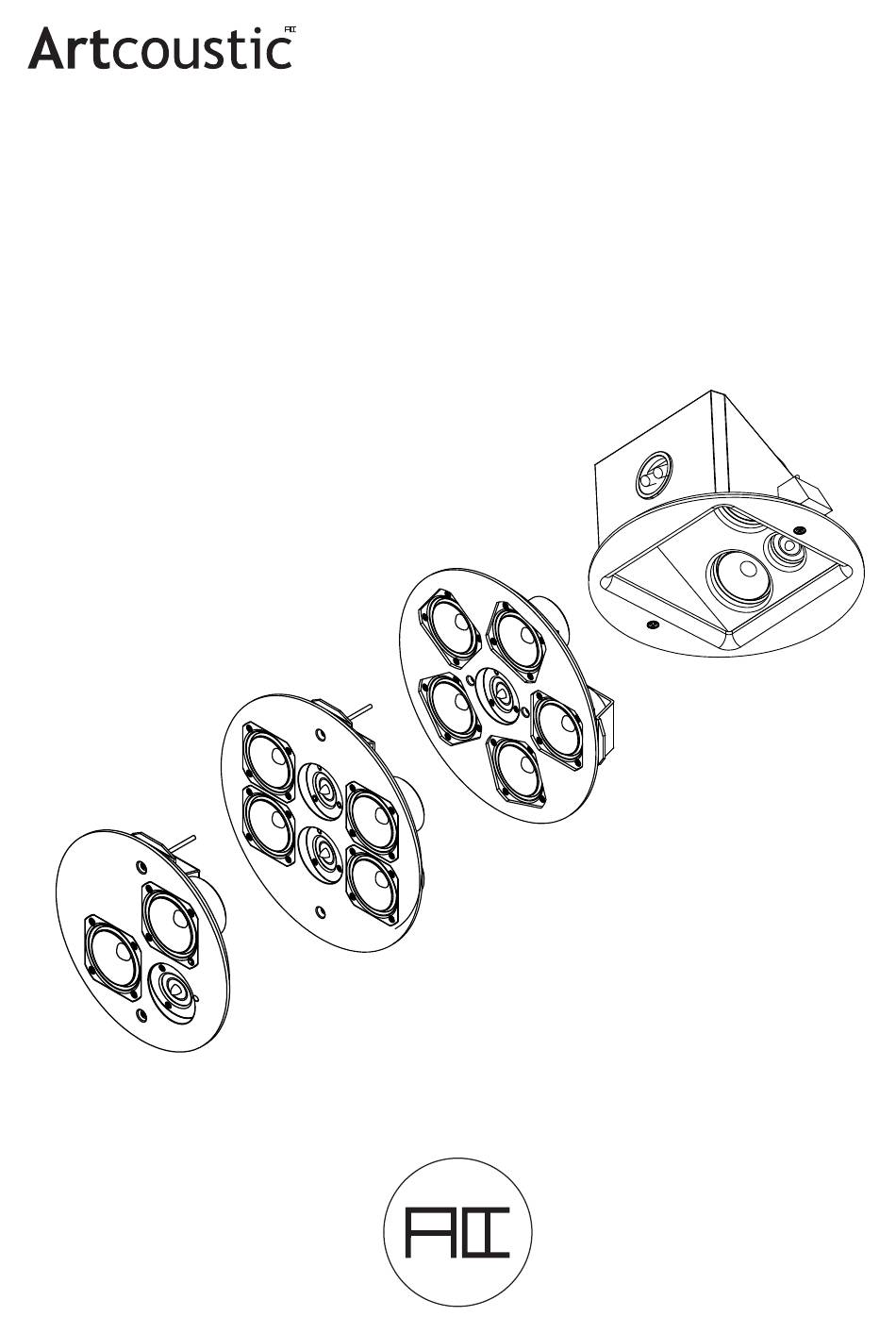

- Page 1 ARCHITECT SL OWNERS MANUAL www.artcoustic.com...
- Page 2 Congratulations with your purchase of the Artcoustic Architect SL In-ceiling speaker. The Architect SL Series is created to provide impressive sound from ultra thin and aesthetically pleasing loudspeakers. The entire Architect line of in-wall/in- ceiling loudspeakers will surprise you. Whether you are looking for true HiFi...

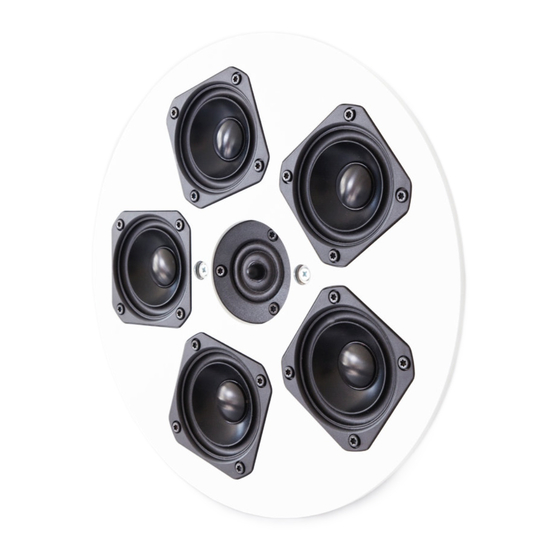

- Page 3 ARCHITECT SL FEATURES High Frequency driver: Dual Ring Radiator diaphragm with highly linear suspension and low loss surrounds for high clarity and clean transient response. Copper caps for better HF extension and lower distortion and wave-guide center plug, copper-clad aluwire. Architect 2-1 SL, Architect 4-2 SL and Architect 3-2-1 SL.
-
Page 4: Specifications
And as well as the perfect choice for Dolby Atmos effect speakers in Artcoustic cinema systems. Couple the Architect 2-1 SL with one of the powerful Artcoustic subwoofers and experience the ultimate sound performance, within the typical Artcoustic reward winning, discrete and aesthetic design. - Page 5 ARCHITECT 2-1 SL SCHEMATICS Terminals Round grille, for in-ceiling and in-wall.
- Page 6 SPECIFICATIONS Specification Architect 4-2 SL Architectural Speaker Transducer: LF-MF 4 x 3 inch cone HF 2 x 1 inch Dual Ring Radiator Crossover: Low Pass Filter 6 dB/octave 1000 Hz High Pass 12 dB/octave 4000Hz Connection: Single or bi- amped Gold Plated Screw Terminals Performance: Operating Range 65 Hz (-3dB) to 40 kHz Nominal Beamwidth Horizontal 90°...
- Page 7 ARCHITECT 4-2 SL SCHEMATICS Stereo or mono terminals Round grille, for in-ceiling and in-wall.
- Page 8 Artcoustic superior quality sound reproduction is expected, all without the need of a subwoofer. The Architect 3-2-1 SL has an impressive operating dynamic range -3dB 45Hz and extend to an impressive upper frequency response at 40kHz.
- Page 9 ARCHITECT 3-2-1 SL SCHEMATICS T erminals Round grille, for in-ceiling and in-wall.
- Page 10 SPECIFICATIONS Specification Architect 2-1 SL PAS Architectural Speaker Transducer: LF-MF 2 x 3 inch cone HF 1 x 1 inch Dual Ring Radiator Crossover: Low Pass Filter 6 dB/octave 1000 Hz High Pass 12 dB/octave 3000Hz Connection: Gold Plated Push Terminals Performance: Operating Range 70 Hz (-3dB) to 18 kHz Nominal Beamwidth Horizontal 60°...
- Page 11 ARCHITECT 2-1 PAS SCHEMATICS Round grille, for in-ceiling and in-wall.
-
Page 12: Safety Instructions
For damages caused by any use other than correct use described in the user manual, negligence, modifications, or use of parts that are not made or authorised by Artcoustic UK Ltd. For damages caused by faulty or unsuitable ancillary equipment For damages caused by accidents, lightning, water, fire heat, war, public disturbances or any other cause beyond the reasonable control of Artcoustic UK Ltd and its appointed distributors.
