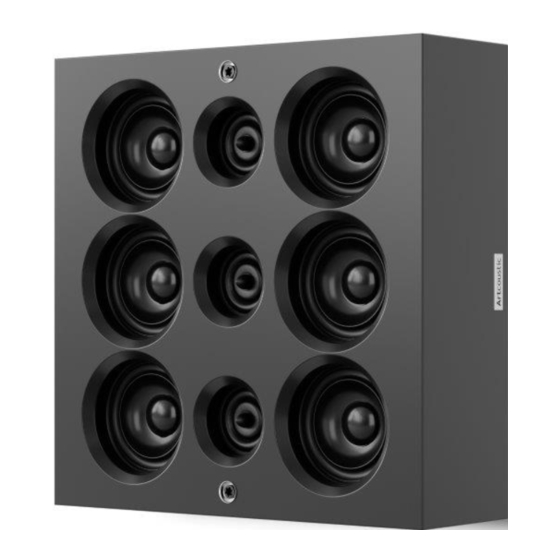

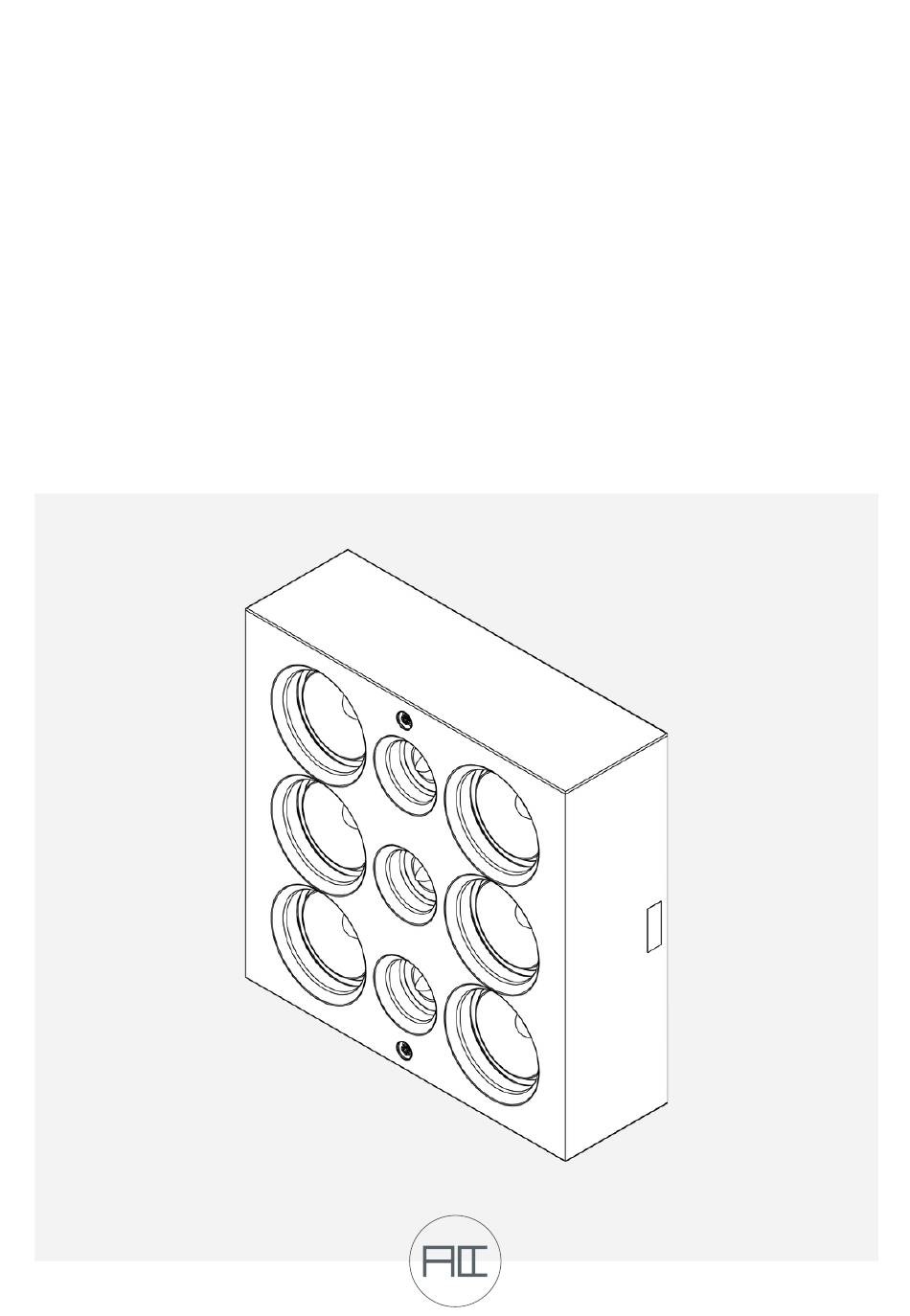

- Page 1 SPITFIRE SERIES Owners manual...
- Page 2 SPL, but discrete professional applications. For an even more impressive performance, partner the Spitfire speakers with one of the powerful Artcoustic subwoofers - an ideal setup for small, medium and large size rooms.
- Page 3 At Artcoustic, our product development team are always looking for innovative and ground-breaking ways to improve our products. We continually invest a huge amount of time and effort to make sure that Artcoustic deliver products at the top of their class, with regards to technological excellence and refined Scandinavian design.
-
Page 4: Components Overview
CROSSOVER Extra long excursion and aluminium Short 6 dB/octave low pass and 12 dB/octave Circuiting Ring, 4-layer voice coil, anodised high pass filler. aluminium for improved heat dissipation, combined with Distortion Reduced Motor. OWNER MANUAL – SPITFIRE SERIES ARTCOUSTIC LOUDSPEAKERS... -
Page 5: Specifications
Short Term (Damage) SPL 200 watt 116 dB Full Space, 119 dB Half Space Ω Recommended High Pass Filter - 100 Hz, 24 dB/octave 8 ohm FINISH Cabinet: Black SL DIMENSIONS H: 210 W: 280 D: 99mm WEIGHT OWNER MANUAL – SPITFIRE SERIES ARTCOUSTIC LOUDSPEAKERS... - Page 6 Short Term (Damage) SPL 300 watt 119 dB Full Space, 122 dB Half Space Ω Recommended High Pass Filter -100 Hz, 24 dB/octave 10 ohm FINISH Cabinet: Black SL DIMENSIONS H: 210 W: 280 D: 99mm WEIGHT 5.5 kg OWNER MANUAL – SPITFIRE SERIES ARTCOUSTIC LOUDSPEAKERS...
- Page 7 Short Term (Damage) SPL 510 watt 122 dB Full Space, 125 dB Half Space Recommended High Pass Filter -100 Hz, 24 dB/octave 5 ohm FINISH Cabinet: Black SL DIMENSIONS According to Array angle WEIGHT 9,5 kg OWNER MANUAL – SPITFIRE SERIES ARTCOUSTIC LOUDSPEAKERS...
- Page 8 Short Term (Damage) SPL 600 watt 124 dB Full Space, 127 dB Half Space Ω Recommended High Pass Filter -100 Hz, 24 dB/octave 6 ohm FINISH Cabinet: Black SL DIMENSIONS According to Array angle WEIGHT 11 kg OWNER MANUAL – SPITFIRE SERIES ARTCOUSTIC LOUDSPEAKERS...
- Page 9 Short Term (Damage) SPL 700 watt 126 dB Full Space, 129 dB Half Space Ω Recommended High Pass Filter -100 Hz, 24 dB/octave 4 ohm FINISH Cabinet: Black SL DIMENSIONS According to Array angle WEIGHT 13,5 kg OWNER MANUAL – SPITFIRE SERIES ARTCOUSTIC LOUDSPEAKERS...
- Page 10 SCHEMATICS isometric view front view side view with screen bottom view right view rear view left view top view Spitfire A4 dimension are in mm...
- Page 11 SCHEMATICS isometric view top view front view left view rear view right view 16.5 speaker input and link out 6mm inserts for wall mount bottom view Spitfire A6 dimension are in mm...
- Page 12 SCHEMATICS 350max 250max front view left view top view 60° Spitfire A10 dimension are in mm...
- Page 13 SCHEMATICS 350max 250max front view left view top view 60° Spitfire A12 dimension are in mm...
- Page 14 SCHEMATICS 300max 250max front view left view top view 60° Spitfire A14 dimension are in mm...
-
Page 15: Mounting Instruction
L scale 2:5 Spitfire A10 ARTCOUSTIC NARROW DISPERSION ARRAY With the Artcoustic Narrow Dispersion Array, we have managed to solve a number of typical problems associated with angled arrays. This has been achieved by placing identical high frequency transducers in a precise, mathematically calculated angled position. - Page 16 2500 80-85 2000 75-80 1600 1250 70-75 65-70 1000 Distance from the array along the central axis (between the two central tweeters) (m). on-axis SPL of the array at distances 0 - 12m OWNER MANUAL – SPITFIRE SERIES ARTCOUSTIC LOUDSPEAKERS...
- Page 17 2500 80-85 2000 75-80 1600 1250 70-75 65-70 1000 Distance from the array along the central axis (between the two central tweeters) (m). on-axis SPL of the array at distances 0 - 12m OWNER MANUAL – SPITFIRE SERIES ARTCOUSTIC LOUDSPEAKERS...
- Page 18 120W straight line array illustration of a 120W time aligned line array *using Spitfire A6/A4 and smaller Evolve speakers *using larger Evolve speakers illustration of a 120W angled line array *using Spitfire array speakers OWNER MANUAL – SPITFIRE SERIES ARTCOUSTIC LOUDSPEAKERS...
- Page 19 Array example: 2 seats elevated. Place Spitfire A6 center screen, aiming at front seat listening height. PArray example: 3 seats elevated. place Spitfire A6 center screen, aiming at center seat 2nd row listening height. OWNER MANUAL – SPITFIRE SERIES ARTCOUSTIC LOUDSPEAKERS...
- Page 20 SPITFIRE A14 ARRAY Array example: multiple seats elevated. Place Spitfire A6 center screen, aiming at center seat. Example 6 rows: aim at 3rd row listening height. Example 8 rows: aim at 4th row. OWNER MANUAL – SPITFIRE SERIES ARTCOUSTIC LOUDSPEAKERS...
-
Page 21: Safety Instructions
Changes or modifications not expressly approved by the power supply with wrong voltage or party responsible for compliance could void the user’s polarity, can damage the authority to operate the equipment. electronics. OWNER MANUAL – SPITFIRE SERIES ARTCOUSTIC LOUDSPEAKERS... -
Page 22: Warranty
∙ For damages caused by incorrect installation, connection or packing. ∙ For damages caused by accidents, lightning, water, fire heat, war, public disturbances or any other cause beyond the reasonable control of Artcoustic and its appointed distributors. ∙ For damages caused by any use other than correct use described in the user manual, negligence, modifications, or use of parts that are not made or authorized...
