Three-Way Architectural Speaker

Owners Manual

www. artcoustic.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Architect SL and is the answer not in the manual?

Questions and answers

Summary of Contents for Artcoustic Architect SL

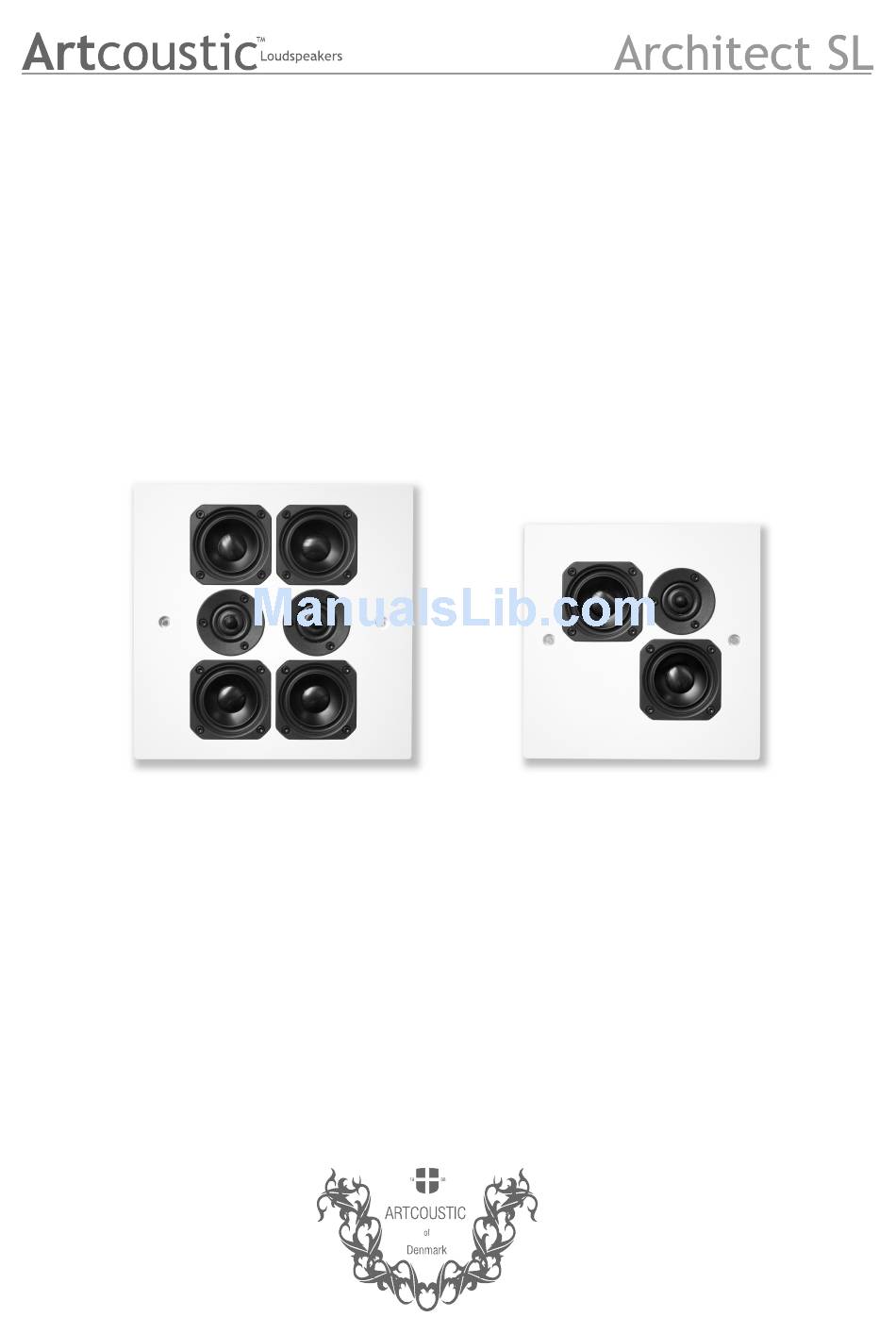

  • Page 1: Owners Manual

    Three-Way Architectural Speaker Owners Manual www. artcoustic.com...
  • Page 2: Components Overview

    Extra long excursion and Aluminum Short Circuiting Ring, 4-layer voice coil, anodized aluminum for improved heat dissipation, combined with Distortion Reduced Motor Architect SL Series - Created to provide impressive sound from ultra thin and aesthetic pleasing Crossover: loudspeakers, the entire Architect line of in-wall/in- 6 dB/octave low pass and 12 dB/octave high pass filter ceiling loudspeakers will surprise you.
  • Page 3 Three-Way Architectural Speaker Specification Architect 2-1 SL Architectural Speaker Transducer: LF-MF 2 x 3 inch cone HF 1 x 1 inch Dual Ring Radiator Crossover: Low Pass Filter 6 dB/octave 1000 Hz High Pass 12 dB/octave 4000Hz Connection: Single amped Gold Plated Push Terminals Performance: - Operating Range 55 Hz (-3dB) to 40 kHz - Nominal Beamwidth Horizontal 90°...
  • Page 4 Architect 2-1 SL Three-Way Architectural Speaker Square cut Round cut Longer screws 90 degree angled grille Facet grille Architect 4-2 SL Three-Way Architectural Speaker Square cut Longer screws 90 degree angled grille Facet grille...
  • Page 5 Architect 2-1 SL with Architect 2-1 SL with 90 degree angled grille facet grille Architect 4-2 SL with Architect 4-2 SL with 90 degree angled grille facet grille www. artcoustic.com...
  • Page 6 Artcoustic Architect mounting method, ceiling thickness max. 18mm. for ceiling plate thickness up to 36mm. use supplied set of longer screws Step 1 Unscrew screw 2 until it slip off the insert and angle mounting bracket Unscrew screw 1 untill max.
