Summary of Contents for Artcoustic SL ARCHITECT Series

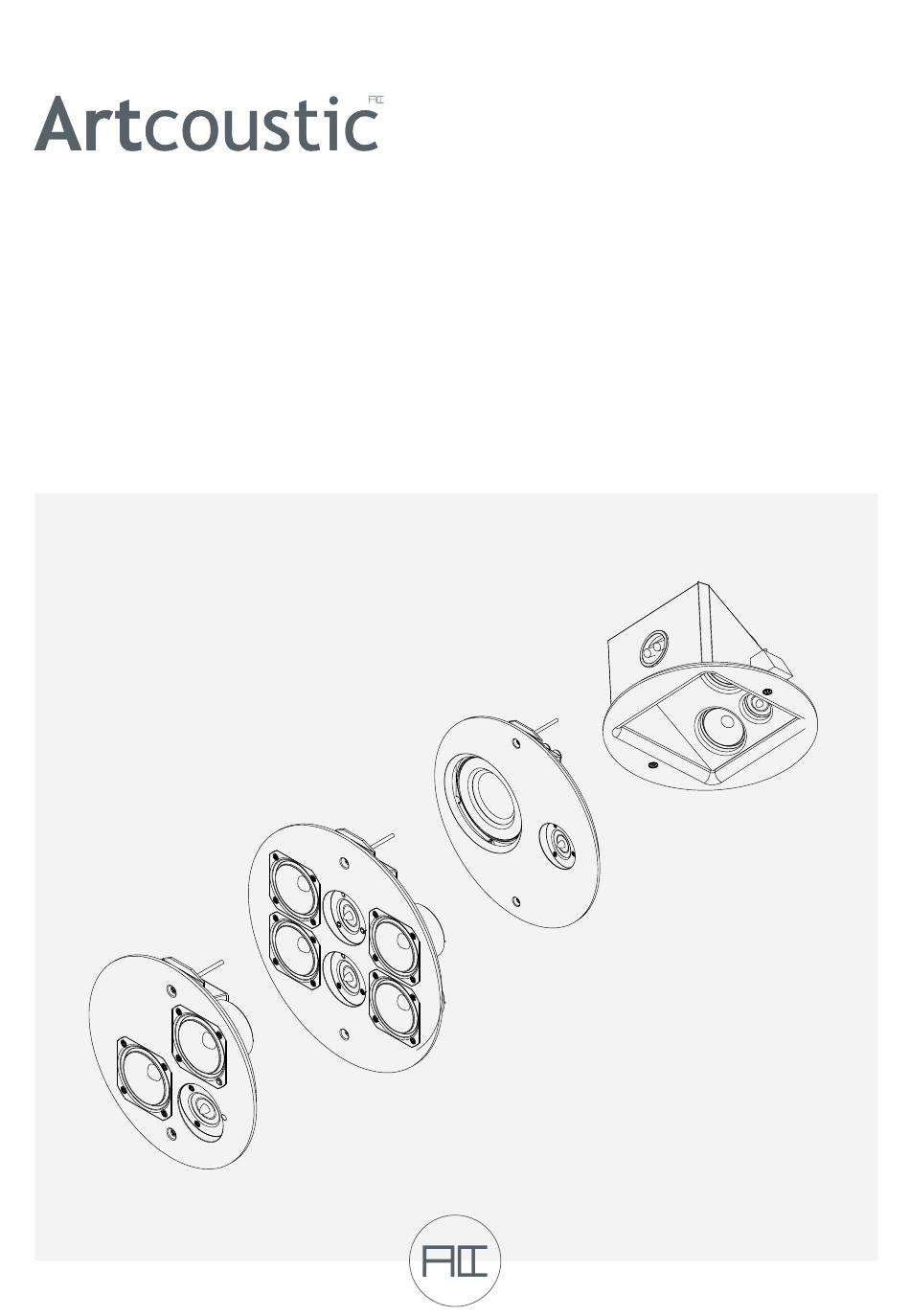

  • Page 1 SL ARCHITECT SERIES Owners manual...
  • Page 2 Artcoustic models, leaving no space for compromise on sound quality and built. The SL Architect series consist of four models, SL Architect 2-1 single source speaker to the larger SL Architect 4-2 single source speaker, the directional single source SL Architect 2-1 PAS and finally...
  • Page 3 SL ARCHITECT 2 1, SL ARCHITECT 4 2, SL ARCHITECT F 1 5 degrees angled tweeters, for controlled directivity and improved off axis response. SL ARCHITECT 2 1 PAS 20 degrees angled, full-range all units. OWNERS MANUAL – SL ARCHITECT SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 4: Mounting Instruction

    MOUNTING INSTRUCTION NEW ARTCOUSTIC IN-CEILING SPEAKER “O” GRILLE MOUNT SYSTEM please follow instructions below align grille holes with mounting screws rotate grille until fixed...
  • Page 5: Specifications

    The smallest model in the in-ceiling line up. SL Architect 2-1 is the perfect solution for multi-room applications, commercial installations, bars, restaurants, hotel H: 240 W: 240 D: 74 mm lobby’s etc. it’s also the perfect choice for Dolby Atmos effect speakers in Artcoustic cinema systems. WEIGHT...
  • Page 6 Recommended High Pass Filter 100 Hz, 24 dB/octave Nominal 4 ohms DESIGN NOMINAL BEAM Cabinet: Black, White, RAL, NCS WIDTH Screen: Black, White, RAL, NCS, Artcoustic Art Gallery Horizontal 90° Vertical 90° DIMENSIONS The SL Architect In-Wall 4-2 is more powerful than the 2-1 and is a single source, high performance speaker, for more demanding applications.
  • Page 7 Recommended High Pass Filter 100 Hz, 24 dB/octave Nominal 4 ohms DESIGN NOMINAL BEAM Cabinet: Black, White, RAL, NCS WIDTH Screen: Black, White, RAL, NCS, Artcoustic Art Gallery Horizontal 60° Vertical 60° DIMENSIONS The SL Architect 2-1 (PAS - Point and Shoot) - is a high SPL, directional,...
  • Page 8 H: 300 W: 300 D: 86 mm dynamic range within a residential solution as in a professional setup, such as bars, restaurants, hotels, or simply anywhere, where the typical Artcoustic superior WEIGHT quality sound reproduction is expected, all without the need of a subwoofer.
  • Page 9 SCHEMATICS isometric view top view front view terminals side view cut dimension Ø 220mm round grille, for in-ceiling and in-wall. rear view SL Architect 2-1 Architectural Speaker dimension are in mm...
  • Page 10 SCHEMATICS isometric view top view side view front view cut dimension Ø 278mm push terminals round grille, for in-ceiling and in-wall. rear view SL Architect 4-2 Architectural Speaker dimension are in mm...
  • Page 11 SCHEMATICS isometric view top view left view front view right view cut dimension Ø 278mm round grille, for in-ceiling and in-wall. rear view SL Architect 2-1 PAS Architectural Speaker dimension are in mm...
  • Page 12 SCHEMATICS isometric view top view front view side view push terminals cut dimension Ø 278mm round grille, for in-ceiling and in-wall. rear view SL Architect F-1 Architectural Speaker dimension are in mm...
  • Page 13: Polar Response

    3D polar response 1m 16000Hz 6500Hz 2500Hz 1000Hz 90° 90° 60° 120° 60° 120° 150° 150° 30° 30° 0° 0° 180° 180° 360° 360° 330° 330° 210° 210° 240° 240° 300° 300° 270° 270° OWNERS MANUAL – SL ARCHITECT SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 14 3D polar response 1m 16000Hz 6500Hz 2500Hz 1000Hz 90° 90° 120° 60° 120° 60° 150° 150° 30° 30° 0° 0° 180° 180° 360° 360° 330° 330° 210° 210° 240° 240° 300° 300° 270° 270° OWNERS MANUAL – SL ARCHITECT SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 15: Safety Instructions

    Always use the power supply shipped with this product. Using a power supply with wrong voltage or polarity, can damage the electronics. OWNERS MANUAL – SL ARCHITECT SERIES ARTCOUSTIC LOUDSPEAKERS...
  • Page 16: Warranty

    ∙ For damages caused by incorrect installation, connection or packing. ∙ For damages caused by accidents, lightning, water, fire heat, war, public disturbances or any other cause beyond the reasonable control of Artcoustic and its appointed distributors. ∙ For damages caused by any use other than correct use described in the user manual, negligence, modifications, or use of parts that are not made or authorized...
