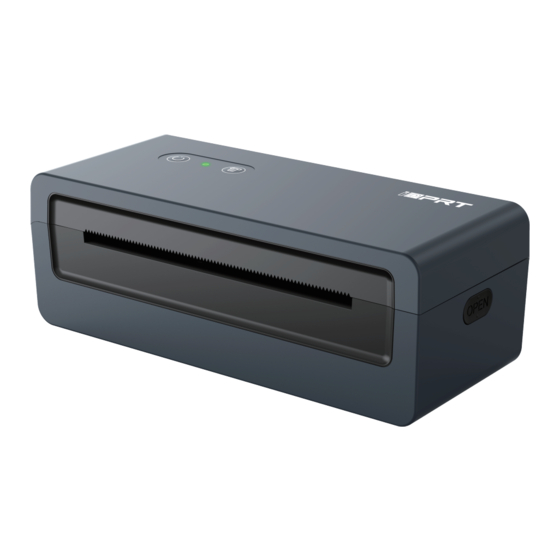

- Page 1 SP460BT User Manual Xiamen Hanin Electronic Technology Co., Ltd. ADD: No.96, Rongyuan Road, Tong'an District, Xiamen, China 361100 Web: www.idprt.com E-Mail idprt@afterservice.vip...
-
Page 2: Table Of Contents
CONTENT IMPORTANT SAFETY INSTRUCTIONS ....................4 CHAPTER 1 INTRODUCTION ......................7 1.1 Packing List ........................7 1.2 Appearance and Components ...................7 1.3 Specifications ........................8 CHAPTER 2 INSTALLATION & USAGE ..................... 10 2.1 Printer Connection ......................10 2.1.1 Power Connection ....................10 2.1.2 USB Connection ....................11 2.2 Fanfold Label Loading ......................12 2.3 Operation Panel .......................13... - Page 3 SP460BT User Manual Statement This manual content may be changed without permission and our company reserve the rights to make changes in technology, spare parts, hardware and software of the products. Please contract our company, if the user needs further information about the products. Without any written permission from our company, any section of this manual is prohibited to be copied or transferred in any form.
-
Page 4: Important Safety Instructions
SP460BT User Manual IMPORTANT SAFETY INSTRUCTIONS Before using the printer, please read carefully the following safety consideration in case of bodily injury or equipment damage. 1.Safety warning The print head will become very hot during printing, please do not touch the printhead and peripheral parts during printing and printing just finished. - Page 5 SP460BT User Manual • After the disappearance of the smoke, call your dealer to repair it. 2) Install the printer on the stable surface. • If the printer falls, it may be broken and you may hurt yourself. 3) Use the approved accessories only and do not try to disassemble, repair or remodel it by yourself.
- Page 6 SP460BT User Manual 3.Other Precautions The copyright for this user manual and various other manuals is property of our company. Any copying or conversion into electronic form and saving of this material without the express written permission is strictly prohibited. Use of the information contained in this manual is not subject to any patent liability.
-
Page 7: Chapter 1 Introduction
SP460BT User Manual CHAPTER 1 INTRODUCTION 1.1 Packing List Unpack the printer and keep the packing materials in case you need to ship the printer in the future. Any damages exist, please contact the local dealer. ■Standard Note ： The packing materials are based on the order. -
Page 8: Specifications
SP460BT User Manual 1.3 Specifications Items Parameter Printing method Direct thermal Resolution 203dpi(8dots/mm) Printing speed Printing Max 100mm/s Printing width 40-108mm Printing length 25mm - 300mm Processor 32 bits RISC CPU Memory Flash Paper out detection, seam label detection, black... - Page 9 SP460BT User Manual Items Parameter Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add Barcode on 2 & 5), I 2 of 5, Codabar, Code 128 (subset A, B, C) QR Code Communication Interfaces USB，Bluetooth FEED button，...
-
Page 10: Chapter 2 Installation & Usage
SP460BT User Manual CHAPTER 2 INSTALLATION & USAGE 2.1 Printer Connection 2.1.1 Power Connection 1. Confirm that the printer power is turned off. 2. Connect the power adapter to the printer and the power cord. 3. Connect the other end of the power cord to a nearby socket. -
Page 11: Usb Connection
SP460BT User Manual 2.1.2 USB Connection Connect the USB cable to the printer and PC. -
Page 12: Fanfold Label Loading
SP460BT User Manual 2.2 Fanfold Label Loading ■ Folding Paper Loading 1. Turn the power on, adjust the paper guide to fit the width of paper. 2. Insert the paper into the entry slot. The paper will be inhaled into the path automatically. -
Page 13: Operation Panel
SP460BT User Manual 2.3 Operation Panel Power Button Press it and hold for one second to turn on. Press it quickly for 3 secornds to turn off. Feed Button 1) Press the feed button, the printer sends the paper out to the specified position depending on the type of paper used. -
Page 14: Chapter 3 Maintenance & Adjustment
SP460BT User Manual CHAPTER 3 MAINTENANCE & ADJUSTMENT Adhesives and coatings of the media can transfer to the printer parts over time along the media path including the thermal print head and media sensor. This build-up can accumulate dust and debris. -
Page 15: Chapter 4 Label Printer Utility Instructions
SP460BT User Manual CHAPTER 4 LABEL PRINTER UTILITY INSTRUCTIONS 4.1 Installation Preparation Download the utility application in USB flash disk. 4.2 Usage Note: the following takes Windows 7 operating system for example, which may vary depending on the operating system on your computer. - Page 16 SP460BT User Manual 3.Add/Modify/Delete Printer, Connect Test. ●Click “Modify Printer”. Choose the printer and port (e.g. USB), then click “OK”, showed in “Printer List”. ●Click “Delete Printer”. Click “OK” to delete the printer and click “Cancel” to cancel the command.
- Page 17 SP460BT User Manual ●Click “Connect Test” to test whether the connection is successful or not. If connection succeeds, it shows as follows. If connection fails, it shows as follows. Note: 1) Please connect your printer to power firstly, choose one port (depend on the printer you bought) to connect to the PC.
- Page 18 SP460BT User Manual 4.Function. ●Click “Printer Information”, showing printer information. (varies by different printers) ●Click “Print Test Text”. Type the text. Click “Print”, then printer starts to print the test text.
- Page 19 SP460BT User Manual ●Click “Parameter Setting”. User can set up the density, paper mode and so on.
- Page 20 SP460BT User Manual 1) Print density (choose range:0~15): 2) Heat Adjust...
- Page 21 SP460BT User Manual 3) Paper Mode (Gap, Continuous, Black Mark): 4) Print Speed (choose range:2~6):...
- Page 22 SP460BT User Manual 5) Codepage: 6) Click “Set” and back to the main menu. ●Click “Restore Factory Settings”. Click “OK” to restore factory settings and click “Cancel” to cancel the command. 5.Click “Quit”, and finish printer settings.
-
Page 23: Chapter 5 Windows Driver Instruction
SP460BT User Manual CHAPTER 5 WINDOWS DRIVER INSTRUCTION 5.1 Installation Preparation Download Windows Driver application in USB flash disk. 5.2 Installation Warning: There are some differences under different operating system. Please operate it according to the tips. Recommend to close security software before installation in case of preventing installation. - Page 24 SP460BT User Manual 5. Select operation of install, then click “Next”. 6. Click “Finish”.
-
Page 25: Usage
SP460BT User Manual 7.After installation, the icon will be found in “Start” → “Devices and Printers”. Note: If you have already installed the driver (No matter what kind of ports), it will generate a USB port automatically when connecting the printer to computer. - Page 26 SP460BT User Manual 2.According to different needs, set the page.
- Page 27 SP460BT User Manual ●Click “Paper Name”, then choose the paper type.
- Page 28 SP460BT User Manual ●Click “Custom” to add a new stock.
- Page 29 SP460BT User Manual ●Choose “Rotate” or “Effect”, it will be showed in the “Preview”.
- Page 30 SP460BT User Manual ●Click “Advanced” to set “Save Paper”, “Density”, “Speed”, “Test”, “Media Type”. 1) Save Paper 2) Density...
- Page 31 SP460BT User Manual 3) Speed 4) Test...
- Page 32 SP460BT User Manual 5) Media type...
- Page 33 SP460BT User Manual 3.Click “Watermark”, it recommends to use BMP format.
- Page 34 SP460BT User Manual 4.Click “Halftone”.
-
Page 35: Printer Properties
SP460BT User Manual 5.3.2 Printer Properties 1.Click “Start” → “Devices and Printers”. Right click the icon and choose “Printer properties”. - Page 36 SP460BT User Manual 2.Click “General” → “Print Test Page”, and printer will print labels with current settings.
- Page 37 SP460BT User Manual 3.Click “Ports”, then choose the port needed. E.g. Configure the port to Serial Port. 1) Choose the Srial Port (COM1), click “Configur Port”.
- Page 38 SP460BT User Manual 2) After opening the “Configure Port”, you can view the port data by printing the self-test page and and change the information on the "port setting"(as shown in the picture) to the same port data on the self-test page. After the modification, click "OK"...
- Page 39 SP460BT User Manual 4.Click “Advanced” to set the available time for the printer.
-
Page 40: Removing
SP460BT User Manual 5.4 Removing Note: Please turn off the printer or unplug the USB cable before removing the driver. 1.Double click Windows Driver. 2.Choose “Uninstall printer driver”, then click “Next”. - Page 41 SP460BT User Manual 3.Choose the printer driver name needed to uninstall, then click “Next”. 4.Click"Yes".
-
Page 42: Chapter 6 Mac Driver Instruciton
Download the Mac Driver application in www.idprt.com. 6.2 Driver Installation for macOS Warning: Under different operating system, the screen has slight difference. Please operate it according to the tips. Take SP460BT (macOS 10.15) as example. 1. Double click the Driver, click “Continue”. - Page 43 SP460BT User Manual 2. Select installation type and click “Continue”.
- Page 44 SP460BT User Manual 3. Click “Install”.
- Page 45 SP460BT User Manual 4. Type in the password of your computer. 5.The installation was successful.
- Page 46 SP460BT User Manual 6. Turn on the printer and connect it to your computer (for example: via USB cable) 7. Click: Launchpad -> System Preferences -> Printers & Scanners. 8. Under “Printer & Scanner”, printer SP460BT is available.
