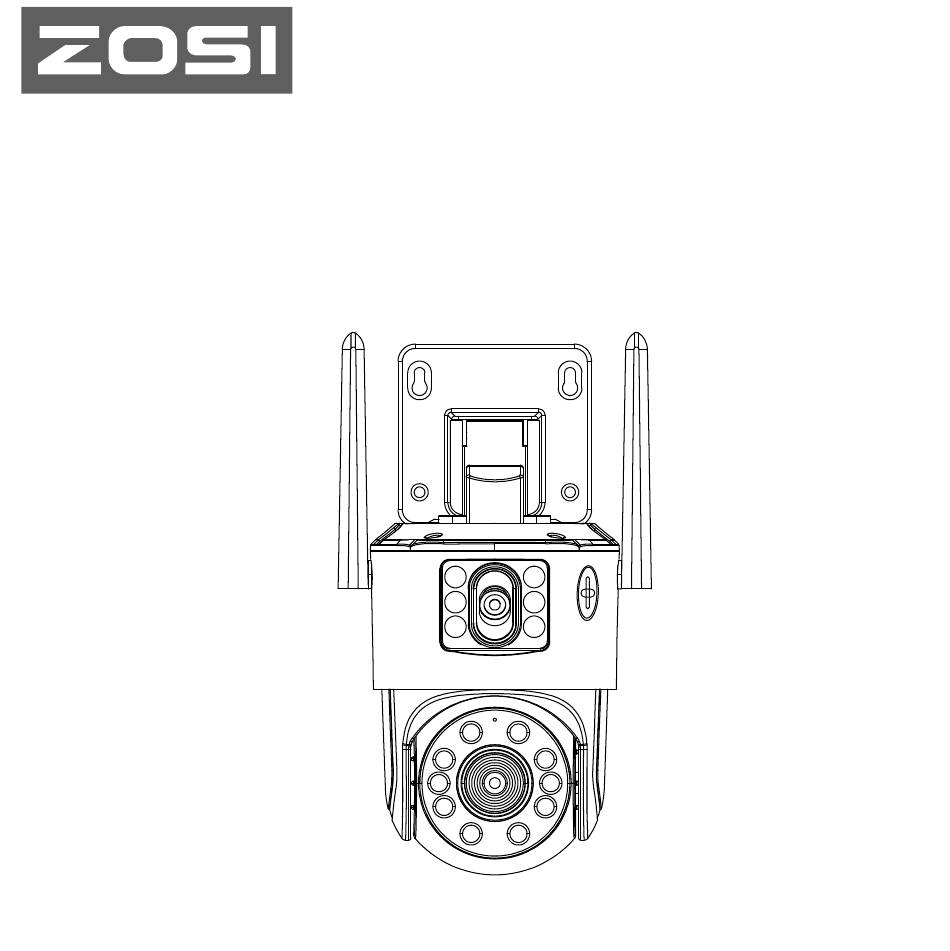

V2.I.02.Z Quick Start Guide Smart IP Camera This guide will get you going with your camera. For more information, please visit our official website: www.zositech.com...
Page 2
Contents The electronic user manual can be viewed on your mobile devices by scanning the QR code using a browser or camera.
Page 3
• The product should not be immersed in water. It is recommended to install it in a concealed location. • Unauthorized audio recording may be illegal in certain jurisdictions. ZOSI assumes no responsibility for any use of the product that violates local laws.
What’s in the Box Camera Power Adapter Mounting Screws Quick Start Guide Warning Stickers Mounting Templates Quick Start Guide Waterproof Lid NOTE: Actual accessories are subject to the model you purchased. 2 - English...
App/Client Installation Smartphone Search Zosi Smart in App Store or scan the QR Code to download and install the App. Follow the instructions to register an account. Android/IOS Zosi Smart Download and install the AVSS client on your computer, and follow this guide to finish the installation.
Page 8
6. When you hear “Wireless Configuration Succeed”, tap Next and confirm. On the “Wireless connection succeed” page tap “Finish”. The device is successfully added to the App. NOTE: If the device cannot be added successfully, please reset the device. Press and hold the device's reset button for 5 seconds, then follow the above steps to re-add the device.
Install the Camera Installation Precautions • Do not face the camera to any light source. • Do not point the camera at glass windows or reflective objects. Otherwise, it may result in poor image performance due to reflections from infrared LEDs, ambient lights or status lights. •...
Page 10
3. Install the top bracket of the camera to the base and tighten the knob of the camera bracket. 4. To adjust the camera direction, you may control the camera to pan and tilt via Zosi App or Client. ③...
Page 11
3. Install the top bracket of the camera to the base and tighten the knob of the camera bracket. 4. To adjust the camera direction, you may control the ② camera to pan and tilt via Zosi App or Client. ③ The camera installation video is as follows: ④...
Page 12
Installation Distance, Height and Angle Distance: Best accuracy for objects within 5-50 ft (1.5-15 m). Angle: Tilt the camera down about 30°-60° from the horizontal position. Height: Install the camera 8-16 ft (2.5-5m) above the ground. 10 - English...
Page 13
Q: Does the camera support motion detection and image capture? • The camera automatically captures images when it detects people, cars, or any changes in the detected image. • Users can also manually capture images using the Zosi Smart App. 11 - English...
(2) This device must accept any interference received, including inference that. may cause undesired operation. Simplified EU Declaration of Conformity ZOSI declares that the device is in compliance with the essential requirements and other relevant provisions if Directive 2014/53/EU. Correct Disposal of this Product This marking indicates that this product cannot be disposed with other household wastes throughout the EU.
Precauciones de seguridad (especificaciones de uso) • Lea atentamente este manual y consérvela. • Siga todas las instrucciones para un uso y manipulación seguros del producto. • Utilice la cámara dentro de los límites de temperatura, humedad y voltaje especificados y utilice los accesorios aprobados por el fabricante. •...
Lista de empaque Cámara Adaptador de corriente Tornillos de montaje Quick Start Guide Plantilla de advertencia Plantilla de montaje Manual de operación Tapa impermeable Nota: Los accesorios varían por diferentes modelos, por favor consulte el producto específico. 14 - Español...
Page 17
Introducción de la cámara Botón de ajustar lente Lente de cámara bala Luz blanca Luz infrarroja Micrófono Lente de cámara domo Luz infrarroja Luz blanca 15 - Español...
Page 18
Luz indicadora Antena Altavoz Ranura para tarjeta SD + Botón Reset Nota: El aspecto del producto se varía por diferentes modelos, por favor consulte el producto específico. 16 - Español...
Acceso a la cámara a través de teléfono móvil o PC Teléfono móvil Busque la aplicación Zosi Smart en la tienda de aplicaciones o escanee el siguiente código QR para descargar la App. Luego cree una cuenta de acuerdo a las indicaciones.
Page 20
6. Cuando oiga la indicación de voz "Wireless Configuration Succeed”, toque "Siguiente". Si oye "Wireless Connection Succeed", toque "Hecho" y finalice los pasos de conexión. Nota: Si falló al añadir el dispositivo a la aplicación, por favor reinicie la cámara manteniendo pulsado el botón Reset durante 5 segundos.
Page 21
Instalación de la cámara IP Precauciones de instalación • No dirige la cámara hacia fuente de luz. • No dirige la cámara hacia vidrios, ventanas u objetos reflectantes, se afectará el rendimiento de la imagen debido a los reflejos de las luces infrarrojas, las luces ambientales o las luces indicadoras. •...
Page 22
2. Fije la base de la cámara con los tornillos. 3. Coloque el soporte de la parte superior de cámara a la base, y fije el soporte con los tornillos. 4. Puede ajustar el ángulo horizontal y vertical de la cámara en la aplicación Zosi Smart. ③...
Page 23
3. Coloque el soporte de la parte superior de cámara a la base, y fije el soporte con los tornillos. 4. Puede ajustar el ángulo horizontal y vertical de la ② cámara en la aplicación Zosi Smart. ③ Video de la operación de instalación: ④...
Page 24
Ambiente de la instalación Distancia: la mejor precisión para objetos dentro de 5-50 pies (1,5-15 m). Ángulo: incline la cámara hacia abajo unos 30°-60° desde la posición horizontal. Altura: instale la cámara entre 2,5 y 5 m (8 y 16 pies) sobre el suelo. 22 - Español...
Page 25
Q: ¿La cámara soporta la detección de movimiento y la captura de imágenes? Capturará imágenes automáticamente cuando se detectan personas, vehículos o cuando el objetivo detectado mueve. Los usuarios también pueden capturar imágenes manualmente en la aplicación Zosi Smart. 23 - Español...
Page 26
(2) Este dispositivo debe aceptar cualquier interferencia recibida, incluidas las inferencias que puedan provocar una operación no deseada. Declaración de Conformidad de UE Simplificada ZOSI declara que el dispositivo cumple con los requisitos esenciales y otras disposiciones relevantes de la Directiva 2014/53/UE. Eliminación Correcta de este Producto Esta marca indica que este producto no se puede desechar con otros residuos domésticos en toda la UE.
