Instruction Manual

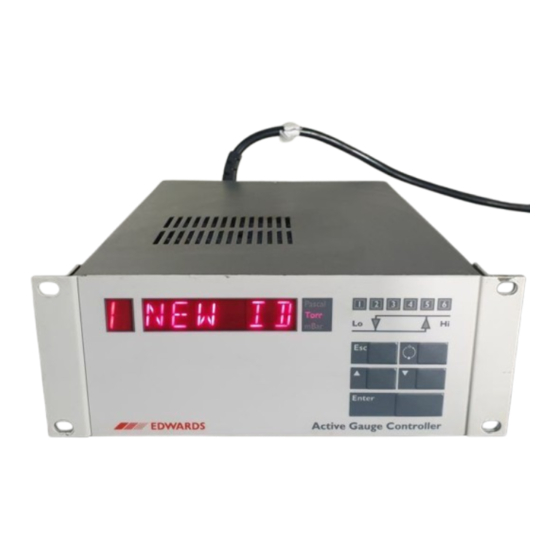

Active Gauge Controller
RS232 Option
This is supplementary to the Active Gauge Controller Instructions D386-55-880
De scrip tion
AGC-SINGLE DISP, RS232, 3 HEAD
AGC-SINGLE DISP, RS232, 6 HEAD
AGC-SINGLE DISP, RS232, CM VER
AGC-TRIPLE DISP, RS232, 3 HEAD
AGC-TRIPLE DISP, RS232, 6 HEAD
AGC-TRIPLE DISP, RS232, CM VER
Manor Royal, Crawley, West Sussex, RH10 2LW, UK
Telephone: +44 (0) 1293 528844 Fax: +44 (0) 1293 533453
http://www.bocedwards.com
Item Number
D386-52-000
D386-51-000
D386-50-000
D386-62-000
D386-61-000
D386-60-000
idealvac.com
(505)872-0037
idealvac.com
D386-52-880
Issue M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Active Gauge Controller and is the answer not in the manual?

Questions and answers

Related Manuals for Edwards Active Gauge Controller

Summary of Contents for Edwards Active Gauge Controller

  • Page 1 D386-52-880 Issue M Instruction Manual Active Gauge Controller RS232 Option This is supplementary to the Active Gauge Controller Instructions D386-55-880 De scrip tion Item Number AGC-SINGLE DISP, RS232, 3 HEAD D386-52-000 AGC-SINGLE DISP, RS232, 6 HEAD D386-51-000 AGC-SINGLE DISP, RS232, CM VER...

  • Page 2: Table Of Contents

    CON TENTS Sec tion Ti tle Page IN TRO DUC TION Scope of this man ual Gen eral TECH NI CAL DATA IN STAL LA TION Gen eral RS232 con nec tions Three-wire con nec tion Con nec tion to an IBM com pati ble com puter Hard ware con trol sig nals OP ERA TION Gen eral...

  • Page 3: Ti Tle

    Sec tion Ti tle Page AP PEN DIX A In ter faces and con nec tions. AP PEN DIX B RS232 comms. menu AP PEN DIX C RS232 se rial port er rors Printer mode (MODE 0) er rors Query com mand er rors AP PEN DIX D Que ries List of que ries...

  • Page 4: In Tro Duc Tion

    Active Gauge Controller general operating instructions D386-55-880. Gen eral The Edwards Active Gauge Controller (AGC) RS232 option allows the AGC to be interfaced to a micro-computer or data acquisition system via a serial RS232 communications link. The RS232 communications protocol is set up (and monitored) via a menu tree structure. You move through the menu with simple keystroke combinations entered from the front panel.

  • Page 5: In Stal La Tion

    The installation instructions are listed in Section 3 of D386-55-880. The electrical supply and all other connections to the active gauge controller are through the rear panel shown in Figure 1. The RS232 option serial port, internal relay expansion board and gauge channel expansion board are all shown.

  • Page 6: Rs232 Con Nec Tions

    Connection to the RS232 port is through a 9-way female D-type socket fitted on the rear panel of the AGC. If an IBM compatible computer is to be used then an Edwards RS232 cable may be used to connect the AGC to the computer (refer to section 7.1).

  • Page 7: Con Nec Tion To An Ibm Com Pati Ble Com Puter

    Con nec tion to an IBM com pati ble com puter Figure 3 shows how to connect the active gauge controller to an IBM compatible computer. Figure 3 - AGC/IBM computer interface Hard ware con trol sig nals If speed of transmission or slow response time for the external equipment cause communication problems, use the two hardware control signals CTS and DTR in addition to the three wire system described above.

  • Page 8: Op Era Tion

    OP ERA TION Gen eral It is important that you read these instructions in conjunction with the active gauge controller general instructions D386-55-880. RS232 se rial com mu ni ca tions The active gauge controller RS232 option is supplied with an RS232 serial communications port to allow interfacing with other equipment.

  • Page 9: Printer Mode

    Selecting PROTCL allows access sequentially to the BAUD, PAR and STOP sub menus. Note that the number of data bits is fixed at 8. Select PROTCL and press ENTER, the display reads BAUD X where X is a number 1-8 corresponding to the current baud rate setting as follows: Baud Rate 1200 2400 4800 9600 19200 Press ENTER, to retain the setting, this moves to the second sub menu...
  • Page 10 When in printer mode, gauge information is automatically transmitted at an interval set in the RATE menu. This information may be be printed out on a serial printer, or logged directly onto a computer for storage and analysis. The information consists of a block of data divided into lines (one for each gauge channel in use).

  • Page 11: Query - Com Mand Con Trol Mode

    Printer mode example: 1 = APG M 1.2E-3 MB RATE = CONTIN 2 = ASG 1.015E+3 MB RATE = CONTIN 3 = TURBO 5.00E+1 % RATE = CONTIN 1 = APG M 1.2E-3 MB RATE = CONTIN 2 = ASG 1.015E+3 MB RATE = CONTIN 3 = TURBO 5.00E+1 % RATE = CONTIN...

  • Page 12: Agc Re Plies To Que Ries And Com Mands

    AGC Re plies to que ries and com mands When a query or command is received by the AGC, a reply is always returned on the serial link. The replies sent by the AGC are text messages - sequences of ASCII coded characters terminated by two control characters CR, LF (ASCII chars 13, 10).
  • Page 13 Prob lem: Non- functional Printer mode Check the printer itself (on-line, paper). Check the connecting lead. Check the hardware control signals (if used). Check correct programming of AGC (COMMS menu) i.e. system is in Printer mode, baud rate, parity, stop bits and cycle rate are programmed as required. If double line spacing appears on printout, disable printer feature which adds an LF every time it gets a CR, as this is transmitted by the AGC.

  • Page 14: Main Te Nance

    MAIN TE NANCE See Section 5 , AGC general instructions D386-55-880. STOR AGE AND DIS POSAL There are no special requirements for storage or disposal of the active gauge controller RS232 option. AC CES SO RIES and SPARES Ca bles...

  • Page 15: Interfaces And Connections

    APPENDIX A Interfaces and connections RS 232 9 pin con nec tor ALLOCATION Chassis 0 Volts No connection No connection Ac tive Gauge Con trol ler RS232 Op tion...

  • Page 16: Rs232 Comms Menu

    APPENDIX B RS232 comms menu Refer to AGC operating instructions D386-55-880 Appendix B for description of symbols used. Ac tive Gauge Con trol ler RS232 Op tion...

  • Page 17: Rs232 Serial Port Errors

    APPENDIX C - RS232 Serial port errors Ap pen dix C1 Printer mode (MODE 0) er rors ERROR MESSAGE REASON Gauge switched off or Auto gauge off SRKING AIM gauge striking AC ERR Auto gauge fault Unknown gauge type ‘ ‘ Unclassified error ID ERR Gauge type error...

  • Page 18: C2 Query Com Mand Er Rors

    Appendix C2 Query com mand er rors ERROR NUMBER REASON No error 1 .. 10 Query command errors Not a valid query or command word Number(s) not found - needed as part of query or command Number(s) not in valid range - too large No ? at start of query No ! at start of command Not a valid word for a query (valid only for...
  • Page 19 ERROR NUMBER REASON Wrong gauge type - e.g. try to set type of gauge when that gauge does not have different types. 15 .. 200 Reserved words 201 .. 219 Gauge pressure voltage errors Gauge switched off Auto gauge off Ion gauge degassing AIM gauge striking CAPMAN over range...
  • Page 20 ERROR NUMBER REASON Unclassified gauge error WRG Pirani failure WRG Inverted Magnetron short circuit WRG striker filament broken WRG Inverted Magnetron not struck APGX filament broken APGX calibration error APGX-H tube not fitted AIGX emission error AIGX over range 230 .. 254 Reserved errors BIOS system error Ac tive Gauge Con trol ler RS232 Op tion...

  • Page 21: Que Ries

    AP PEN DIX D Que ries In the lists that follows, the expression {a..b} means a number in the range a to b inclusive. For example: DEFINITION: ?AC {1..6} CORRECT: ?AC 1 INCORRECT: ?AC 16 Ap pen dix D1 List of que ries QUERY MNEMONIC SYNTAX...
  • Page 22 QUERY MNEMONIC SYNTAX REPLIES EXAMPLE GaugeVersion ?GV 1 ?GV{0..6} {0..21} GaugesWitch ?GW 3 ?GW{1..6} {0..1} iongaugeHeaD ?HD 5 ?HD{1..6} {1..2} IongaugeemissionStatus ?IS 4 ?IS{1..6} {0..2} displayLineassign ?LB 2 ?LB{2..3} {1..6} capmaNUnit ?NU 2 ?NU{1..6} {0..1} PassWord ?PW1 ?PW{1..2} {0..999} ParitY {0..2} RAte {0..9}...

  • Page 23: D2 De Tailed De Scrip Tion Of Que Ries

    Ap pen dix D2 De tailed de scrip tion of que ries Note: x normally refers to gauge channel and is in the range 1..6 unless otherwise stated. ?AC x Returns the current setting, off or on, for AUTO control and display for a particular channel x, as set in the SYSTEM menu.
  • Page 24 ?AP x Returns the current value of the auto turnon/off pressure for a particular channel x, as set in the SYSTEM menu. Pressure displayed as mEse where m is the mantissa, s the sign + or -, and e is the exponent.
  • Page 25 ?CO x Returns the current setting for the IGC gauge constant IG CON, for channel x, as set in the CONFIG menu. It is a number in the range 20 to 300, corresponding to values 2.0 to 30.0 (i.e. one implied decimal place). ?CU x Returns the setting for the IGC gauge current CUR for channel x, as set in the ION menu.
  • Page 26 ?GV x Returns the gauge version for channel, as displayed on the front panel when the IDENT control is on. For x = 0, this returns the expansion board identification: 0 = not fitted 1 = CAPMAN 2 = Standard active gauge type fitted For x= {1..6}, this returns the gauge identification (6, 7, 14, 16, 17 and 18 are not allocated): 0 = Not fitted 1 = 590 CM capacitance manometer...
  • Page 27 ?IS x Returns the emission status for IGC or AIGX connected to channel x. 0 = off 1 = inhibited 2 = emission start 3 = on. ?LB x Returns gauge channel assigned to display line x (2..3) ?NU x Returns the unit (y) of the CAPMAN gauge connected to channel x y = 1 MBAR y = 0 TORR...
  • Page 28 ?RC x Returns the current channel assigned to relay x, as set in the SYSTEM menu. = relay is off. 1..6 = channel number assigned to the relay. = relay is normally on, switches off if any gauge has a fault condition. = relay is on.
  • Page 29 ?VL x Return the gauge voltage reading for channel x. Millivolts displayed as a number -30000 to +30000. -30001 or +30001 indicates voltage under/over range. ?ZS x Returns the zero state (y) of the ASG or CAPMAN gauge fitted to channel x. y = 0, Zero correction not applied.

  • Page 30: Ap Pen Dix E Com Mands

    APPENDIX E Commands In the lists that follows, the expression {a..b} means a number in the range a to b inclusive. Where {value} appears, the valid range of numbers varies according to the individual item addressed. For example: DEFINITION: CD {1..6} = {0,1} CORRECT: CD 1 = 1 INCORRECT: CA 16 = 3 Ap pen dix E1...
  • Page 31 COMMAND MNEMONIC SYNTAX EXAMPLE Acceptnewgauge !GV 3 !GV{1..6} GaugesWitch !GW 3=1 !GW{1..6}={0..1} iongaugeHeaD !HD 5=2 !HD{1..6}={1..2} KeyLock !KL{1..2} KeyUnlock !KY3 !KY{0..4} DisplaylineAssign !LB 2=4 !LB{2..3} = {1..6} MOde !MO 1 !MO {0..1} capmaNUnit !NU1=0 !NU{1..6}={0..1} PassWord !PW1=888 !PW{1..2}={0..999} ParitY !PY1 !PY{0..2} QueryMode RAte...
  • Page 32 COMMAND MNEMONIC SYNTAX EXAMPLE enablecapmanZeroing/ASG !ZS 1=0 !ZS{1..6} = {0..1} ZeroVoltcapman/ZeroASG/ !ZV 3 !ZV{1..6} calibrateWRG/calibrateAPGX defaultsettings Ac tive Gauge Con trol ler RS232 Op tion...

  • Page 33: E2 De Tailed De Scrip Tion Of Com Mands

    Ap pen dix E2 De tailed de scrip tion of com mands Note: x normally refers to gauge channel and is in the range 1..6 unless otherwise stated. !AC x = y Sets state y, off or on, for AUTO control and auto display for channel x, as in the SYSTEM menu. 0 = off 1 = autocontrol on 2 = autocontrol and autodisplay on.
  • Page 34 !CH x = pressure Sets the high SET PT pressure for relay x, as in the SYSTEM menu. Pressure MUST be set as m.mmEse where m.mm is the mantissa to 2 decimal places 1.00 to 9.99 s the sign + or - e is the exponent 0..9 !CL x = pressure Sets the low SET PT pressure for relay x, as in the SYSTEM menu.
  • Page 35 Releases the AGC front panel display so that normal messages generated by the AGC itself are displayed. !FT x = y Sets the IGC filament FIL y for channel x, as in the ION menu. 1 = filament 1 2 = filament 2 !GA x Accept the error being reported for the gauge on channel x.
  • Page 36 !KY x Sets the key press x equivalent to the AGC front panel key. 0 = UP 1 = DOWN 2 = ENTER 3 = ESCAPE 4 = SET !LB x=y Assign gauge channel x to display line y (2..3) Note: This command is only valid for a triple line display AGC.
  • Page 37 This command is active even when the AGC is in printer mode, and may be used to take over control of the AGC remotely. It has been included to provide compatibility with Edwards Series 2000 remote-control programs. Note:...
  • Page 38 Resets relay lockout to normal, preventing use of !RS to set/reset relays. This command MUST be sent when finished using !RS , to re-enable relay switching according to the relay pressure set points. The controller always powers up with relay lockout reset to normal. !RS x = y Sets the state y, off or on, of relay x, as displayed on the front panel.
  • Page 39 This causes the AGC to restart operation as if the electrical supply had been switched off, then on again. !ZS x =y Enable/disable zeroing of ASG or CAPMAN gauge fitted to channel x (1..6) y = 1, enable zeroing y = 0, disable zeroing !ZV x Perform zeroing function of CAPMAN or ASG, or calibrate the WRG/APGX fitted to channel x (1..6).

  • Page 40: Ap Pen Dix F De Fault Se Rial Com Mu Ni Ca Tions Set Tings

    AP PEN DIX F De fault se rial com mu ni ca tions set tings PARAMETER DEFAULT SETTING TX/RX baud rate 300 baud (Factory) 9600 baud (User) Parity None Stop bits Character length (FIXED) 8 bits Start bits (FIXED) Operation mode MODE 0 Printer mode Ac tive Gauge Con trol ler RS232 Op tion...

  • Page 41: Ap Pen Dix Gagc Rs232 Tim Ings

    AP PEN DIX G AGC RS232 tim ings The AGC transmits serial data via the RS232 in blocks with each block of data consisting of up to 40 bytes and terminated with the CR LF ASCII characters. The time interval between the AGC receiving a message and responding to it will vary due to higher priority routines running in the AGC program.
