DMX512 CONTROL VIA CABLE CONNECTION

DMX Controller
Program
Chase32 Step100

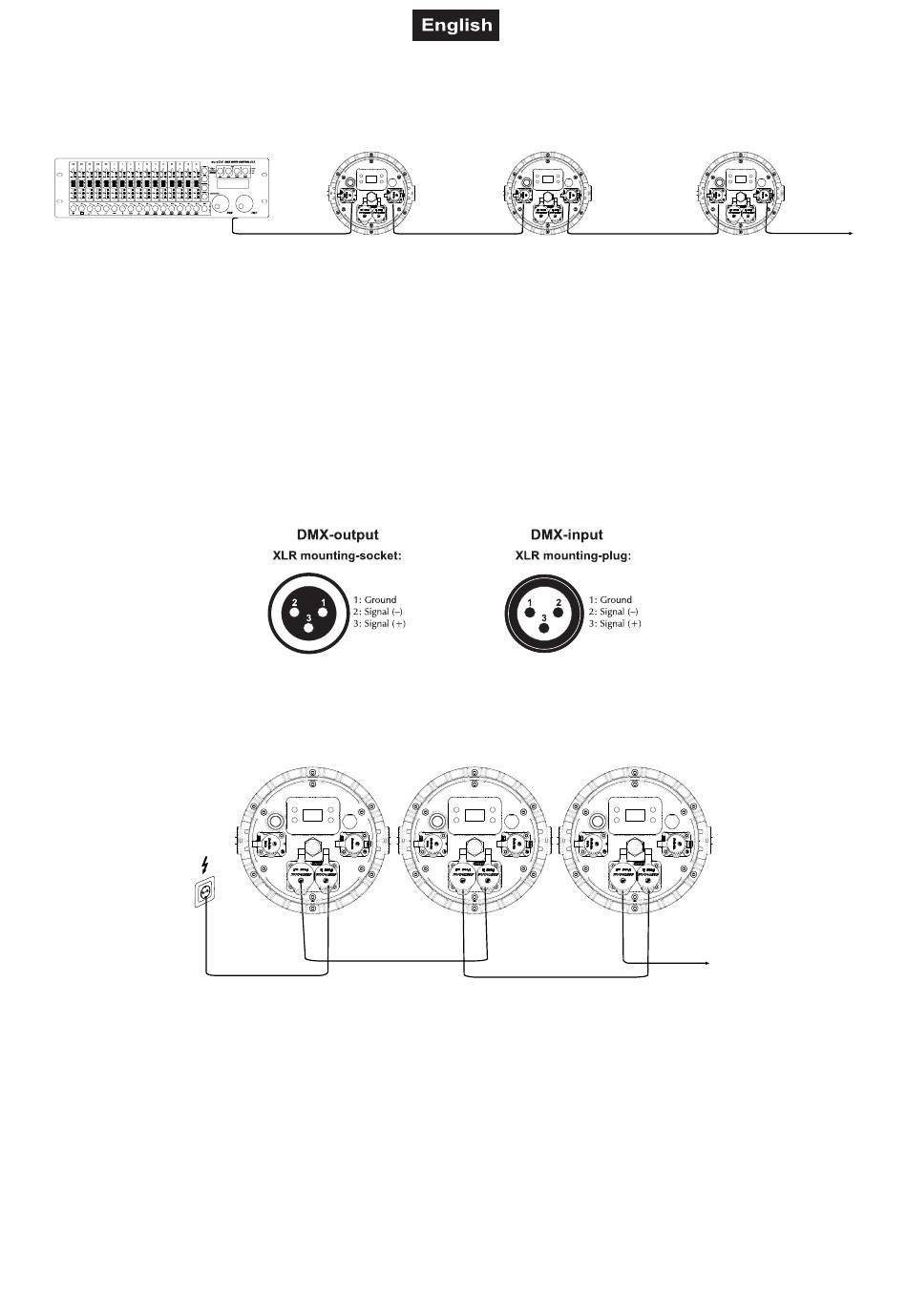

A DMX512 data link is required in order to control the device via DMX. The device provides special DMX
connectors, which are designed according to protection class IP65. Matching DMX connection cables with
special plugs are optionally available. When not in use, make absolutely sure to close the connections with
the rubber sealing caps to prevent moisture and dirt from penetrating.
1 Connect the output of your DMX controller to the DMX input DMX IN of the device with a DMX cable.
2 Connect the DMX output DMX OUT of the device to the DMX input of the next unit in the chain. Always
connect one output to the input of the next unit until all units are connected.
3 At the last unit, the DMX cable has to be terminated. Plug the terminator with a 120 Ω resistor between
Signal (–) and Signal (+) in the DMX output of the last unit.
4 If the cable length exceeds 300 m or the number of DMX devices is greater than 32, it is recommended
to insert a DMX level amplifier to ensure proper data transmission.
XLR connection:

POWER SUPPLY

The device can be operated with mains voltage and for mobile use via the internal rechargeable battery.
The device uses an auto-range power supply that accepts input voltages between 100 und 240 volts. The
power connectors are designed according to protection class IP65. Matching connection cables with special
plugs are optionally available. When not in use, make absolutely sure to close the connections with the
rubber sealing caps to prevent moisture and dirt from penetrating.
1 Connect the device via the mains cable to a grounded mains socket. Thus the unit is switched on.
2 To switch off the unit, disconnect the power plug.
3 Do not connect the unit to the mains voltage via a dimmer. For a more convenient operation, use a mains
outlet which is switchable.
4 The jack POWER OUT allows for power supply of further devices. To interconnect several devices,
connect the jack POWER OUT to the input POWER IN of the next unit until all units are connected.
Matching power cables are available as accessories. In this manner, up to 8 devices can be linked at
230/240 input voltage and up to 4 devices at 110/115 input voltage.
Device 1
Starting Address 1
28/40
Device 2
Starting Address 12
00150750.DOCX, Version 1.0
Device 3
Starting Address 23
