INSTALLATION

WARNING! Risk of injury caused by falling objects
Devices in overhead installations may cause severe injuries when crashing down. Make sure
that the device is installed securely and cannot fall down. The installation must be carried out by
a specialist who is familiar with the hazards and the relevant regulations.
The device may be placed on the floor by unfolding the brackets or fastened to a truss or similar rigging
structure. The device must never be fixed swinging freely in the room.
1 The rigging structure must support at least 10 times the weight of all fixtures to be installed on it.
2 Block access below the work area and work from a stable platform when installing the device.
3 Use rigging hardware that is compatible with the structure and capable of bearing the weight of the
device. Please refer to the "Accessories" section for a list of suitable rigging hardware.

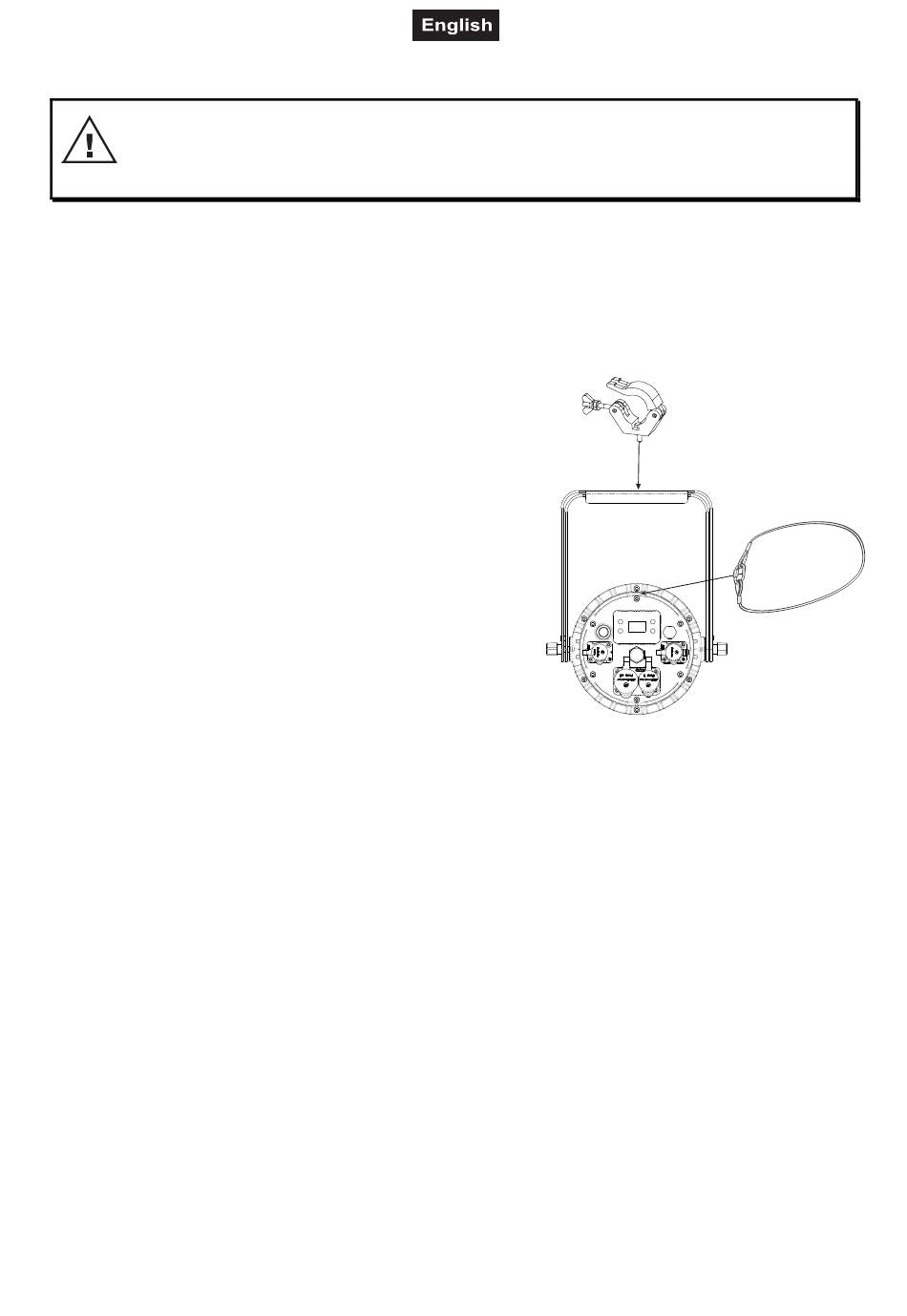

4 Secure the device with a safety bond or other secondary
attachment. This secondary safety attachment must be
sufficiently dimensioned in accordance with the latest
industrial safety regulations and constructed in a way that no
part of the installation can fall down if the main attachment
fails. An appropriate eyelet is mounted on the device for
fixation of the safety bond. Fasten the safety bond in such a
way that, in the event of a fall, the maximum drop distance of
the device will not exceed 20 cm.
5 To align the device, release the fixation screws at the
mounting bracket, adjust the desired inclination angle and
tighten the fixation screws.
6 After installation, the device requires inspections periodically
to prevent the possibility of corrosion, deformation and
looseness.
7 Make sure the protective caps of the connections are always
closed when using the product outdoors.

Changing the beam angle

With the delivery of the device you will receive two frost filters, with which the beam angle can be changed
from 6° to approx. 13° or 20°. If present, please remove the protective foil of the frost filter when using it for
the first time. If you want to change the beam angle of the device, attach the desired filter using the enclosed
knurled screws to the front of the device. Make sure the screws are tightened to prevent accidental release
of the frost filter.
