Submersible Trash Pump
99928132 REV 3
INSTRUCTION MANUAL
H4635
Serial Code GKH
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com
© 2010 Greenlee Textron Inc.
Español ............... 11
Français .............. 21
Deutsch .............. 31
Italiano ................ 41
3/10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Textron GREENLEE H4635
Summary of Contents for Textron GREENLEE H4635
- Page 1 H4635 Submersible Trash Pump Serial Code GKH Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 99928132 REV 3 © 2010 Greenlee Textron Inc. 3/10...
-
Page 2: Table Of Contents
SAE Standard J1273 (Hose and Hose Assemblies): Publication 99930323 All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. Loctite is a registered trademark of Henkel Corp. -
Page 3: Important Safety Information
Failure to observe this warning could result in severe or servicing this tool. injury or death. Failure to wear eye protection could result in serious eye injury from flying debris or hydraulic oil. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 4 In case of accidental skin contact with hydraulic oil, wash the affected area immediately to remove the oil. Failure to observe these precautions may result in injury. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 5: Identification

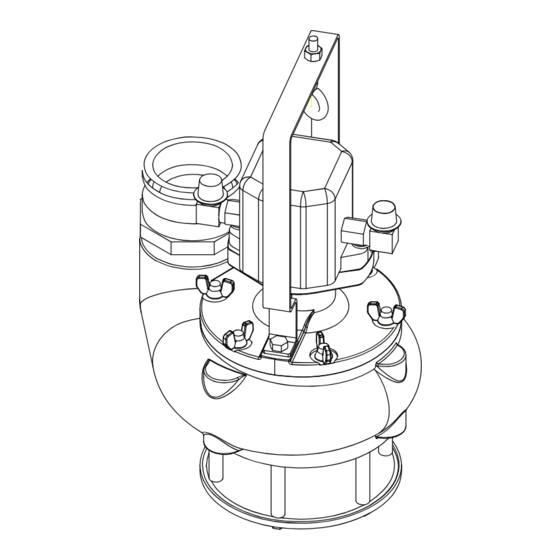

2. Hydraulic Motor 6. Discharge Port 3. Hydraulic Tank Port “T” (return) 7. Housing 4. Hydraulic Pressure Port “P” (supply) 8. Base Legs and Base Plate Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 6: Specifications
Back pressure: 13.8 bar (200 psi) Pour Point: –34 °C (–30 °F) minimum Failure to observe this warning could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 7: Hoses And Fittings
4. Disconnect the tank hose from the tool, and then from the hydraulic power source. 5. Install dust caps over the ports to prevent contamination. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 8: Operation
99930323, SAE J1273 (Hose and Hose Assemblies). 2. Remove and clean the base legs and base plate. Remove any material that may have accumulated near the inlet port. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 9: Troubleshooting
Tool operates, but discharge Inlet port plugged. Remove debris from the area around the is low. base legs and base plate. Discharge hose plugged. Remove and clean hose. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
