INSTRUCTION MANUAL

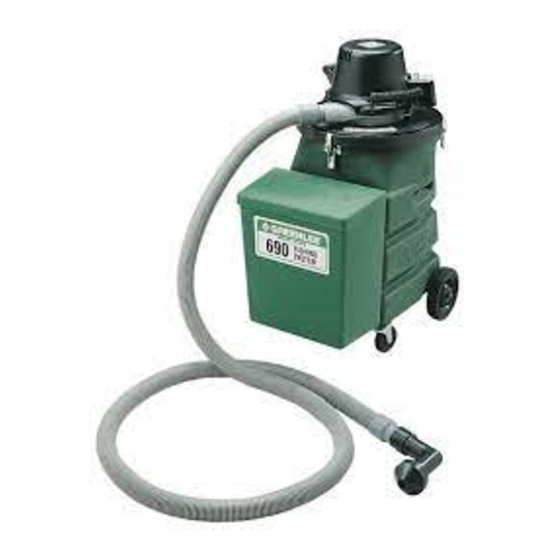

690
Power Fishing System
Includes Serial Number AAR 3800 and higher
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com
99900530
© 2010 Greenlee Textron Inc.
IM 1283 REV 6 12/10
Advertisement
Table of Contents
Related Manuals for Textron Greenlee 690
Summary of Contents for Textron Greenlee 690
- Page 1 Includes Serial Number AAR 3800 and higher Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 99900530 © 2010 Greenlee Textron Inc. IM 1283 REV 6 12/10...
-
Page 2: Table Of Contents
This tool is intended for commercial use. All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. Mighty Mouse is a registered trademark of Greenlee Textron Inc. -
Page 3: Important Safety Information
Failure to observe this warning will • Disconnect from power before result in severe injury or death. servicing. Failure to observe these warnings could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 4: Grounding Instructions
Connect the plug to a corresponding GFCI-protected receptacle that is properly installed and grounded in accordance with all national and local codes and ordinances. Do not use an adapter. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 5: Identification
Piston Speed in 1/2" Conduit ............ 145 m/min (475 ft/min) Tank Capacity Liquid ....................41 L (11 U.S. gal) Dry ....................30 L (8 U.S. gal) Mass / Weight ..................22.7 kg (51 lb) Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 6: Setup
• Two fishing lines can be vacuumed in at the same time, if desired. Leave one line in the conduit to pull additional wire into the conduit after the initial installation. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 7: Operation
Line Tied to Piston Line Drag Insert CAUTION Cone 1-1/4" to 2-1/2" Cone 3" to 4" Washer 5" and 6" Cone 1/2" to 1" (optional) Adapters Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 8: Maintenance
“Optional Equipment” at the end of the “Parts 5. Inspect the gaskets (22, 23). Replace if necessary. List—690.” 6. Install the filters. Install the tank cover and secure with the catches. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 9: Troubleshooting
Select the correct piston size. the conduit. Conduit run is obstructed. Clear the conduit run. Check for flattened bends. EMT couplings are loose. Tighten the couplings. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 10: Illustrations And Parts Lists
690 Power Fishing System Illustration —690 CAUTION OPTIONAL ACCESSORIES Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 11 Adapter cone, 1/2 through 1" ........... 1 50256440 Adapter cone, 1-1/4 through 2-1/2" ......... 1 50256459 Adapter cone, 3" through 4" ..........1 50233602 Handle, gun ............... 1 Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
- Page 12 1. Old motor cover (50338226) and motor will work on new plastic (50309060) tank cover. 2. New motor cover (50009079) will not work on old aluminum (50309060) tank cover. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
- Page 13 Nut, 5/16–24 UNF hex jam ..1 Clamp ..........2 Cover ...........1 91861268 Brush mechanism .......2 Bearing ........1 Bracket ........1 Note: Some parts shown are not available for individual sale. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 14: Wiring Diagram
800-435-0786 Fax: 800-451-2632 815-397-7070 Fax: 815-397-1865 Canada 800-435-0786 Fax: 800-524-2853 International +1-815-397-7070 Fax: +1-815-397-9247 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 • An ISO 9001 Company Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com...
