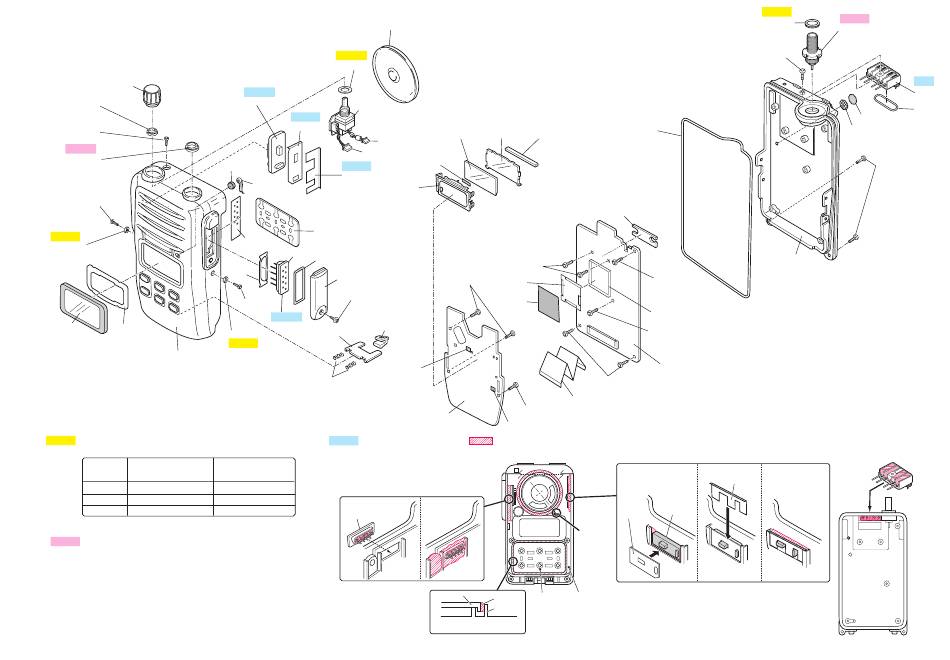

Icom IC-M88 Service Manual page 26

MP33 (C)
MP31 (C)
MP54 (C)
NOTE 2
MP51 (C)
MP461 (L)
MP52 (C)
NOTE 1
MP53 (C)
MP12 (C) MP13 (C)
MP1 (C)
NOTE 1 : Once the following parts are removed, a O ring or sealing must be
replaced with new one before reattachement.
Daughter parts for
REF. NO. Mother parts
relayted replacement
O ring
MP45 (C) Antenna connector (J1)
Shealing washer (W)
MP39 (C) Screw
MP53 (C)
O ring (AB)
MP32 (C) S1 (C) Encoder
NOTE 2
Apply a screw lock in the conclusion with J41 (C) and MP51 (C).
：89500001350
Reference No.
Reference Name ：Screw lock 1401B
7 - 2
SP1 (C)
NOTE 1
MP32 (C)
NOTE 3
MP4 (C)
R801 (VR)
NOTE3
VR UNIT
MP6 (C)
W802 (VR)
W801 (VR)
NOTE3
MP5 (C)
MC461 (L)
MP681 (L)
MP11 (C)
MP10 (C)
MP7 (C)
MP9 (C)
MP8 (C)
MP71 (C)
MP72 (C)
MP52 (C)
NOTE 3
MP21 (C)
MP53 (C)
MP22(C)
NOTE 1
MP684 (L)
MP23 (C)
LOGIC UNIT
NOTE 3 The glue must be applied to the
Manufacture : Cemedine Co.
Type : Super-X
1
MP7 (C)
DS681 (L) MP682 (L)
EP681 (L)
MP683 (L)
MP47 (C)
MP35 (C)
MP42 (M)
MP43 (M)
W41 (C)
MP35 (C)
MP685 (L)
areas when the front panel is replaced with new one, to ensure water tightness.
2
A basis to
install a
speaker
MP11 (C)
Glued
MP11 (C) MP1 (C)
MP1 (C)
Not putting glue to the depths
of a ditch of MP1.
NOTE 1
MP45 (C)
MP44 (C)
MP46 (C)
MP111 (M)
MP41 (C)
MP47 (C)
MP41 (M)
MP47 (C)
MAIN UNIT
MP47 (C)
1
2 3
Painting from
Painting with the
the lower part.
upper part from
MP5 (C)
a crack。
MP4 (C)
MP6 (C)
NOTE 2
J41 (C)
NOTE
MP42
MP43
MP66 (C)
MP65 (C)
MP55 (C)
(C) : CHASSIS PARTS
(L) : LOGIC UNIT
(M) : MAIN UNIT
(VR): VR UNIT
MP42 (C)
