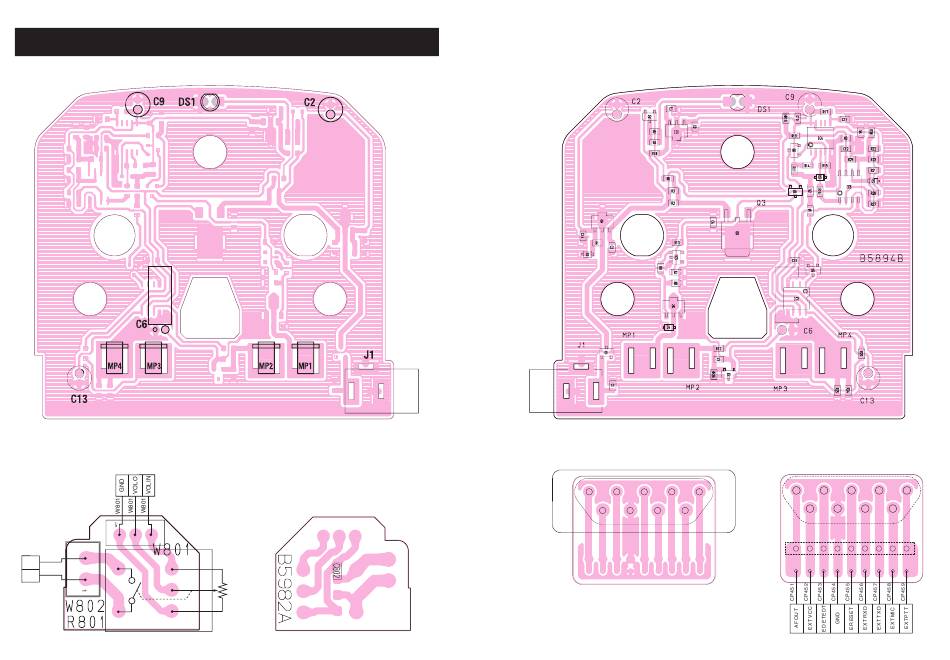

SECTION 9
BOARD LAYOUTS
9 - 1 CHARGER UNIT (BC-152)
• TOP VIEW
9-2 VR UNIT
• TOP VIEW
to LOGIC UNIT J411
to MAIN UNIT
J281
W802
FHV
W802
VCC
• BOTTOM VIEW
R801
• BOTTOM VIEW
9-3 CONNECTOR UNIT
• TOP VIEW
J41
• BOTTOM VIEW
J41
9
7
5
3
8
6
4
2
J851
to LOGIC UNIT
