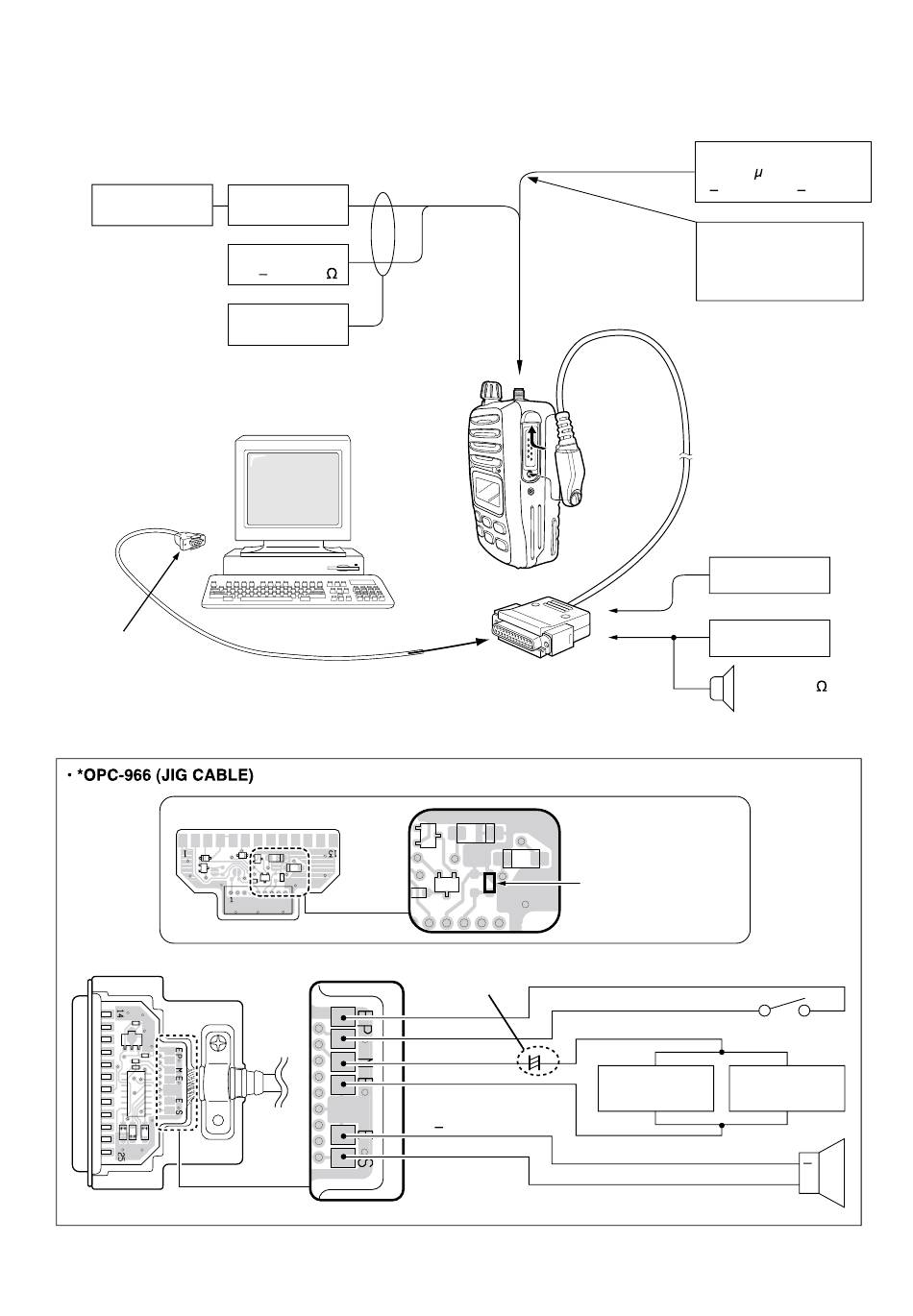

• CONNECTION
FM
deviation meter
to an RS-232C port
DB9 female plug
RS-232C cable (straight)
OPC-966
(Cloning cable)
Attenuator
40 dB or 50 dB
RF power meter
0.1 10 W/50
Frequency
counter
Personal
computer
to the antenna connector
*OPC-966
(JIG CABLE)
Add a jumper wire here
Electrolytic capacity
47 F
PTTE
PTT
MIC
+
MICE
SP
SP+
5 - 2
Standard signal generator
0.1 V to 32 mV
( 127 dBm to 17 dBm)
CAUTION:
DO NOT transmit while
SSG is connected to the
antenna connector.
Audio generator
SINAD meter
Speaker (8 )
Audio generator
300 Hz to 3 kHz
millivoltmeter
AC
+
