- Page 1 Z-N976 INFOTAINER OPERATING INSTRUCTIONS...
- Page 2 ZENEC, we also reserve the right to make change to the hardware and software of the products at Additional new information can be found in other brochures or in updated operating instructions any time.
- Page 3 Table of contents ZENEC WELCOMES YOU..................................2 REMOTE CONTROL APP FOR SMARTPHONES (REMOTE CONTROL VIA SMARTPHONE) ............45 VALIDITY OF DOCUMENT ..................................3 AV IN / HDMI ......................................46 Illustrations ......................................3 NAVIGATION ......................................46 Technical data of the product ................................. 3 Navigation update ....................................
- Page 4 DIEBSTAHLSICHERUNG carried out by unauthorized personnel will invalidate the warranty. The ZENEC system is equipped with a theft protection function. If this is active, when the ZENEC Das ZENEC-System ist mit einer Diebstahlschutzfunktion ausgestattet. Ist diese aktiv, werden Sie nach...

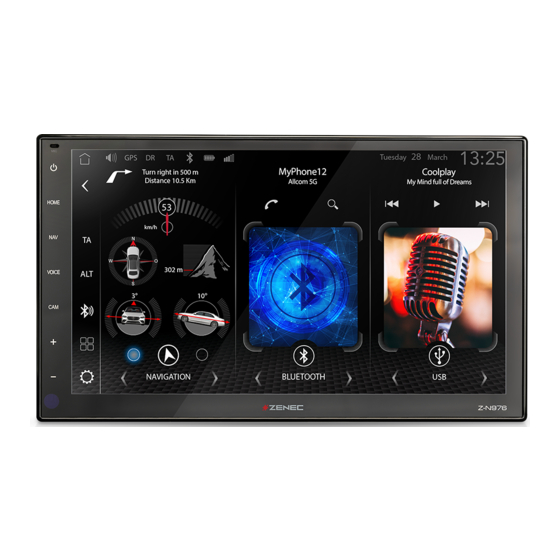

- Page 5 Around the front of the device Number Symbol Function The main components of the front of the device are shown and explained here. The front of the Tap to start the Android Auto or CarPlay voice control, and press again to device contains various controls, including several sensor buttons for manually opening the source, stop the voice control.
- Page 6 Remote control Connection to steering wheel remote control The ZENEC system has a direct universal resistive steering wheel remote control connection via CAN/Stalk-Iinterface. ...
- Page 7 Optional steering wheel remote control connection NOTE: These functions are only usable if a multifunction steering wheel is present in the vehicle and the ZENEC system is connected via an analogue LFB adapter cable + LIN bus or a vehicle-specific CAN/Stalk interface.
- Page 8 The rear LFB button functions (volume, camera, skip, BT etc.) are displayed to you visually in the system setup of the ZENEC under [Settings] ➔ [Other] ➔ [LFB Assignment (Analogue) ] under Mode 2. Analogue mode 2 is already preset for Series 8 and 9 in the factory. The BT handsfree telephone is connected via multiple assignment, as shown graphically in Mode 2.
- Page 9 [CAM] function symbol in the middle of the function symbol field, which has a light blue border. be called up directly. In the left-hand area there is the standard Zenec control bar with the ALT b. Press the relevant LFB button on the rear of the steering wheel (top left in this example). The...
- Page 10 MAIN MENU STRUCTURE systems or devices with the vehicle stationary. The new Zenec main menu structure contains a new type of graphical user interface with simultaneous display of the three sources Navigation / Smartphone + Bluetooth / Media + Radio in a type of widget display on the large touch screen.
- Page 11 Each source can be called up directly via the App List. Android Auto Navigation 1. Tap on the App Lists icon in the standard Zenec toolbar to display the App Overview List. 2. Tap required source to call up the source. Widget 2 Bluetooth handsfree device...
- Page 12 Type of connection Symbol Making phone calls via the Zenec handsfree The ZENEC system contains a general search function which uses different sources with different device. Bluetooth search criteria. The entry keyboard is an “Android OS” operating system keyboard which is Phone book management and contact search.
- Page 13 In order to be able to use mobile devices in the vehicle via Bluetooth, a one-off Bluetooth connection Symbol Meaning between your ZENEC system and the mobile phone is required. After the one-off connection with the ZENEC system, the mobile phone is automatically detected and connected in future. Mobile radio network reception strength.
- Page 14 All BT devices that are connected or already coupled with the ZENEC system are displayed in a device list, where they can be managed. • A maximum of 7 devices can be connected to the ZENEC system via Bluetooth. A maximum of 20 devices are recognised.
- Page 15 ACCEPT AND TERMINATE CALLS Incoming calls can be accepted in different ways depending on the configuration of the vehicle in combination with the ZENEC system and interface / analogue LFB (Key 1 / Key 2) and the LIN bus connection.
- Page 16 “OUTGOING CALL” CONNECTION VIEW CONTACT SEARCH The contact search is available after successful synchronisation. 1. Tap on Search on the Bluetooth control bar/toolbar to call up the contact search window. 2. Enter letters using the keyboard. INFO: The list of hits is displayed beneath the input field. 3.
- Page 17 Bluetooth. This makes it possible for Media Player control elements such as Play, Pause and Skip from coupled terminal devices which are in audio playback mode to be used via the ZENEC. The display of iD3 Tag metadata is only possible is this is MediaPlayer, general present on the tracks streamed via the Smartphone.
- Page 18 NOTE: After a USB source has been selected, the information about the current track or On the steering wheel remote control of the vehicle: playback file is displayed on the ZENEC system. The content and scope depends on the selected audio source.
- Page 19 4. Select required track and tap to start playback. Starting with the selected track, every track in the The following repeat types can be selected: playback list or the audio files in the folder are played back one after the other. Function Symbol Meaning...
- Page 20 7. Tap on the name of the previously created playlist to add the track. Be it films, YouTube videos or music videos: The ZENEC system can play many of the digital video INFO: A system pop-up appears with the information that the track has been added.
- Page 21 NOTE: After a video source has been selected, the information about the current video or Wipe to the right to skip forward a video. playback file is displayed on the ZENEC system. The content and the scope depend on the selected video source.
- Page 22 7. Compare the ID control number displayed on the ZENEC system with the number on the display of the iPhone. Then confirm the respective pop-up with the ID control number on the iPhone and on • Before you couple your phone with your ZENEC system, ensure that Siri is enabled. If Siri is not the ZENEC device.
- Page 23 Ensure that you grant the various permissions and authorisations on your Smartphone, otherwise 2. Follow the dialogues on the screen of the Smartphone and the ZENEC device to set up Android some of the Android Auto functions will not be properly supported.
- Page 24 1. PC or notebook with a Windows 7 operating system or higher, an SD card reader and In order to be able to control the audio functions of the ZENEC system directly via your iPhone/iPad, broadband Internet access. The Apple OS is not supported! proceed as follows: 2.
- Page 25 Software installation screen informs you about the current installation step (Figure 3). The Zenec device (Z-N976) must be prepared by installing some software before you can use the The software installation takes about 30-60 seconds. Z-N976 navigation software on the micro SD card.
- Page 26 Tap to activate the Navigation split screen in the FM Radio. The ZENEC system allows you to activate a Navi split screen in the audio sources with the display of street names and the distance to the next turn-off, the so-called “Turn to Turn” information. In this way, you also never lose track during active navigation in an audio playback source while driving.
- Page 27 FM TUNER CHANGE STATION (SEARCH, PRESETS) Principle of the FM tuner: Receivable radio stations can be played with the ZENEC UKW RDS tuner. On the ZENEC device: An integrated DSP provides a clearer sound with weaker stations by means of noise interference Call up station information.
- Page 28 Alternative frequency changeover ON / OFF. You get clear, stable digital radio reception with the ZENEC DAB+ Twin Tuner. The background scan function updates the dynamic station list in the background so that you are always offered the DAB Setting for restricting AF to local region detection.
- Page 29 Function Symbol Meaning SWITCH ENSEMBLE Station information Station name and ensemble name display. On the ZENEC device: Option 1: Slideshow / Cover Displays additional information such as the Cover image or display station graphic, artist information or events (MOT slideshow).
- Page 30 INFO: Short tap to play the stored DAB+ station. KAMERA The ZENEC system supports up to three camera systems which can be controlled directly via the screen, the [CAM] sensor button or via the steering wheel remote control. The camera image of camera 1 switches itself on automatically when reverse gear is selected.
- Page 31 The multiview function allows direct manual control of the required image camera source. view on the ZENEC device. The required image section is selected via the multiview toolbar at the bottom of the device screen. SWITCH OVER VIEWING ANGLE / IMAGE SECTION The advantage: You can view all areas behind the vehicle, which makes manoeuvring much easier.
- Page 32 INFO: After switching off the ignition, the ZENEC system remains on for Delayed device automatically used. the set timer time. when the timer time expires, the ZENEC is automatically shut-off shut down and switched off. iGO Navi: The native iGO navigation is used as the main navigation source.
- Page 33 Setting Operation Volume Tap to set the start and source volume. Tap to call up the audio profile list. Balance/Fader Tap to set the fader and the balance. Presets Possible profiles: Rock / Classic / Pop / Dance / Soft / Jazz / Flat / User 1 / User 2 / User 3.
- Page 34 USB Gain Possible setting range: -9 to +3 The ZENEC X-Over function allows you to set high pass crossover frequencies, and is the frequency range which lies at the transition from one frequency band to the next higher band. The audio Fine setting of iPod source volume.
- Page 35 ACTIVATE OR DEACTIVATE NAVI-MIXER MEDIA MUTING Because of the given arrangement of the individual speakers in your vehicle, it may be that the platform depiction is not optimal. The ZENEC run-time correction allows you to delay the audio 1. Call up audio settings.
- Page 36 5. Start Wifi device search on your ZENEC system. To do this, tap “Wifi Connection”. The home Call up settings. network name / router name e.g. FritzBox xy of your routers is displayed in a ZENEC search list. 6. Select the required router (router name) from the list and tap to “Connect the ZENEC with the Call up app list and tap the settings source symbol.
- Page 37 • Mode 2: The camera changeover function / park assist mode 2 is activated. Automatic changeover between camera 1 and camera 2. You can change various ZENEC system settings in order to adapt the ZENEC system in accordance with requirements. For example, you can change the device language, set a password, switch <...
- Page 38 The require display screen brightness can be individually adapted to your requirements in the The ZENEC system has several synchronisation sources which can be set in the time and date display screen settings. You can set your display screen brightness and a DAY / NIGHT brightness settings.
- Page 39 In the ZENEC device settings under Software Version Info you can see the currently installed software version, together with version information about MCU, System OS, APP, BT, UBLOX Gyro Firmware and UUID including the model name [Settings] ➔...
- Page 40 NOTE: ● The ZENEC Z-N976 is equipped with an integrated DAB+ receiver. To use it, you need a suitable DAB antenna (not supplied), which must be connected to the ZENEC system. ● If the target vehicle is already fitted with an original DAB antenna, it can still be used in conjunction with the ZENEC system.
- Page 41 OVERVIEW OF INSTALLATION AND CONNECTION Z-N976 CONNECTION DIAGRAM ACCESSORIES Bluetooth Antenna E HDMI USB 1 USB2 USB1: USB2: • Apple CarPlay, Apple MFI and Google Android Auto • Apple MFI •...
- Page 42 ABBREVIATIONS Z-N976 CONNECTION DIAGRAM (page 2) Abbreviation Description Manufacturer-encompassing Bluetooth technology which makes it possible to ® A2DP transmit audio signals wirelessly (Advanced Audio Distribution Profile) Alternative Frequency The CAN bus (Controller Area Network) is a serial bus system for communication CAN-Bus between the control units in a vehicle.
- Page 43 ZENEC or its service partner will have the choice of either repairing or replacing the product or its defec- • damage caused by unauthorized repair attempts, or attempted repairs by someone other than an tive parts covered by the warranty, and assume the material and labour costs at its own discretion and authorized ZENEC service partner;...
- Page 44 Do not use this device in locations in which wireless devices are not permitted. ZENEC cannot guarantee that no accidents or damage will occur if the device is used incorrectly. Use this product with care and at your own risk.
- Page 45 © Copyright 2023 RevA / Editorial deadline: Q3-2023 German Manufacturer: ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland Legal representative in EU: ACR S & V GmbH ∙ Industriestraße 35 ∙ D-79787 Lauchringen ∙ Germany...
