PC, DVI, DISPORT PORT, HDMI, SDI VIDEO INTERFACE
CONTENTS
Page: 2. Introduction, How to Proceed, Usage Note, Disclaimer
3. System design - Diagram of a suggested system
4. Assembly notes - Important information about system elements
6. Connection & Operation - How to use the controller
11. Connectors, pinouts & jumpers - Essential connection information
28. Appendix I - Supported graphics modes table
45. Warranty, Caution & Limitation of Liability, Trademarks
It is essential that these instructions are read and understood before connecting or
powering up this controller.
Specifications subject to change without notice
© Digital View Ltd - Doc Ver 1.50: 28 June, 2023

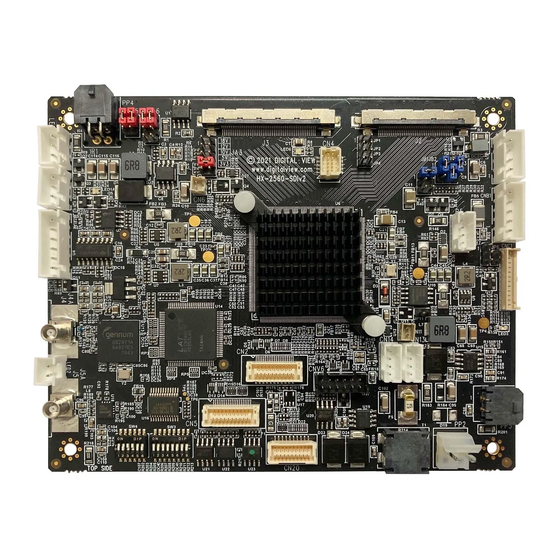

CONTROLLER
FOR TFT PANEL
Model: HX-2560-SDI
Part number : 4178000XX-3 or up
INSTRUCTIONS
1 of 47
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4178000XX-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digital View 4178000XX-3

  • Page 1: Table Of Contents

    47. Revision history It is essential that these instructions are read and understood before connecting or powering up this controller. Specifications subject to change without notice 1 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 2 Check power settings to all component parts before connection. DISCLAIMER There is no implied or expressed warranty regarding this material. Specifications subject to change without notice 2 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 3 SYSTEM DESIGN A typical LCD based display system utilizing this controller is likely to comprise the following: Specifications subject to change without notice 3 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 4 21. SDI re-clock loop out : 3G/HD/SD-SDI re-clock loop out. Plug the SDI extend cable to the connector J5 on the controller board. Recommend to connect less than 100 meter in good co-axial cable (e.g Belden 1694A) between DV devices. Specifications subject to change without notice 4 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 5 Refer to graphics modes table in specifications section for supported modes.  Non-interlaced & interlaced video input is acceptable. IMPORTANT: Please read the Application Notes section for more information. Specifications subject to change without notice 5 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 6 Once the system has been connected and switched on there are a number of functions available to adjust the display image as summarized in the following sections. The settings chosen will be saved for each mode independently. Specifications subject to change without notice 6 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 7 426122200-3. 5 keys OSD switch mount board 5 buttons OSD switch mount board P/N 4161003700-3, matching cable P/N 426123010-3. Specifications subject to change without notice 7 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 8 Fine tune the data sampling position (adjust image quality) Phase Press – or + (- + ) 0~100 Auto adjust the positions, phase, frequency Auto Adjust Specifications subject to change without notice 8 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 9 Press down on OSD keypad to factory reset Are you sure to upgrade ? No / Yes. Firmware Upgrade Information Specifications subject to change without notice 9 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 10 Model : HX-2560-SDI Firmware version Main resolution Pip resolution # Function in VGA mode only Specifications subject to change without notice 10 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 11 JST 3-way, B3B-XH-A or compatible (Matching type : XHP-3) LVDS panel signal output 1 JAE FI-RE41S-HF (Matching type : FI-RE41HL) Specifications subject to change without notice 11 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 12 Open = Switch mount control Panel & function selection See table 2 Panel & function selection See table 3 Specifications subject to change without notice 12 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 13 ** Ensure that the backlight inverter supports 24V operation prior to connecting a 24VDC input. Because CNA1 pin 1 and CNB1 pin 2 will output 24VDC if input 24VDC via PP2 or PP5. Specifications subject to change without notice 13 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 14 * Maximum current for 3.3V, 5V = 7A, Maximum current for 12V = 5A, Maximum current for 18V = 3.5A Specifications subject to change without notice 14 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 15 JA3, JA5 & JA6 location on board : (Please pay attention to the jumper settings on JA3, JA5 & JA6 which are red in color) JA6 & JA5 Specifications subject to change without notice 15 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 16 OFF – Enable : The output refresh rate locks to the input for 50Hz / 60Hz mode (other resolution lock the output be 60Hz. ) Specifications subject to change without notice 16 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 17 1024x768. The preferred EDID resolution should be 1024x768. It should also have the capability to set the max resolution to 2560x1600. Specifications subject to change without notice 17 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 18 Ambient light sensing CN8 – RS-232 serial control: JST B6B-XH-A (Matching type : XHP-6) SYMBOL DESCRIPTION EXT_MSTR2_SCL Reserved EXT_MSTR2_SDA Reserved Specifications subject to change without notice 18 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 19 Backlight Brightness R pin WIP BVR_B Backlight Brightness VR pin B (470 ohm resistor to +5V Vcc) Ground MENU OSD menu Specifications subject to change without notice 19 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 20 Positive differential LVDS data bit A4 Ground Ground Ground Ground Ground Ground No connection No connection No connection No connection No connection Specifications subject to change without notice 20 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 21 USB Data - USB Data + Ground PP2 – Alternate 12V/24VDC input power supply DESCRIPTION +12VDC / 24VDC in Ground Specifications subject to change without notice 21 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 22 PP5 – 12V/24VDC input power supply DESCRIPTION +12V / +24VDC Ground * All connectors used may use the compatible type. Specifications subject to change without notice 22 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 23: Controller Dimensions

    CAUTION: Ensure adequate insulation is provided for all areas of the PCB with special attention to high voltage parts such as the inverter. Specifications subject to change without notice 23 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 24: Application Notes

    This can then be matched with function controls connected to CNC1 pins 4 & 3 or 5: see table. CNC1 DESCRIPTION VR A VR WIP VR B Specifications subject to change without notice 24 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 25 3.6 V 10 K 4.8 V So this circuit could provide Brightness adjust voltage ranging from 0V to 5V. Specifications subject to change without notice 25 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 26: Troubleshooting

    Generally after common sense issues have been resolved we recommend step by step substitution of known working parts to isolate the problem. Specifications subject to change without notice 26 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 27: Specifications

    # - Equipment used : Leo Bodnar Electronics Video Signal Input Lag Tester. Controller input port measured based on HDMI port and connect with a Samsung LTM230HT10 (1920x1080) panel. Specifications subject to change without notice 27 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 28 79.976 Digital Separate Sync 75Hz SX_75 1280x1024 79.976 Sync On Green 75Hz UX_60 1600x1200 75.000 Digital Separate Sync 60Hz Specifications subject to change without notice 28 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 29 1440x900 60Hz 1080p59.94 1600x900 60Hz 1080p50 1600x1200 60Hz 1080p30 1680x1050 60Hz 1080p29.97 1920x1200 60Hz 1080p25 1080p24 2560x1600 60Hz 1080p23.976 Specifications subject to change without notice 29 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 30 1080p23.98 (4:2:2) 1080psf30 (4:2:2) 1080psf29.97 (4:2:2) 1080psf25 (4:2:2) 1080i60 (4:2:2) 1080i59.94 (4:2:2) 1080i50 (4:2:2) 1080p60 (4:2:2) 1080p59.94 (4:2:2) 1080p50 (4:2:2) Specifications subject to change without notice 30 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 31: Appendix Ii - Rs-232 Control Protocols

    The RS-232 program can be custom-made to fit for application or it can be used the serial control program, like Accessport, Telix or Serial Utility program developed by DigitalView. Please contact your local support for information. Specifications subject to change without notice 31 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 32 = 0x00~ 0x64 (0~100%) “?” Query Default: 0x32 (50%) Frequency 0x8b, Set frequency = Graphic mode H active size (in Specifications subject to change without notice 32 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 33 “B” – No function “E” – Aspect Ratio “F” – Rotate “G” – Hue “H” – Brightness “I” – Auto Adjust Specifications subject to change without notice 33 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 34 “r” | “R” | Reset nn: 0x00~ 0x64 (0~100) “?” Query Default: 0x64 “m” Maximum query “n” Minimum query Specifications subject to change without notice 34 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 35 Set On or Off “0” – Off (Default) “0” | “1” | “1” – On “R” | “r” Reset ”?” Specifications subject to change without notice 35 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 36 Number firmware version no. “VV.YY.ZZ.AA” Reset to Factory 0xce Reset all parameters to “1” – successful. Defaults default value Specifications subject to change without notice 36 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 37 0x71 0x52 0x72 0x53 0x73 0x54 0x74 0x55 0x75 0x56 0x76 0x57 0x77 0x58 0x78 0x59 0x79 0x5A 0x7A Specifications subject to change without notice 37 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 38: Appendix Iii - Mapping Definition

    Appendix III – Mapping definition  Definition of Mapping A :  Definition of Mapping B : Specifications subject to change without notice 38 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 39  Definition of VESA : Specifications subject to change without notice 39 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 40  Definition of JEIDA : Specifications subject to change without notice 40 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 41: Appendix Iv - Auto Color Gain

    Gain function can be used. This function will reset the stored RGB values to a set of approximate values. Specifications subject to change without notice 41 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 42: Appendix V - Dv Remote Control Unit Work For Hx-2560-Sdi

    Press this button in the non OSD menu display mode to select HDMI 1 source. Toggle between PIP mode and 1P mode. Specifications subject to change without notice 42 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 43: Appendix Vi - Pip Mix Table

       HDMI2 (CN2)      Displayport (CN20)      HD/SDI (J4) Specifications subject to change without notice 43 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 44: Appendix Vii - Light Sensor Function Work For Hx-2560-Sdi

    HX-2560-SDI via CN6 connector or use the light sensor cable P/N 426321940- 3 as shown below : Digital View provides a user-friendly software program (TCP-IP Serial Utility V1.13 or later revision) can set thresholds for ambient light and the LCD panel backlight adjustment.
  • Page 45 TRADEMARKS The following are trademarks of Digital View Ltd:  Digital View  HX-2560-SDI Specifications subject to change without notice 45 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 46: Contact Details

    6 How Ming Street Kwun Tong Hong Kong Tel: (852) 2861 3615 Fax: (852) 2520 2987 Sales: hksales@digitalview.com WEBSITE www.digitalview.com Specifications subject to change without notice 46 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
  • Page 47: Revision History

    28 June 2023 1.50 Add the ‘auto source seek’ and ‘setup source seek’ section in the OSD menu page. Specifications subject to change without notice 47 of 47 © Digital View Ltd – Doc Ver 1.50: 28 June, 2023 Page...
