Digital View DD-1920-HDMI Instructions Manual

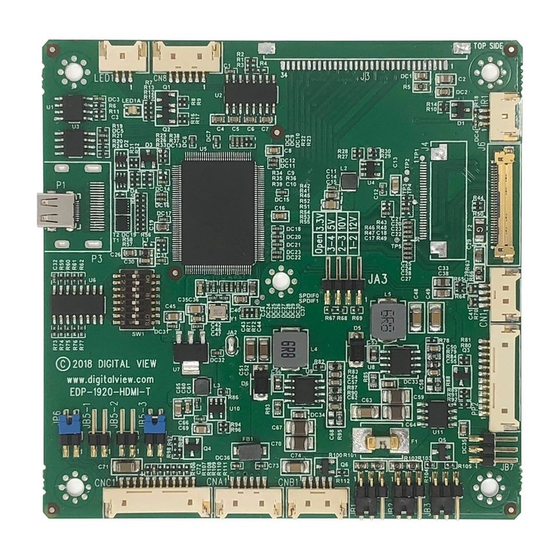

Hdmi interface controller for tft panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CONTENTS
Page: 2. Introduction, How to Proceed, Usage Note, Disclaimer
3. System design - Diagram of a suggested system
4. Assembly notes - Important information about system elements
5. Connection & Operation - How to use the controller
9. Connectors, pinouts & jumpers - Essential connection information
20Specifications
30. Warranty, Caution & Limitation of Liability, Trademarks
It is essential that these instructions are read and understood before connecting or
powering up this controller.
HDMI INTERFACE CONTROLLER
FOR TFT PANEL
Model: DD-1920-HDMI
Part number: 41730010X-3
INSTRUCTIONS
Page 1 of 31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD-1920-HDMI and is the answer not in the manual?

Questions and answers

Related Manuals for Digital View DD-1920-HDMI

Summary of Contents for Digital View DD-1920-HDMI

  • Page 1: Table Of Contents

    26. Appendix III – Appendix III – DDC/CI support at HDMI port 27. Appendix IV - Mapping definition 28. Appendix V – DV remote control unit work for DD-1920-HDMI 30. Warranty, Caution & Limitation of Liability, Trademarks 31. Contact details It is essential that these instructions are read and understood before connecting or powering up this controller.
  • Page 2 Introduction Designed for LCD monitor and other flat panel display applications, the DD-1920-HDMI controller provides easy to use HDMI interface controller for:  TFT (active matrix) LCDs with LVDS interface of 1920x1200, 1920x1080, 1920x480, 1680x1050, 1600x1200, 1400x1050, 1366x768, 1280x1024, 1280x800, 1280x768, 1024x768, 800x600, 800x480, 640x480, 480x640 resolution ...
  • Page 3 Function controls cable IR sensor (Optional) RS-232 control interface 10. HDMI signal source 11. Audio output (Stereo) 12. Power input (12VDC) Digital View offers a range of accessories such as listed above, to make up complete display solution. Page 3 of 31...
  • Page 4 ASSEMBLY NOTES This controller is designed for monitor and custom display projects using 1920 x 1200, 1920 x 1080, 1920 x 480, 1680x1050, 1600x1200, 1400x1050, 1440x900, 1366x768, 1280x1024, 1280x800, 1280x768, 1024x768, 1024x600, 800x600, 800x480, 640x480, 480x640 resolution TFT panels with a VGA, SVGA, XGA, SXGA, UXGA, WUXGA signal input.
  • Page 5 CONNECTION & OPERATION CAUTION: Never connect or disconnect parts of the display system when the system is powered up as this may cause serious damage. CONNECTION Connection and usage is quite straight forward (it is useful to have the relevant connection diagram available at this time): LCD panel &...
  • Page 6 LCD DISPLAY SYSTEM SETTINGS NOTE: By way of explanation the following refers to a set of sample buttons that may be obtained as an option. In addition to power on/off and connection for backlight brightness the controller provides an On Screen Display of certain functions which are controlled by 5 momentary type buttons (analog VR type) or 8 momentary type buttons (digital type): Controls Analog VR type...
  • Page 7 OSD Functions Image Brightness Increase/decrease brightness level. Press – or + (- + ) Total : 100 steps Contrast Increase/decrease contrast level. Press – or + (- + ) Total : 100 steps Sharpness Increase/decrease sharpness level. Press – or + (- + ) Total : 8 steps Color Color temp...
  • Page 8 Sound Mute Mute Output Select audio output port Speakers : via CN1 & J1 connector SPDIF : via CN11 connector System Timer : OSD Timeout in seconds 3 sec 6 sec 12 sec Always On Rotation : OSD menu rotation in degree Position : Adjust OSD menu position Transparency : Set OSD transparency...
  • Page 9 CONNECTORS, PINOUTS & JUMPERS The various connectors are: Summary: Connectors Purpose Description Audio output (Stereo) from HDMI JST 4-way, S4B-ZR-SM4A (Mating type : ZHR-4) (Matching connection cable P/N 426685400-3) Serial control Molex 53261-0671, 6 ways 1.25mm pitch (Mating type : Molex 51021-0600) (Matching connection cable P/N 426171800-3) CNA1 Auxiliary power output...
  • Page 10 Summary: Jumpers setting Purpose Note On board +5V logic power enable 1-3 & 2-4 closed, factory set, do not remove Panel power voltage select See panel voltage setting table 1 CAUTION: Incorrect setting will cause panel damage Backlight brightness voltage range 1-2 closed = 3.3V max 2-3 closed = 5V max Backlight inverter on/off control –...
  • Page 11 DIP Switch selection – SW2 Pos #1 Pos #2 Pos #3 Pos.#4 Description Panel resolution For WUXGA panel Samsung LTM220CS01 1920x1200 AU Optronics B170UW02 V0 1920x1200 AU Optronics M215HW01 1920x1080 Samsung LTM230HT01 1920x1080 Samsung LTI400HA01 1920x1080 For UXGA panel NEC NL160120BC27-14 1600x1200 For WXGA panel Samsung LTA260W2-L01...
  • Page 12 Pos #5 Pos #6 Pos #7 Description WUXGA UXGA SXGA WXGA SVGA VGA / WVGA Others SW1 Pos 8 = Reserved. DIP switch selection – SW1 Pos. # Function Description Panel pixel format OFF : Double Pixel ON : Single Pixel LVDS data mapping select ON : Mapping A (LVDS panel) OFF : Mapping B (LVDS panel)
  • Page 13 CN1 – Audio output (Stereo) from HDMI : JST 4-way, S4B-ZR-SM4A (Mating type : ZHR-4) SYMBOL DESCRIPTION AMP L- Audio Left channel (Negative) AMP L+ Audio Left channel (Positive) AMP R- Audio Right channel (Negative) AMP R+ Audio Right (Positive) CN8 –...
  • Page 14 J1 – HDMI connector: JST SM20B-SRDS (Matching type : JST SHDR-20V-S-B) SYMBOL DESCRIPTION Ground Ground RXC+ TMDS Data C+ RXC- TMDS Data C- RX0+ TMDS Data 0+ RX0- TMDS Data 0- RX1+ TMDS Data 1+ RX1- TMDS Data 1- RX2+ TMDS Data 2+ RX2- TMDS Data 2-...
  • Page 15 TXB1+ Positive differential LVDS data bit B1 TXB1- Negative differential LVDS data bit B1 TXB0+ Positive differential LVDS data bit B0 TXB0- Negative differential LVDS data bit B0 Ground LED1 – Dual color LED connector for controller status, JST 3-way, S3B-ZR-SM4A (Mating type : JST ZHR-3) DESCRIPTION Green LED pin (anode)

  • Page 16: Controller Dimensions

    CONTROLLER DIMENSIONS The maximum thickness of the controller is 13.95mm (measured from bottom of PCB to top of components, including any underside components & leads). We recommend clearances of:  5mm from bottom of PCB - if mounting on a metal plate we also recommend a layer of suitable insulation material is added to the mounting plate surface.

  • Page 17: Application Notes

    APPLICATION NOTES USING THE CONTROLLER WITHOUT BUTTONS ATTACHED This is very straightforward by following the steps below :  Firstly setup the controller/display system with the buttons. With controls attached and display system active make any settings for colour and image position as required then switch everything off.
  • Page 18 Design Guideline for making VR circuitry : Signal description / Notes : 1) R1 : 470ohm on board 2) RPOT is an external potentiometer (in-line dip style) that can be plugged directly into CNC1 pins 3,4,5. RPOT must be supplied / installed by user. 3) BVR_B : Voltage tapped from “top”...

  • Page 19: Troubleshooting

    TROUBLESHOOTING General A general guide to troubleshooting a flat panel display system it is worth considering the system as separate elements, such as:  Controller (jumpers, PC settings)  Panel (controller, cabling, connection, panel, PC settings)  Backlight (inverter, cabling, backlight tubes) ...
  • Page 20 SPECIFICATIONS Panel compatibility 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1400x1050, 1440x900, 1366x768, 1280x1024, 1280x800, 1280x768, 1024x768, 1024x600, 800x600, 800x480, 640x480, 480x640 resolution TFT LVDS LCD‟s support. No. of colours Up to 3 x 8 bit providing 16.7 million colours. Vertical refresh rate WUXGA, UXGA, WXGA, SXGA, XGA, SVGA, VGA resolution up to 60Hz.

  • Page 21: Appendix I - Mode Support Table

    Appendix I – Mode Support Table HDMI (P3) port : Mode Resolution Horizontal Vertical [MHz] freq freq [Hz] [KHz] V_60 640x480 60Hz 25.175 31.469 59.940 SV_60 800x600 60Hz 40.000 37.879 60.317 X_60 1024x768 60Hz 65.000 48.363 60.004 SX_60 1280x1024 60Hz 63.81 60.020 UX_60...

  • Page 22: Appendix Ii - Rs-232 Control Protocols

    Appendix II – RS-232 control protocols RS-232 Serial control (Baud rate 2400, 8 bits, 1 stop bit and no parity) Physical connection : Controller side Computer side Connector interface : CN8 Connector interface : Serial port Mating connector : Molex 51021-0600 Mating connector : DB9 Female Mating face of CN8 Mating face of RS-232 DB9 Male...
  • Page 23 nn | “+” | “-“ | “r” | “00” – Continuous. timeout value/increment/decrement “R” | “?” Value – Round up to Reset Query nearest available step. If value > max available step, set it to the max available step. “0” “0” – Always On. “0”...
  • Page 24 function when JB5 sets 3-4 closed * Apply for inverter control voltage in range of 0~5V. Each step interval is in 1 Backlight on “1” / off “0”. Backlight on/off 0xe1, Set backlight brightness = “0” | control Disable backlight “1”...
  • Page 25 Other control Function Command Description Acknowledge (if enabled) 0xc1, “0” | “1” “0” – acknowledge Select RS-232 Disable/enable command acknowledge acknowledge. disabled. “1” – acknowledge enabled. “0” – not available. Command 0xc4, n Check whether a command “1” – available. availability is available.

  • Page 26: Appendix Iii - Appendix Iii - Ddc/Ci Support At Hdmi Port

    Appendix III – DDC/CI support at HDMI port This controller (start from V1.07.00 or later firmware revision) supports the following DDC/CI commands at HDMI port : Brightness Contrast RGB Color Input Source (HDMI) Power States (On, Standby, Sleep)  On mode: Always on. Display No sync message and never goes off when no signal ...

  • Page 27: Appendix Iv - Mapping Definition

    Appendix IV – Mapping definition  Definition of Mapping A : Page 27 of 31...
  • Page 28  Definition of Mapping B : Page 28 of 32...

  • Page 29: Appendix V - Dv Remote Control Unit Work For Dd-1920-Hdmi

    Appendix V – DV remote control unit work for DD-1920-HDMI P/N 559000106-3 : DigitalView remote control unit (without DV logo silk screen printing) P/N 559000105-3 : DigitalView remote control unit (with DigitalView logo silk screen printing) BUTTON FUNCTION POWER BUTTON Soft power ON/OFF button.
  • Page 30 The manufacturer‟s liability for damages to customer or others resulting from the use of any product supplied hereunder shall in no event exceed the purchase price of said product. TRADEMARKS The following are trademarks of Digital View Ltd:  Digital View ...

  • Page 31: Contact Details

    Tel: (852) 2861 3615 Fax: (852) 2520 2987 Sales: hksales@digitalview.com WEBSITE www.digitalview.com Brand names belong to their respective owners. Specification subjects to change without notice. _________________________________________________________________________________________________________________ issue: May 2015 (DD-1920 -HDMI–1x manual.doc) © Digital View Ltd 2015 Page 31 of 31...
