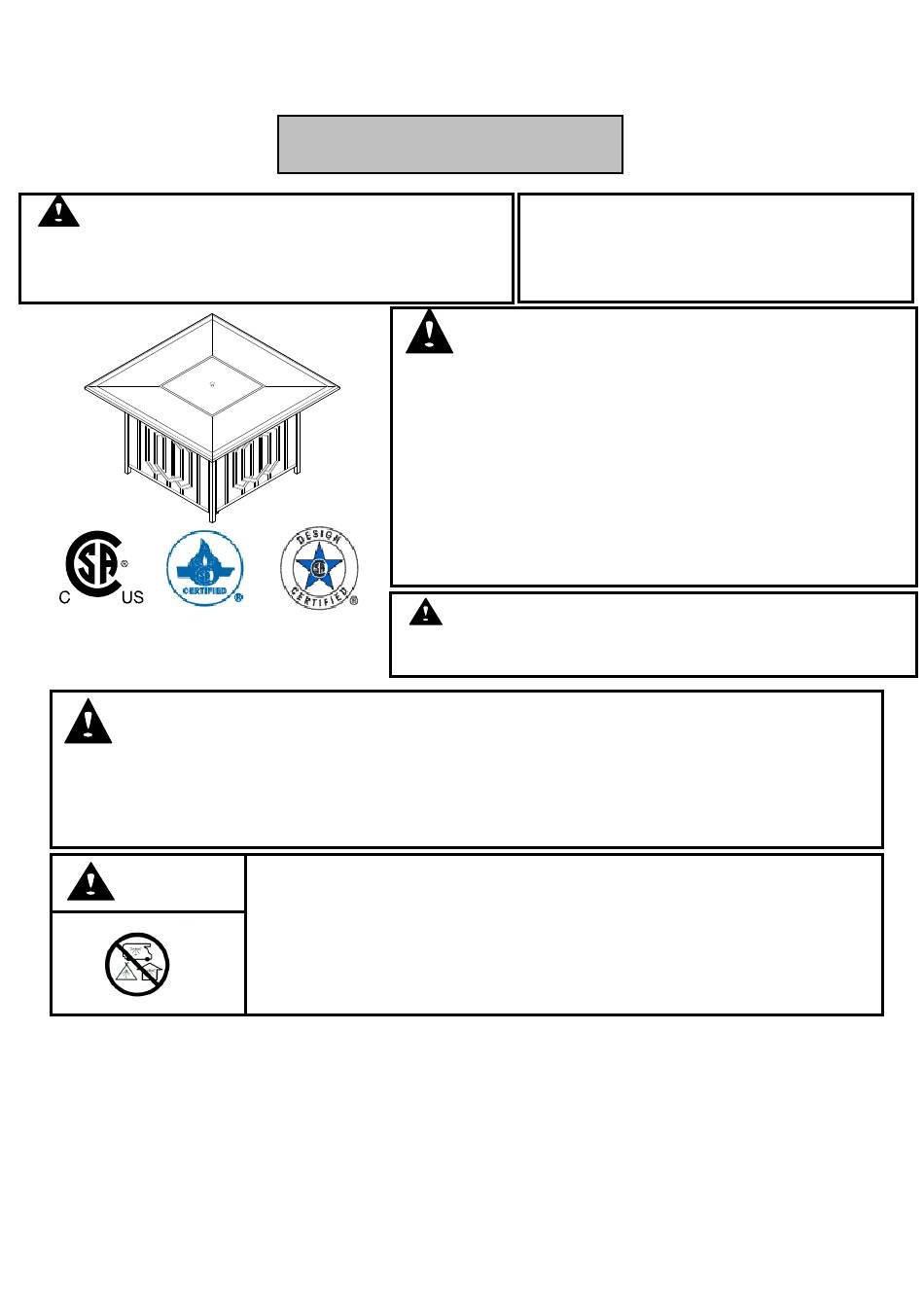

WARNING: For Outdoor Use Only.
Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Propane cylinder required (not included)
1 AA 1.5V battery required (not included)
WARNING
Do not store or use gasoline, or other flammable vapors and liquids, in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
DANGER
This appliance complies with "ANSI Z21.97-2017/CSA 2.41-2017, Outdoor Decorative Gas Appliances.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
For Outdoor Use only. Not for Commercial Use.
Country of Origin: China
ITEM No.: A208019801
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area immediately
4. After leaving the area, call your gas supplier or fire
followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
DANGER
FIRE OR EXPLOSION HAZARD
department.
Failure to follow these instructions could result in
fire or explosion, which could cause property
damage, personal injury, or death.
WARNING: If the information in this manual is not
Production Number: xxxxxxxxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A208019801 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunjoy A208019801

  • Page 1 ITEM No.: A208019801 WARNING: For Outdoor Use Only. INSTALLER: Leave this manual with the Installation and service must be performed by a appliance. qualified installer, service agency, or the gas CONSUMER: Retain this manual for future supplier. reference. DANGER FIRE OR EXPLOSION HAZARD If you smell gas: 1.
  • Page 2: Table Of Contents

    Keep this manual to consumer for installer and consumer future reference/use. We would like to hear from you with any comments or suggestions. In the continental U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 at any time. You can also send us an email to customer.care@sunjoygroup.com...
  • Page 3: Specification

    SPECIFICATION HD PROVENCE 5PC GAS FIRE PIT TABLE Product name Model NO. A208019800 Rated Heat Output 37,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.9mm Gas Supply Pressure Max.250 PSI Min.25 PSI IMPROTANT SAFETY INFORMATION AND PRECAUTION ...
  • Page 4  The pressure regulator and hose assembly provided with the appliance must be used. The replacement part must be the same as the part specified by manufacturer.  The assembly of LP-gas and leak checking please refer to the “Gas connection” on page “leak Test”...
  • Page 5: Expanded View

    EXPANDED VIEW Country of Origin: China 5 of 19...
  • Page 6: Parts List

    Parts List Label Part Number Description Part Image P003100089 P002100349 Table top P002500120 Fire bowl P005400427 Leg1 P005400428 Leg2 P004000241 Back panel P003800415 Side panel1 P006700058 Tank holder P006600020 Lava rock Country of Origin: China 6 of 19...
  • Page 7 P003800416 Side panel2 P004100114 Panel P005400429 Leg1 P005400430 Leg2 P005100056 Chain P005100294 Hardware Pack Label Part Number Description Part Image Bolt M6*15 H010110017 Bolt M6*10 H010110010 Bolt M4*8 H010110004 Bolt M6*30 H010020023 Flat washer H050010028 Flat washer H050010065 If you want to replace the parts listed, please contact Customer Service Center: 1(866) 578-6569. Country of Origin: China 7 of 19...
  • Page 8: Installation

    INSTALLATION Country of Origin: China 8 of 19...
  • Page 9 Country of Origin: China 9 of 19...
  • Page 10 Country of Origin: China 10 of 19...
  • Page 11 Country of Origin: China 11 of 19...
  • Page 12 Country of Origin: China 12 of 19...
  • Page 13 Country of Origin: China 13 of 19...
  • Page 14 Country of Origin: China 14 of 19...
  • Page 15 Country of Origin: China 15 of 19...
  • Page 16: Location

    LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface.
  • Page 17: Operation

    Fig 7 Fig.7 Fig 8 OPERATION: LEAK TEST !!!WARNING!!!  Do not use an open flame to check for leaks.    Do not smoke during testing.    Do not test indoors.   A leak check must be performed whenever the gas cylinder is replaced. ...
  • Page 18: Storage And Maintenance

    While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. NOTE: The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7.
  • Page 19: Trouble Shooting

    Clogged or dirty burner Clean burner ports ports If you want to replace the parts listed, please contact SUNJOY Customer Service Center (1(866) 578-6569). LIMITED WARRANTY: Subject to the conditions set out below, this product is warranted to the original purchaser to be free from...
  • Page 20 ITEM No.: A211000701 WE HAVE YOU IN MIND, LET US SERVE YOU! Questions? Issues? CONTACT US 24 hours / 7 days a week www.sunjoyonline.com customer.care@sunjoygroup.com 1-(866)-578-6569 Country of Origin: China Production Number: xxxxxxxxxx...
