Propane tank not included
AA battery needed, not included
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any
other appliance.
DANGER
This appliance complies with "ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.
Production Number: XXXXXXXX

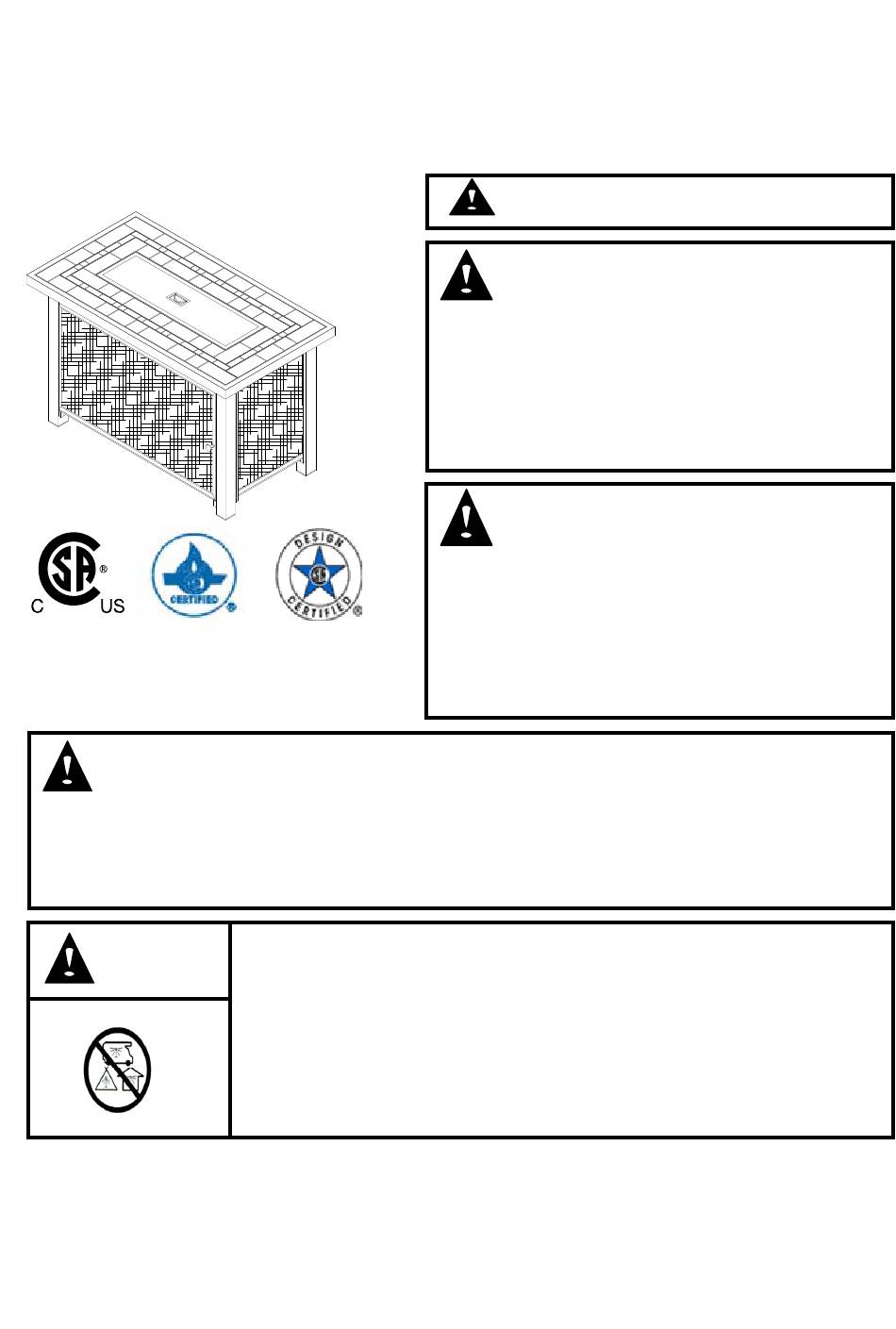

ASSEMBLY INTRUCTIONS
ITEM#：A208004100
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper,
tent, car or home.
Made In China
WARNING: For Outdoor Use Only.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
1 / 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A208004100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunjoy A208004100

Summary of Contents for Sunjoy A208004100

  • Page 1 ASSEMBLY INTRUCTIONS ITEM#：A208004100 WARNING: For Outdoor Use Only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.

  • Page 2: Table Of Contents

    Trouble shooting ……………………………………………………………………………… Limited warranty GENERAL INFORMATION Important: For technical assistance on assembly or replacement parts, please call Sunjoy Industries at 1(866) 578-6569 from 8:00 AM EST to 8:00 PM PST. You may email to customer.care@sunjoygroup.com or visit www.sunjoyonline.com to...

  • Page 3: Specification

    SPECIFICATION Hartnell rectangular LP fire pit table Product name Model NO. L-FT1097PST-A Rated Heat Output 30,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.74mm Gas Supply Pressure Max.250 PSI IMPROTANT SAFETY INFORMATION AND PRECAUTION ...
  • Page 4  The pressure regulator and hose assembly provided with the appliance must be used. The replacement part must be the same as the part specified by manufacturer.  The assembly of LP-gas and leak checking please refer to the “Gas connection” on page 12 and “leak Test”...

  • Page 5: Expanded View

    EXPANDED VIEW Production Number: XXXXXXXX Made In China 5 / 13...

  • Page 6: Parts List

    PARTS LIST Label Part Number Description P20707A01142 P12325A01142 Table Top P20211A01098 Fire Bowl P31413A01142 Leg 1 P31414A01142 Leg 2 P31415A01142 Leg 3 P31416A01142 Leg 4 P21221A01142 Rear Panel P20806A01142 Shelf P20919A01142 Door P21135A01142 Side panel P90007A01142 Handle P99923C01002 Lava Rock 1 (2.3 KG) HARDWARE PACK Label...

  • Page 7: Installation

    INSTALLATION Installation will be much easier by two or more people. Step1： Screw Handle (I) on Door (G) . Step 2： Attach Leg 2 (D2), Leg 4 (D4) and Door (G) together with Bolt (BB) and Flat washer (DD). (Note: the two holes at the middle of the door face down).
  • Page 8 Step 4： Attach Shelf (F) to Leg 3/4 (D3, D4) by Bolt (BB) and Flat washer (DD) through the holes on the shelf as Fig 4-1 shows. DO NOTE tighten at this step. Attach Shelf (F) to Rear panel (E) and Door (G) by Bolt (AA) and Flat washer (DD) through the holes on the shelf as Fig 4-2 shows.
  • Page 9 Step 6： Put Table top (B) and Bowl (C) upside down. Attach Fire bowl (C) to Table top (B) by Bolt (CC) and Flat washer (DD) as Fig. 6 shows. Step 7: Attach Table top (B) to the assembled frame. Attach Table 1/2/3/4 (D1/D2/D3/D4) by Bolt (AA) and flat washer (DD).

  • Page 10: Location

    LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. NOTE: Do not place this appliance on grass or dirt area.

  • Page 11: Operation

    Fig.7 Fig 8 Fig 7 OPERATION: LEAK TEST !!!WARNING!!!  Do not use an open flame to check for leaks. 　  Do not smoke during testing. 　  Do not test indoors. 　  A leak check must be performed whenever the gas cylinder is replaced. 1.

  • Page 12: Storage And Maintenance

    NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7.

  • Page 13: Trouble Shooting

    Clogged or dirty burner ports Clean burner ports If you want to replace the parts listed, please contact SUNJOY Customer Service Center. LIMITED WARRANTY: Subject to the conditions set out below, this product is warranted to the original purchaser to be free from defects in workmanship and materials for one (1) year from the date of purchase.
