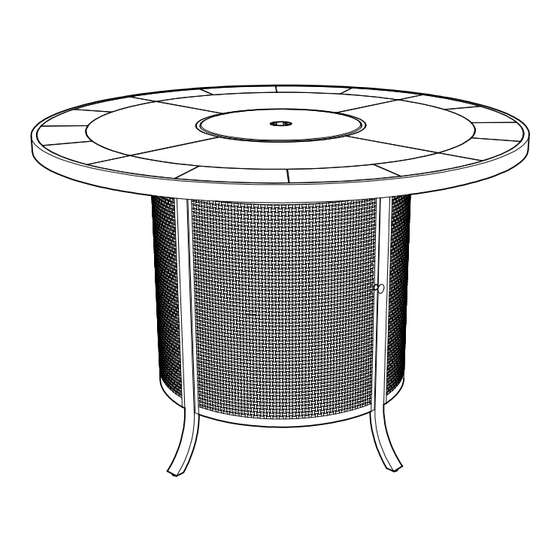

Grandview Fire Pit High Dining Table
WARNING: For Outdoor Use Only.
Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Propane cylinder required (not included)
1 AA 1.5V battery required (not included)
WARNING
Do not store or use gasoline, or other flammable vapors and liquids, in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
DANGER
This appliance complies with "ANSI Z21.97-2017/CSA 2.41-2017, Outdoor Decorative Gas Appliances.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
For Outdoor Use only. Not for Commercial Use.
Assembly Instruction
Item#
SKU#
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area immediately
4. After leaving the area, call your gas supplier or fire
followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
A208001100
810405352
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
DANGER
FIRE OR EXPLOSION HAZARD
department.
Failure to follow these instructions could result in
fire or explosion, which could cause property
damage, personal injury, or death.
WARNING: If the information in this manual is not
1 of 18
Advertisement
Table of Contents
Related Manuals for Sunjoy Grandview A208001100
Summary of Contents for Sunjoy Grandview A208001100
- Page 1 Grandview Fire Pit High Dining Table Assembly Instruction A208001100 Item# SKU# 810405352 WARNING: For Outdoor Use Only. INSTALLER: Leave this manual with the Installation and service must be performed by a appliance. qualified installer, service agency, or the gas CONSUMER: Retain this manual for supplier.
-
Page 2: Table Of Contents
Keep this manual to consumer for installer and consumer future reference/use. We would like to hear from you with any comments or suggestions. In the continental U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 at any time. You can also send us an email to biglots@sunjoygroup.com... -
Page 3: Specification
SPECIFICATION Grandview Fire Pit High Dining Table Product name Model NO. A208001100 Rated Heat Output 38,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.9mm Gas Supply Pressure Max.250 PSI Min.25 PSI IMPROTANT SAFETY INFORMATION AND PRECAUTION ... - Page 4 The pressure regulator and hose assembly provided with the appliance must be used. The replacement part must be the same as the part specified by manufacturer. The assembly of LP-gas and leak checking please refer to the “Gas connection” on page “leak Test”...
-
Page 5: Expanded View
EXPANDED VIEW 5 of 18... -
Page 6: Parts List
Parts List Label Part Number Part Number Description Part Image P20712A01175 P003100062 P31333A01175 P002100208 Table top P22003A01178 P002500086 Fire bowl P21229A01175 P004000117 Rear door P21144A01175 P003800241 Side panel 1 P21145A01175 P003800242 Side panel 2 P20923A01175 P004100081 Door P20809A01175 P006700044 Cylinder rack P99903D01002 P006600020 Lava rock(1KG) - Page 7 Hardware Pack Label Part Number Description Part Image Bolt M6*15 H010020008 Bolt M6*20 H010020003 Flat washer H050010020 Wrench M6 H090010008 If you want to replace the parts listed, please contact Customer Service Center: 1(866) 578-6569. 7 of 18...
-
Page 8: Installation
INSTALLATION 8 of 18... - Page 9 9 of 18...
- Page 10 10 of 18...
- Page 11 11 of 18...
- Page 12 12 of 18...
- Page 13 13 of 18...
-
Page 14: Location
LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. -
Page 15: Operation
Fig.7 Fig 7 Fig 8 OPERATION: LEAK TEST !!!WARNING!!! Do not use an open flame to check for leaks. Do not smoke during testing. Do not test indoors. A leak check must be performed whenever the gas cylinder is replaced. ... -
Page 16: Storage And Maintenance
While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. NOTE: The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7. -
Page 17: Trouble Shooting
Clogged or dirty burner Clean burner ports ports If you want to replace the parts listed, please contact SUNJOY Customer Service Center (1(866) 578-6569). LIMITED WARRANTY: Subject to the conditions set out below, this product is warranted to the original purchaser to be free from... - Page 18 30 minutes. (Use the protective wire mesh screen over your lava rock and burner) It is rare that any crackling will happen on the first use, this is simply a precaution. For technical assistance or questions, call Sunjoy Group at 1(866) 578-6569 any time or email to biglots@sunjoygroup.com or visit www.sunjoyonline.com for more information or assistance.
Need help?
Do you have a question about the Grandview A208001100 and is the answer not in the manual?
Questions and answers

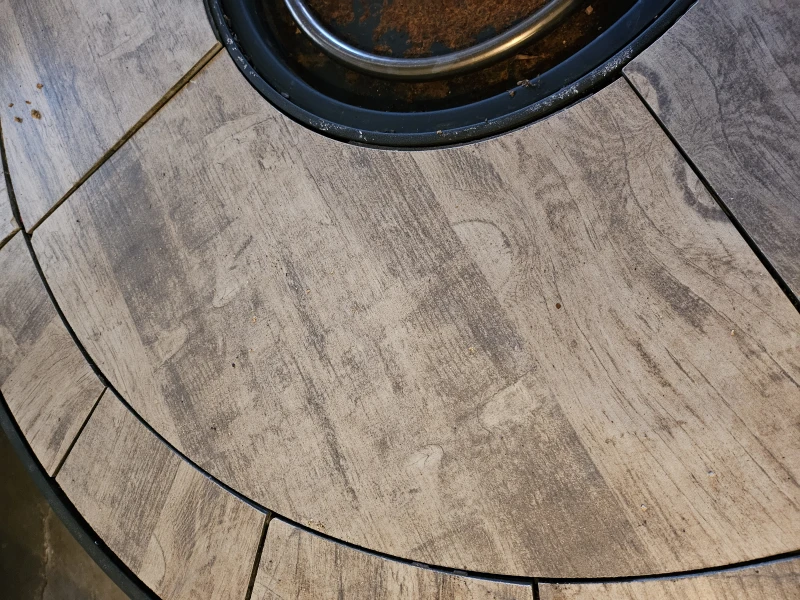

Have a few cracked tiles looking to have replaced for A208001100. Looking for 1 big one and 4 smaller ones
