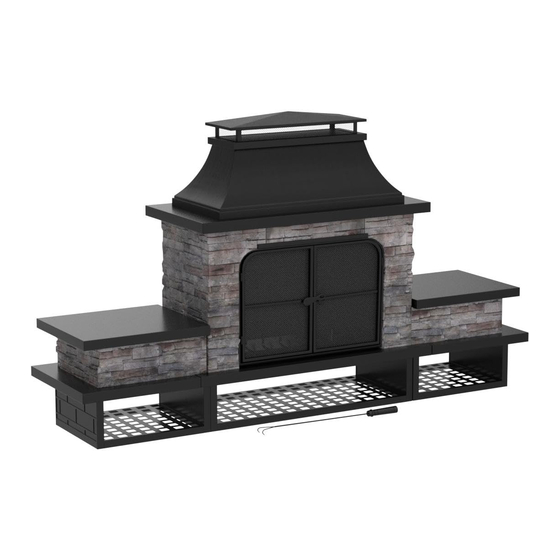

- Page 1 1 / 7 ASSEMBLY INSTRUCTION Item No.: A304001201 WE HAVE YOU IN MIND, LET US SERVE YOU! Questions? Issues? CONTACT US 24 hours / 7 days a week www.sunjoyonline.com customer.care@sunjoygroup.com 1-(866)-578-6569 Country of Origin: China...
- Page 2 2 / 7 Important Safety Instructions Warning! Please read and understand this entire manual before attempting to assemble or operate this product. Some parts may contain sharp edges. Please wear protective gloves during Caution! • This fireplace is intended for outdoor use only. NEVER LEAVE A FIRE UNATTENDED. • DO NOT use the fireplace to cook food. The fireplace is not designed for grilling food. • DO NOT allow children or pets near the fireplace without supervision. • DO NOT touch the surface of the fireplace while in use as it may cause burns. • NEVER burn in vehicles, tents or indoors. CARBON MONOXIDE HAZARD. • Use a poker and / or heat‐resistant gloves to open / close the mesh cover while in use. • DO NOT use water to extinguish as this is dangerous and can cause damage. • Burn only untreated wood logs in this fire bowl. •...
- Page 3 3 / 7 Exploded Drawing Country of Origin: China Production Number: XXXXXXXXXX...
- Page 4 4 / 7 Parts List Label Part Number Description Part Image P000900085 Chimney P000300048 P007900072 Body P002800026 Grate P003000013 Base P000100306 Ash Tray P002700035 Porker P000100307 Side Table Top P000100308 Upper Side Base P000100286 Lower Side Base ...
- Page 5 5 / 7 Hardware Pack Label Part Number Description Part Image H02015C11 Bolt M6*15 H19001C11 Flat washer M6 H00001C12 Wrench M6 Assembly Steps Fig.1: Put Grate (D) in Ash tray (G1), then insert Fig.2: Place Body (C) onto base (F1) the Ash tray (G1) into Base (F1). Country of Origin: China Production Number: XXXXXXXXXX...
- Page 6 6 / 7 Fig.3: Put top (B) on body (C) and chimney Fig.4: Attach upper side base (J) and lower (A) on top (B) in order as Fig.3 side base (K) with bolt (AA) and flat washer (BB), as Fig.4 Fig.6 Fig.5: Insert the assembled side base (K) into Fig.6: Put the side table top (I) on assumed side Body (C). base (J&K). (Note: The table top side without stone should face the body).Use Poker (H) as necessary. Now, your fireplace is ready for use. Country of Origin: China Production Number: XXXXXXXXXX...
- Page 7 • Allow fire to burn itself out. • DO NOT use water to extinguish as this is dangerous and can damage this fireplace. Cleaning • This fireplace should be cleaned on a regular basis to promote safer experience and long product life. • DO NOT attempt to clean this fireplace until the fire is COMPLETELY out and cool to touch. • DO NOT use oven cleaner or abrasive cleaner as this will damage the fire bowl. Storage • DO NOT move or store this fireplace until the fire is COMPLETELY out and cool to touch. • Store the fireplace in a dry location to maximize product life. • Store assembled fireplace in a location away from children and pets. LIMITED WARRANTY This limited warranty is extended to the original purchaser and applies to defects in material and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes. The manufacturer Sunjoy Group warrants this item is free of defects in material and workmanship for a period of ONE YEAR. If any defect is found, please call our Sunjoy Group customer service department at 1‐866‐578‐6569 or email at customer.care@sunjoygroup.com for help. The manufacturer Sunjoy Group will not cover transportation or delivery costs or compensate the individual or any outside party for assembling or disassembling the product. Country of Origin: China Production Number: XXXXXXXXXX...
