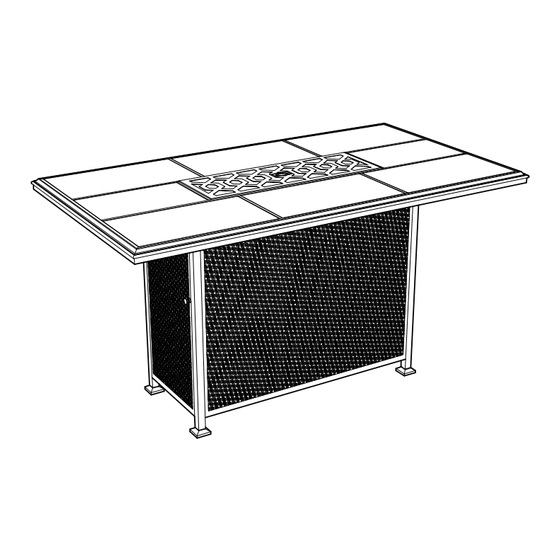

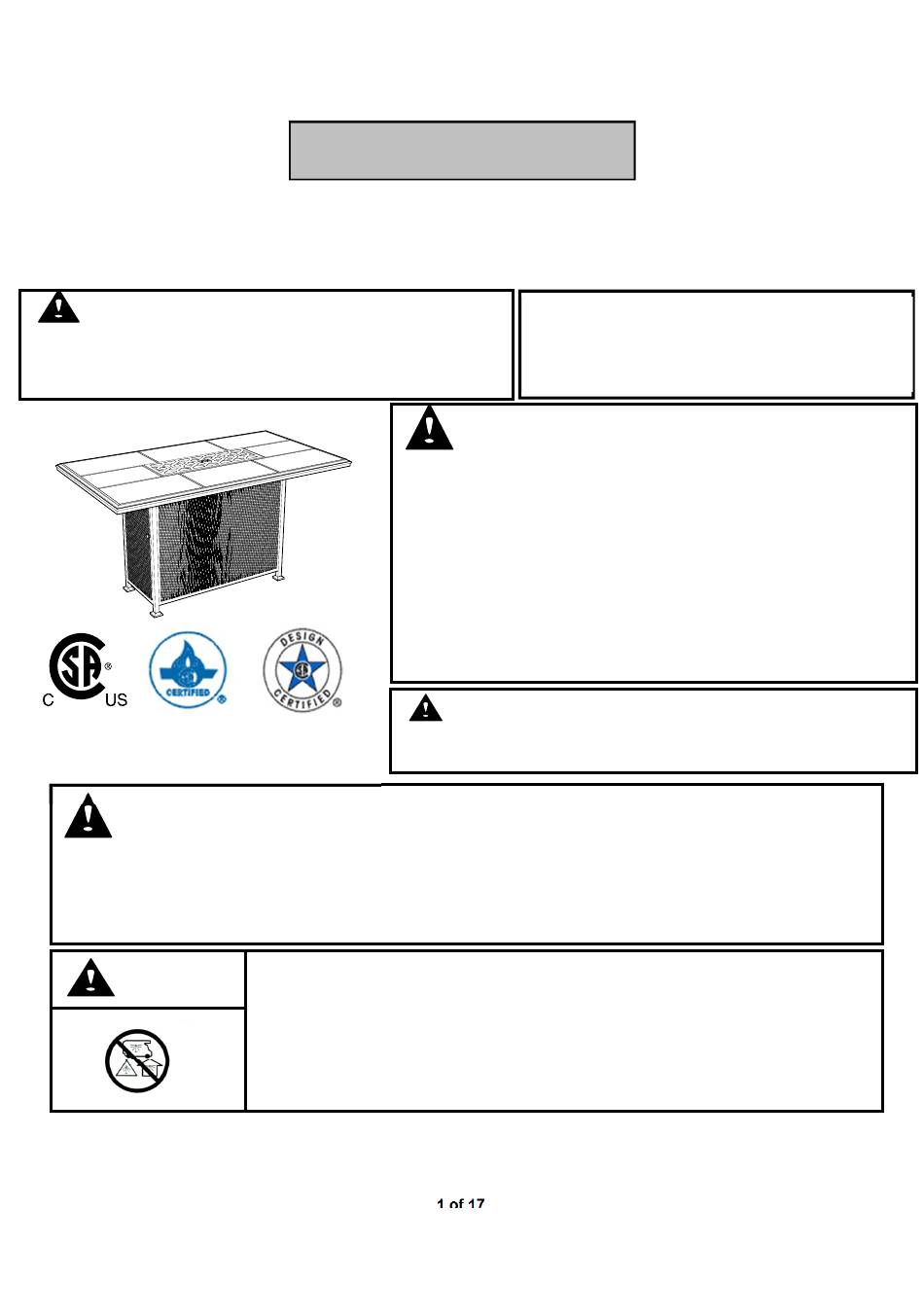

WARNING: For Outdoor Use Only.
Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Propane cylinder required (not included)
WARNING
Do not store or use gasoline, or other flammable vapors and liquids, in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
DANGER
This appliance complies with "ANSI Z21.97-2017/CSA 2.41-2017, Outdoor Decorative Gas Appliances.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
For Outdoor Use only. Not for Commercial Use.
ITEM No.:
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area immediately
4. After leaving the area, call your gas supplier or fire
followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
A208001002
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
DANGER
FIRE OR EXPLOSION HAZARD
department.
Failure to follow these instructions could result in
fire or explosion, which could cause property
damage, personal injury, or death.
WARNING: If the information in this manual is not
1 of 17

Advertisement

Table of Contents
loading

Summary of Contents for Sunjoy A208001002

  • Page 1 ITEM No.: A208001002 WARNING: For Outdoor Use Only. INSTALLER: Leave this manual with the Installation and service must be performed by a appliance. qualified installer, service agency, or the gas CONSUMER: Retain this manual for supplier. future reference. DANGER FIRE OR EXPLOSION HAZARD If you smell gas: 1.
  • Page 2: Table Of Contents

    Keep this manual to consumer for installer and consumer future reference/use. We would like to hear from you with any comments or suggestions. In the continental U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 at any time. 2 of 17...
  • Page 3: Specification

    SPECIFICATION Dining Product name Model NO. A208001002 Rated Heat Output 38,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.9mm Gas Supply Pressure Max.250 PSI Min.25 PSI IMPROTANT SAFETY INFORMATION AND PRECAUTION ...
  • Page 4 gas leak. Have the appliance inspected annually by a qualified service person.  The pressure regulator and hose assembly provided with the appliance must be used. The replacement part must be the same as the part specified by manufacturer.  The assembly of LP-gas and leak checking please refer to the “Gas connection” on page “leak Test”...
  • Page 5: Expanded View

    EXPANDED VIEW 5 of 17...
  • Page 6: Parts List

    Parts List Label Part Number Description Part Image P003100091 P002100356 Table top P002500069 Fire bowl P002400046 Back panel P002400047 Front panel P002400048 Side panel P004100115 Panel P005100075 Handle/door knob P006700038 Cylinder rack Lava rock(1 KG ) P006600020 P005100076 Chain 6 of 17...
  • Page 7 Hardware Pack Label Part Number Description Part Image Bolt M6*15 H010020011 Flat washer H050010020 Bolt M6*30 H010020023 Bolt M4*25 H030040007 Bolt M6*15 H010110016   Wrench M6 H090010017 If you want to replace the parts listed, please contact Customer Service Center: 1(866) 578-6569.  ...
  • Page 8: Installation

    INSTALLATION 8 of 17...
  • Page 9 9 of 17...
  • Page 10 10 of 17...
  • Page 11 11 of 17...
  • Page 12 12 of 17...
  • Page 13 13 of 17...
  • Page 14: Location

    LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface.
  • Page 15: Operation

    Fig 8 Fig 7 OPERATION: LEAK TEST !!!WARNING!!!  Do not use an open flame to check for leaks.    Do not smoke during testing.    Do not test indoors.   A leak check must be performed whenever the gas cylinder is replaced. ...
  • Page 16: Storage And Maintenance

    While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. NOTE: The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7.
  • Page 17: Trouble Shooting

    Clogged or dirty burner Clean burner ports ports If you want to replace the parts listed, please contact SUNJOY Customer Service Center (1(866) 578-6569). LIMITED WARRANTY: Subject to the conditions set out below, this product is warranted to the original purchaser to be free from...
