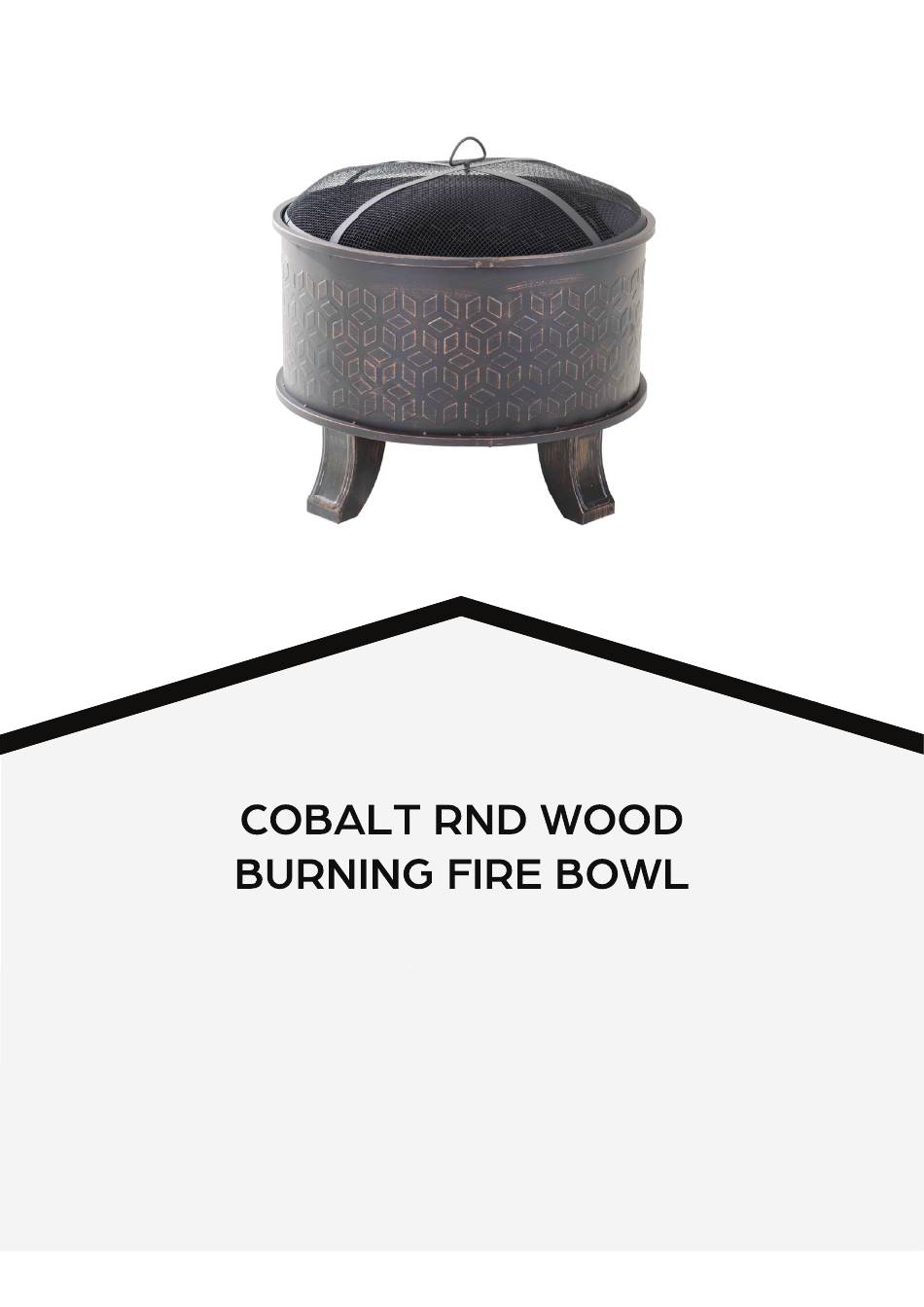

- Page 1 COBALT RND WOOD BURNING FIRE BOWL ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS ITEM#: A301002200 ITEM#: A301002200 SKU#: 810540923 SKU#: 810540923 Production Number: 2021200011 Production Number: 2021200011...
- Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: • Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. •...
- Page 3 EXPLODED DRAWING...
- Page 4 PARTS LIST Label Description Part Image Part Number...
- Page 5 HARDWARE LIST Label Part Number Description Part Image...
- Page 6 HELPFUL HINTS • Separating parts before starting Tool needed How many people needed for the installation...
- Page 7 STEP 1 Assembled View: Attach Fire Bowl(C) to Leg(D) with Bolt M6*15(AA) and Flat washer M6(BB),tighten all the Bolts.
- Page 8 STEP 2 Assembled View: Attach Screen Handle(E) to Mesh Screen(A) with Nut M6(CC); put the assembled Mesh Screen(A/E) on the Fire Bowl(C), and finally match the Poker(F).The product assembly is completed.
