Summary of Contents for Sunjoy A301002300

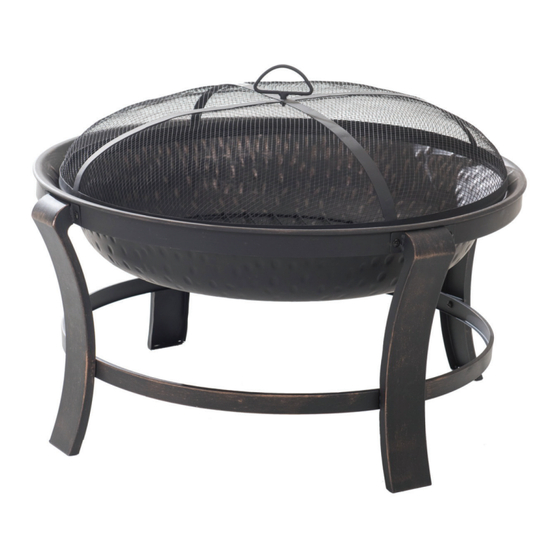

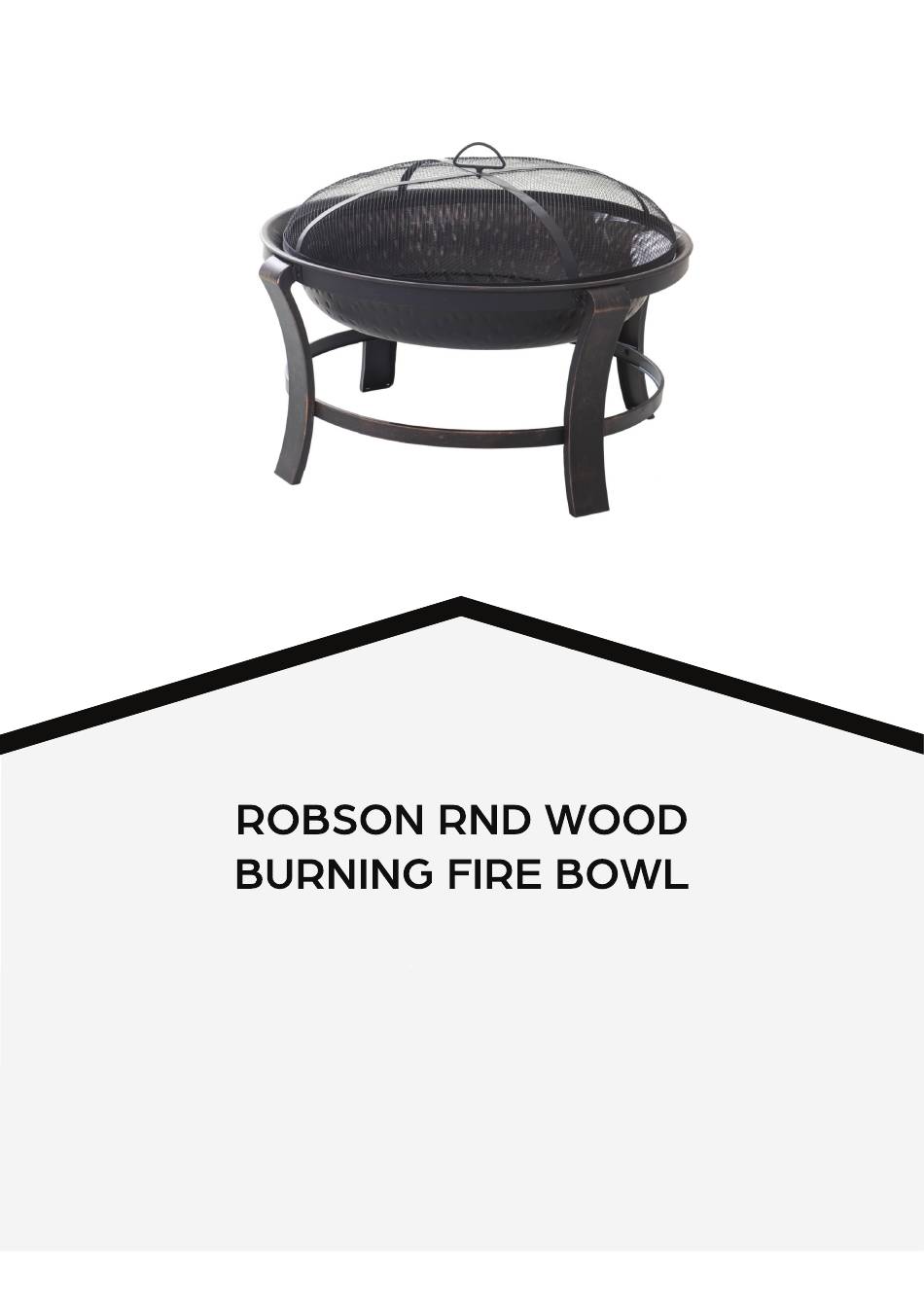

- Page 1 ROBSON RND WOOD BURNING FIRE BOWL ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS ITEM#: A301002300 ITEM#: A301002300 SKU#: 810540926 SKU#: 810540926 Production Number: 2021200011 Production Number: 2021200011...
- Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: • Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. •...
- Page 3 EXPLODED DRAWING...
- Page 4 PARTS LIST Label Description Part Image Part Number...
- Page 5 HARDWARE LIST Label Part Number Description Part Image...
- Page 6 HELPFUL HINTS • Separating parts before starting Tool needed How many people needed for the installation...
- Page 7 STEP 1 Assembled View: Attach Leg(G) to the Bowl(E) with Bolt M6*10(BB),Flat washer M6(CC) and Nut M6(AA),tighten the Bolts to 100% depth with Wrench M6(WW); Attach Leg(G) to Ring(F) with Bolt M6*20(DD) and Flat washer M6(CC),tighten all the Bolts.
- Page 8 STEP 2 Assembled View: Attach Screen Handle(A) to Mesh Screen(B) with Nut M6(AA); Put the Grate(D) into the Bowl(E), then put the assembled Mesh Screen(A/B) on the Bowl(E), and finally match the Poker(H).The product assembly is completed.
