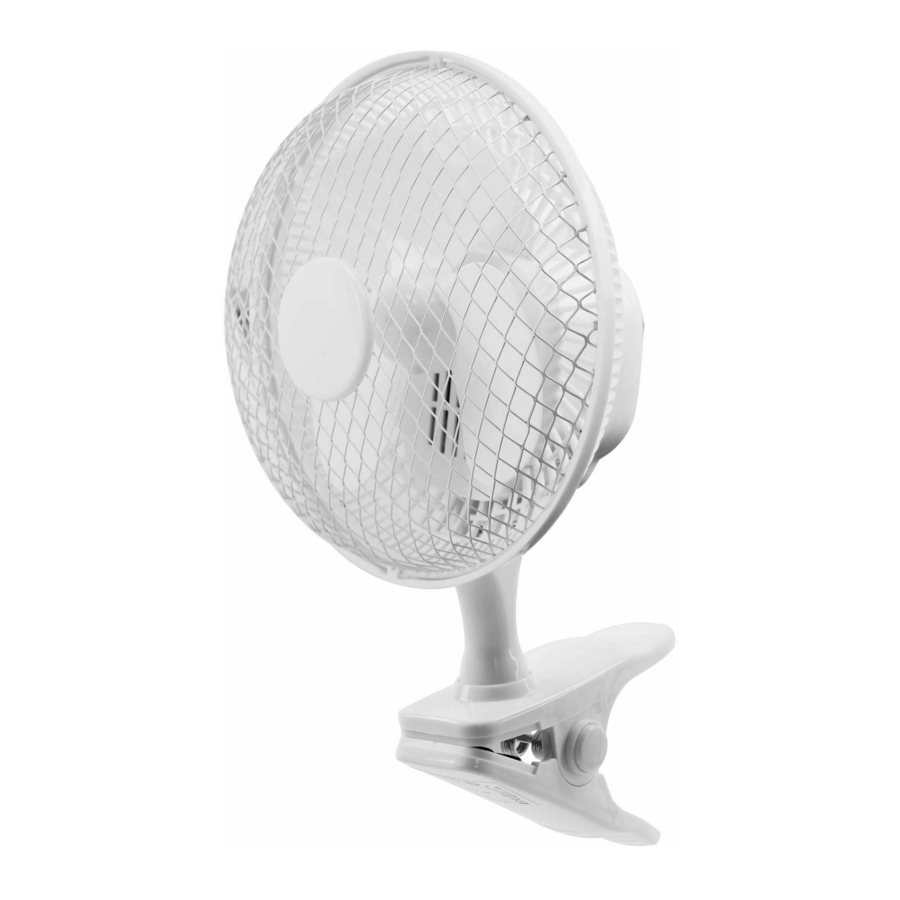

Daewoo COL1112 - Clip Fan Manual

Description of parts

1. Front Guard
2. Fan Blade
3. Rear Guard
4. Motor Housing
5. Speed Control Switch
6. Pivot Screw
7. Power Cord
8. Clip

Assembling Your Clip Fan

• Remove the Pivot Screw from the Clip Body being careful not to lose the nut:

• Align the Clip Body with the Fan Pivot and thread the Pivot Screw through the two and into the nut:

• Tighten the Pivot Screw enough such that the Pivot holds the fan in place but do not overtighten.

Operating Instructions

• Clip the fan into the desired position, note that the clip can clipped onto surface edges with a thickness up to 3cm.
• Ensure that the speed control switch on the rear of the motor is in the '0' off position.
• Slacken the Pivot Screw to enable the fan to tilt vertically up and down and tighten the pivot screw once in the desired position, rotate the fan from left to right to the desired position. NB do not adjust the fan whilst connected to the mains.
• Insert the mains plug into the nearest socket.
• Move the speed control switch to either the '1' position for the low speed or the '2' position for the high speed. Return the switch to the '0' off position to switch off the fan.

Care and Use of your Clip Fan

• Ensure that the clip fan is not connected to the mains supply before cleaning.
• Wipe the fan body clean with a clean, soft damp cloth.
• Do not immerse the fan or its cord in water or any other liquid.

Technical Data

Voltage: 220-240V AC 50Hz
Rated power: 15W
Model: COL1112

Electrical Connections

This appliance is fitted with a fused three-pin plug to BS 1363. If the plug has to be removed, it should be cut off and carefully disposed of immediately. To avoid a possible shock hazard, do not insert the discarded plug into a mains socket.

Fitting a new plug

If for any reason you need to fit a new plug, the flexible mains lead must be connected as shown below. The wires in the mains lead fitted to this appliance are coloured in accordance with the following code:

• The Blue wire must be connected to the terminal marked N or coloured Black.
• The Brown wire must be connected to the terminal marked L or coloured Red.
• Check that there are no cut or stray strands of wire inside the plug.
• Use a 3 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
• If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.
• After replacing or changing a fuse on a moulded plug, the cover must be refitted to the plug; the appliance must not be used without a fuse cover.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this Clip Fan.
• Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.
• Do not use this product with a programmer, timer, separate remote-control system or any other device.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Close supervision is required when using this appliance near children.
• Never leave this appliance within reach of children.
• Children of less than 3 years should be kept away unless continuously supervised.
• Do not immerse the appliance or its cord in water or any other liquids.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Always use this appliance on a solid, level, surface.
• Do not use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.
• Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place user at serious risk.
• Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
• Regular, periodic checks should be carried out on the mains cable to ensure no damage is evident. Should there be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced by the manufacturer or a suitable qualified after-sales-service in order to avoid a hazard.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• Do not run the mains cable under carpets, rugs, etc.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not use any accessories or attachments with this appliance other than those supplied or recommended by the supplier.
• Do not use this appliance for anything other than its intended use.
• Do not push objects (including fingers) into the fan grill or any openings as this could risk injury, damage to the appliance and/or electric shock.
• Unplug after each use. Grasp the plug, not the cord.
