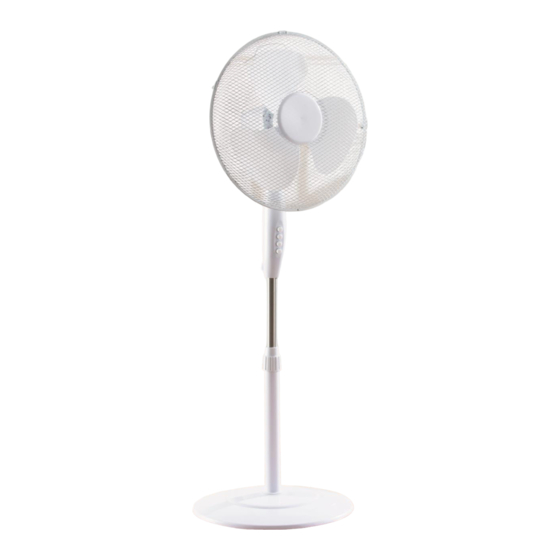

- Page 1 16” Pedestal Fan with Round Base Model No. COL1568 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 16” Pedestal Fan with Round Base Model No. COL1568 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
- Page 3 16” Pedestal Fan with Round Base Model No. COL1568 User Manual • DO NOT leave the appliance unattended during use. • DO NOT leave the appliance unattended whilst connected to the mains supply. • Always use this appliance on solid, level, surface.
- Page 4 16” Pedestal Fan with Round Base Model No. COL1568 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with this symbol conform to applicable provisions of the European Economic Area.
- Page 5 16” Pedestal Fan with Round Base Model No. COL1568 User Manual Description of Parts 1. Guard Nut and Screw 2. Front Guard 3. Blade Retaining Nut 4. Fan Blade 5. Rear Guard Fixing Nut 6. Rear Guard 7. Carrying Handle 8.
- Page 6 16” Pedestal Fan with Round Base Model No. COL1568 User Manual Assembling Your 16 Inch Pedestal Fan 2. Insert the Lower Base Pole (16) into the Base (18). Place the Weight (19) on the underside of the Base (18) then screw the Pole Fixing Nut (20) onto the Pole Thread (17) at the end of the Lower Base Pole (16).
- Page 7 16” Pedestal Fan with Round Base Model No. COL1568 User Manual 5. Remove the Rear Guard Fixing Nut (5) from the Motor Housing (11) by unscrewing anticlockwise. Rear Guard locating Pins 6. Note the Rear Guard Locating Pins on the Motor Housing (11).
- Page 8 16” Pedestal Fan with Round Base Model No. COL1568 User Manual 10. Secure the Fan Blade (4) to the Motor Spindle (9) by screwing on the Blade Retaining Nut (3) in an anticlockwise direction. The Blade Retaining Nut (3) is reverse threaded.
- Page 9 16” Pedestal Fan with Round Base Model No. COL1568 User Manual 14. Bring the Front Guard (2) down to meet the Rear Guard (6) and push the clips inwards until the Front Guard (2) is fastened to the Rear Guard (6).
- Page 10 16” Pedestal Fan with Round Base Model No. COL1568 User Manual Press the Speed Control Switches (8) to operate your fan as follows: Press button 0 to ensure the fan is off. Insert the mains plug into the nearest socket.
- Page 11 16” Pedestal Fan with Round Base Model No. COL1568 User Manual Disposal of the Packaging Dispose of paper and cardboard in appropriate paper re-cycling facilities. Dispose of recyclable plastics in appropriate plastic re-cycling facilities. Dispose of non-recyclable plastics in the appropriate plastics collection service.
-
Page 12: Warranty
As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
