Daewoo COL1073 User Manual

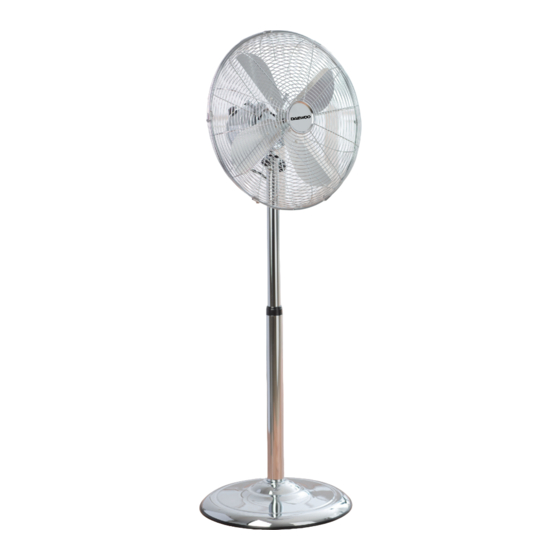

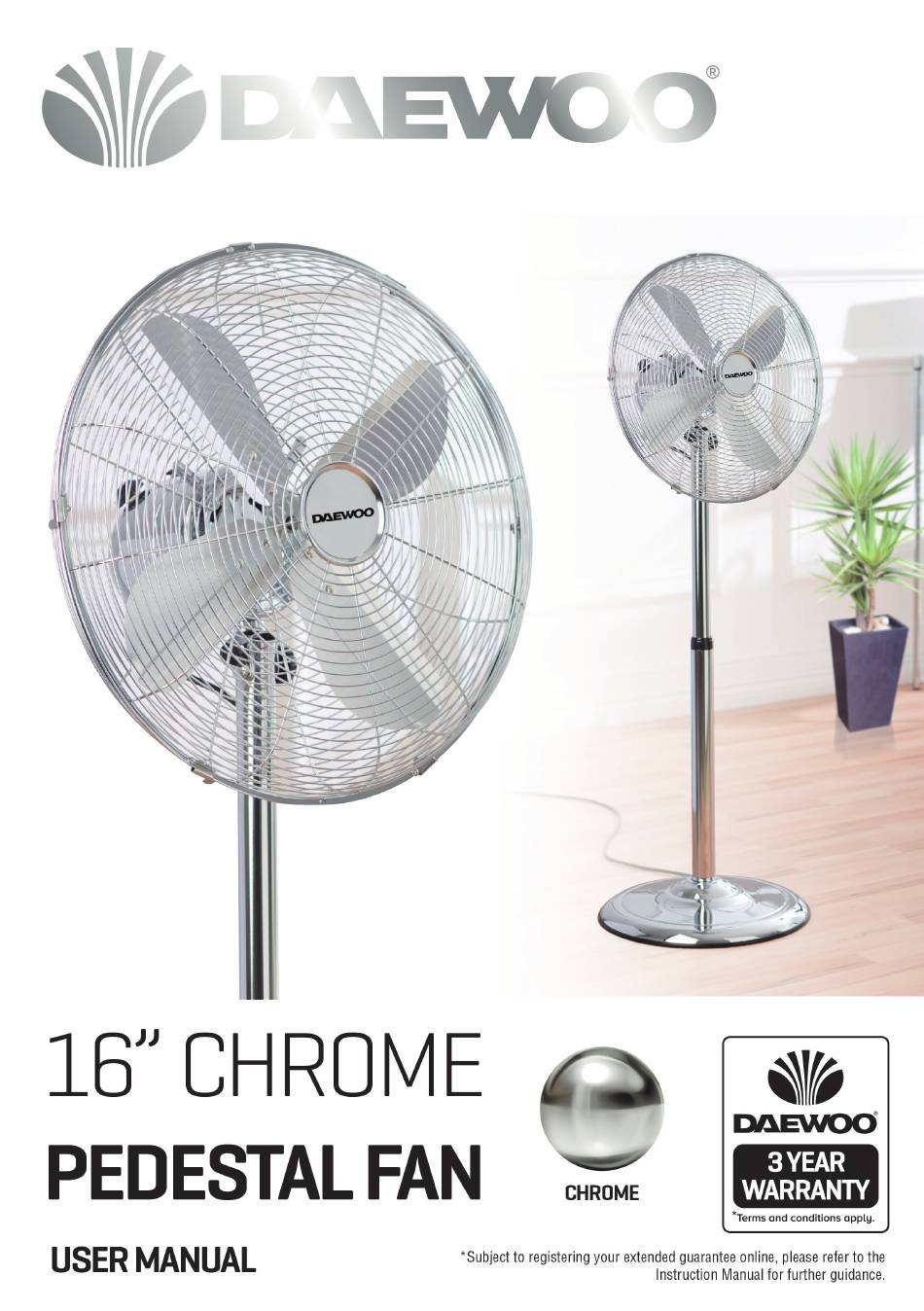

16 inch chrome pedestal fan
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the COL1073 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo COL1073

Summary of Contents for Daewoo COL1073

  • Page 2: Important Safeguards

    16 Inch Chrome Pedestal Fan COL1073 User Manual IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference: • Read and familiarise yourself with all operating instructions before using this Pedestal Fan.
  • Page 3 16 Inch Chrome Pedestal Fan COL1073 User Manual • It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired. • Repairs to electrical appliances should only be performed by a qualified electrician.
  • Page 4 16 Inch Chrome Pedestal Fan COL1073 User Manual Description of parts 11. 10. 1. Front Guard 2. Front Guard Screw (x1) 3. Fan Blade 4. Rear Guard 5. Front Guard Nut (x1) 6. Telescopic Stand 7. Pivot Adjustment Screw 8. Tilt Adjustment Screw 9.
  • Page 5 16 Inch Chrome Pedestal Fan COL1073 User Manual 2. Next attach the motor housing (9) to the top of the telescopic stand (6). First remove all the screws, etc. (7, 8, 19 & 20) from the motor housing bracket. 3. Place the Motor Housing on the top...
  • Page 6 16 Inch Chrome Pedestal Fan COL1073 User Manual Fitting the fan guard and blade 1. Remove any sleeving from the motor spindle. 2. Remove the four rear guard retaining screws from the motor housing (9). 3. Attach the rear guard (4) to the motor housing using the four screws.
  • Page 7 16 Inch Chrome Pedestal Fan COL1073 User Manual 5. Remove the front guard nut & screw (5 & 2) from the front guard (1) 6. Turn the clips around the outside edge of the front guard (1) outwards. 7. Hang the front guard (1) by its hook over the top of the rear guard (5).
  • Page 8 16 Inch Chrome Pedestal Fan COL1073 User Manual Operate your fan using the following steps: • Place the fan in the desired position and ensure that it is vertical and stable. • If desired, the fan guard can be tilted up and down to alter the direc- tion of the airflow.

  • Page 9: Customer Support

    • for 1 year from the date of purchase. • It is important to note that your warranty becomes invalid should non Daewoo parts or accessories be used with this appliance Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

  • Page 10: Electrical Connections

    Electrical Connections This appliance is fitted with a fused three-pin plug to BS 1363. If the plug has to be removed, it should be cut off and carefully disposed of immedi- ately. To avoid a possible shock hazard, do not insert the discarded plug into a mains socket.

  • Page 11: Warranty

    1 year guarantee. Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defects should arise due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
