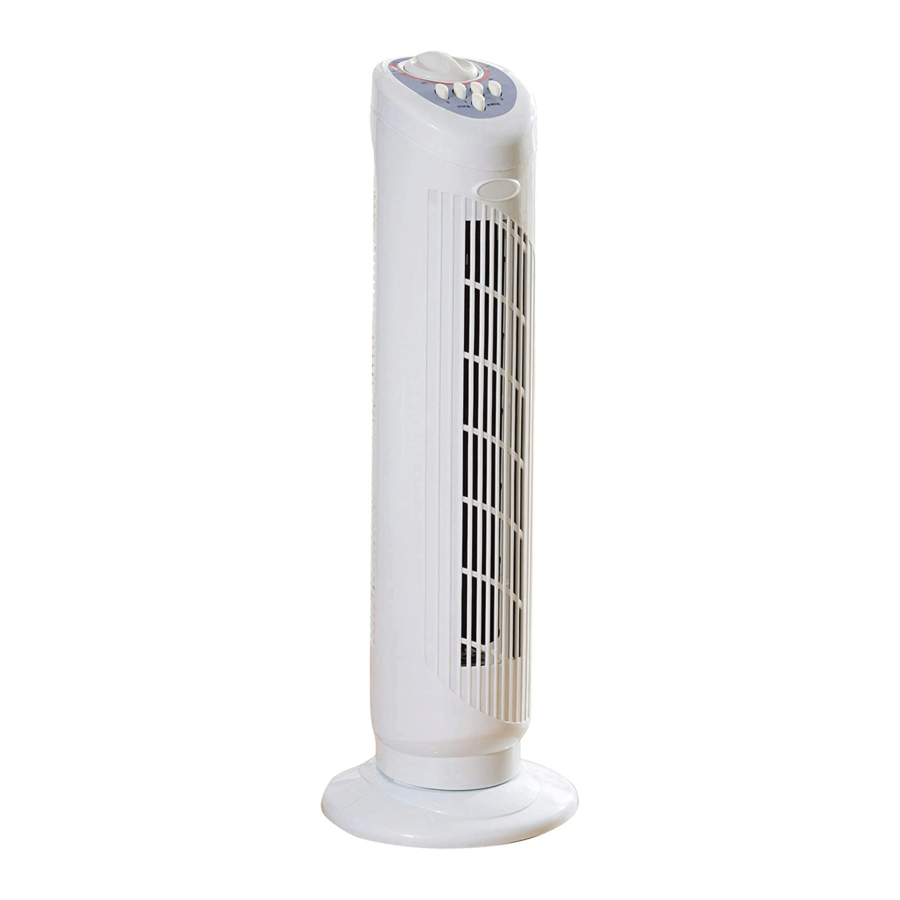

Daewoo COL1066 - 30 Inch Tower Fan, Free Standing For Home Manual

Description of controls

1. Oscillating Button
2. Speed Control Buttons
3. Timer Control

Assembly

1. Place the rear section of the stand onto the base of the tower fan.
2. Lower the front half of the stand on top of the rear half of the stand such that the two latch together. Ensure that the mains cable is fed through the hole in the centre of the stand.
3. Attach the stand onto the base of the tower fan by threading the screws through the stand assembly and into the base of the tower fan.
4. Once the base is attached, thread the mains cable through the inner cord guides and under the cord grip and tighten the two cord grip screws.
5. Finally push the four feet into the holes in the base of legs.

Operating Instructions

Manual Control

• Place the fan into the desired position ensuring that it is on an even surface and vertical.
• Insert the mains plug into the nearest socket, press the speed control buttons as follows: Button 1 for low speed, 2 for medium speed and 3 for high speed. Press the '0' button to switch the fan off.
• NB for normal manual operation the timer control must be in the 'on' position on the dial.

Oscillation mode

• Press the oscillation button to enable the fan to oscillate from side to side to disperse air over a larger area. Press the button again to stop the oscillation mode.

Using the timer

• Rotate the timer control to the desired number of minutes that the fan is required to be on. Once the timer control has returned to the 'off' position on the dial, the fan will switch off.
• NB for normal manual operation the timer control must be at the 'on' position on the dial.

Care and Use of your Fan

• Ensure that the fan is not connected to the mains supply before cleaning.
• Wipe the fan body clean with a clean, soft damp cloth.
• Do not immerse the fan or its cord in water or any other liquid.

Technical Data

Voltage: 220-240V AC 50Hz
Rated power: 50W
Model: COL1066

Electrical Connections

This appliance is fitted with a fused three-pin plug to BS 1363. If the plug has to be removed, it should be cut off and carefully disposed of immediately. To avoid a possible shock hazard, do not insert the discarded plug into a mains socket.

Fitting a new plug

If for any reason you need to fit a new plug, the flexible mains lead must be connected as shown below. The wires in the mains lead fitted to this appliance are coloured in accordance with the following code:

• The Blue wire must be connected to the terminal marked N or coloured Black.
• The Brown wire must be connected to the terminal marked L or coloured Red.
• Check that there are no cut or stray strands of wire inside the plug.
• Use a 3 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
• If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.
• After replacing or changing a fuse on a moulded plug, the cover must be refitted to the plug; the appliance must not be used without a fuse cover.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this Tower Fan.
• Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.
• Do not use this product with a programmer, timer, separate remote-control system or any other device.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Close supervision is required when using this appliance near children.
• Never leave this appliance within reach of children.
• Children of less than 3 years should be kept away unless continuously supervised.
• Do not immerse the appliance or its cord in water or any other liquids.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Always use this appliance on a solid, level, surface.
• Do not use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.
• Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place user at serious risk.
• Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.
• Regular, periodic checks should be carried out on the mains cable to ensure no damage is evident. Should there be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced by the manufacturer or a suitable qualified after-sales-service in order to avoid a hazard.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• Do not run the mains cable under carpets, rugs, etc.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not use any accessories or attachments with this appliance other than those supplied or recommended by the supplier.
• Do not use this appliance for anything other than its intended use.
• Do not push objects (including fingers) into the fan grill or any openings as this could risk injury, damage to the appliance and/or electric shock.
• Unplug after each use. Grasp the plug, not the cord.
