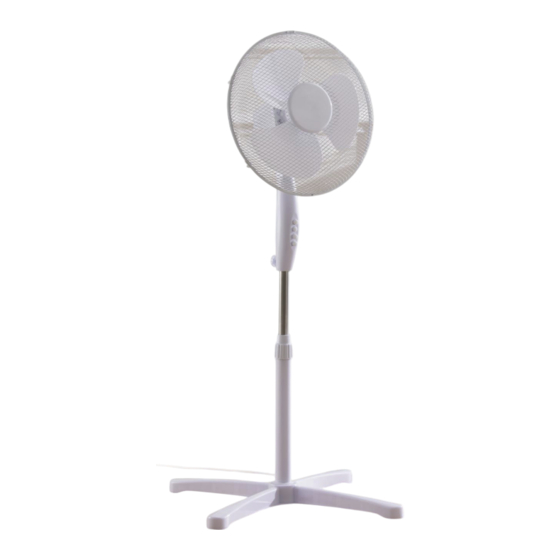

16" Pedestal Fan with Clip on Base
Model No. COL1582
User Manual
1
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Advertisement

loading
Need help?

Need help?

Do you have a question about the COL1582 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Daewoo COL1582

  • Page 1 16” Pedestal Fan with Clip on Base Model No. COL1582 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
  • Page 2 16” Pedestal Fan with Clip on Base Model No. COL1582 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
  • Page 3 16” Pedestal Fan with Clip on Base Model No. COL1582 User Manual • DO NOT leave the appliance unattended during use. • DO NOT leave the appliance unattended whilst connected to the mains supply. • Always use this appliance on solid, level, surface.
  • Page 4 16” Pedestal Fan with Clip on Base Model No. COL1582 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with this symbol conform to applicable provisions of the European Economic Area.
  • Page 5 16” Pedestal Fan with Clip on Base Model No. COL1582 User Manual Description of Parts 1. Guard Nut and Screw 2. Front Guard 3. Blade Retaining Nut 4. Fan Blade 5. Rear Guard Fixing Nut 6. Rear Guard 7. Carrying Handle 8.
  • Page 6 16” Pedestal Fan with Clip on Base Model No. COL1582 User Manual Assembling Your 16 Inch Pedestal Fan 1. Left & Below: Assemble the legs by attaching the four Clip On Legs (18) to the Centre Boss (19) as shown left until all four legs are attached.
  • Page 7 16” Pedestal Fan with Clip on Base Model No. COL1582 User Manual 5. Remove the Rear Guard Fixing Nut (5) from the Motor Housing (11) by unscrewing anticlockwise. Rear Guard locating Pins 6. Note the Rear Guard Locating Pins on the Motor Housing (11).
  • Page 8 16” Pedestal Fan with Clip on Base Model No. COL1582 User Manual 11. Remove the small Guard Nut & Screw (1) stored in the Front Guard (2) using a suitable screwdriver (not supplied). The Guard Nut & Screw (1) maybe stored in the Read Guard (6).
  • Page 9 16” Pedestal Fan with Clip on Base Model No. COL1582 User Manual Operating Your Pedestal Fan Place the fan in the desired position ensuring that it is stable. If desired, the fan guard can be tilted up and down to alter the direction of the airflow.
  • Page 10 16” Pedestal Fan with Clip on Base Model No. COL1582 User Manual Technical Specification Model No. COL1582 Voltage 220-240V~ 50/60Hz Rated Power Protection Class Disposal of the Packaging Dispose of paper and cardboard in appropriate paper re-cycling facilities. Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
  • Page 11: Warranty

    As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
