2. Basic Setup and Requirements for MFG Mode

This section provides the detailed information about the setting for AW-HM610 demo board. 錯誤!

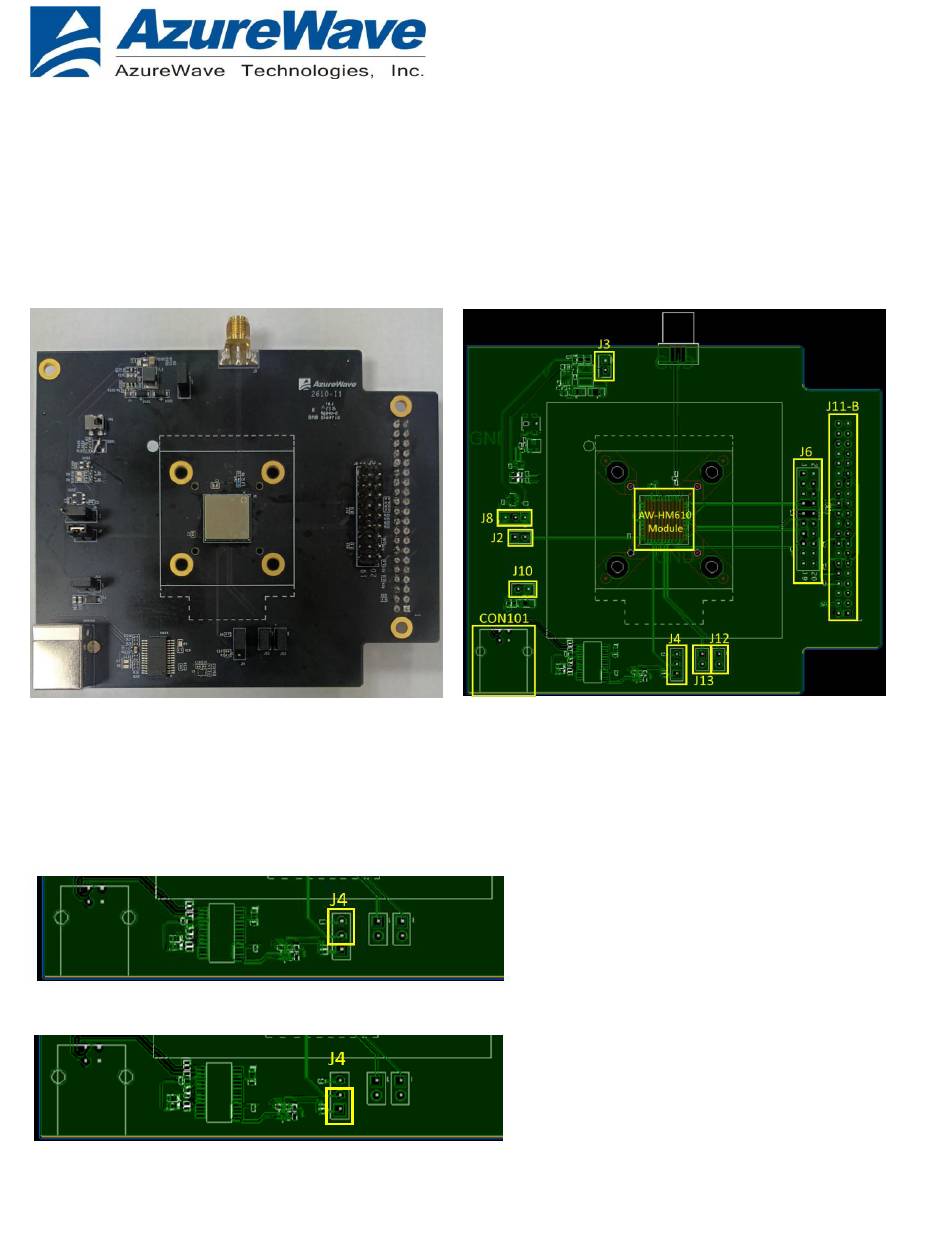

找不到參照來源。 shows the overview of the AW-HM610 test board physical photo and PCB
placement (TOP). The description of jumpers' functions and settings on demo board is as follows:
Azurewave AW-HM610 test board physical photo and PCB placement

2.1 Operation Mode Configurations

AW-HM610 can be operated in MFG mode or Host Mode through the setting of jumper J4.
J4 = L (Host Mode)
J4 = H (MFG Mode)
5
