AW-HM482
802.11ah Module EVK
User Guide
Rev. 0.1
(For Standard)
1
FORM NO.: FR2-015_ A
Responsible Department：WBU
Expiry Date: Forever
The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or
disclosed in whole or in part without prior written permission of AzureWave.
Advertisement
Table of Contents
Related Manuals for AzureWave AW-HM482
Summary of Contents for AzureWave AW-HM482
- Page 1 (For Standard) FORM NO.: FR2-015_ A Responsible Department：WBU Expiry Date: Forever The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave.
- Page 2 NC Chen FORM NO.: FR2-015_ A Responsible Department：WBU Expiry Date: Forever The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave.
- Page 3 3. Basic Setup and Requirements for Host Mode ................ 8 FORM NO.: FR2-015_ A Responsible Department：WBU Expiry Date: Forever The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave.
- Page 4 1 Overview 1.1 Device supported This document supports the AW-HM482 (18 x 24 mm LGA Module). The AW-HM482 EVB can be operated in MFG mode or Host Mode. If you want to perform AW-HM482 RF performance test, please contact the relevant personnel of Newracom to obtain NRC7292 Manufacturing Test Tool GUI (MFT GUI) and related user guide.

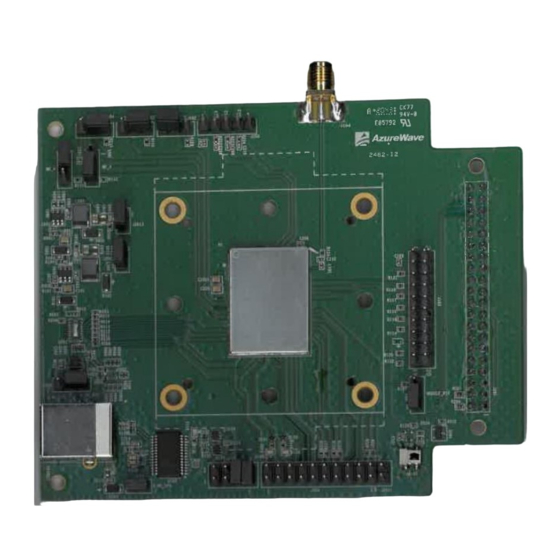

- Page 5 Azurewave AW-HM482 EVB physical photo and PCB placement FORM NO.: FR2-015_ A Responsible Department：WBU Expiry Date: Forever The information contained herein is the exclusive property of AzureWave and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of AzureWave.
- Page 6 Short J102 pin.2 and pin.1 to set VDDIO to 1.8V 2.3 USB to UART (J106) Set the UART port (UART3) of AW-HM482 by short-circuiting pin5 to pin6 and pin7 to pin8 of J106. The USB bridge IC used by AW-HM482 EVB is Prolific’s PL2303GC. You can download its driver from Prolific’s official website.
- Page 7 2.4 Module Reset (J901) Pin.2 of J901 is the reset control pin of AW-HM482. By shorting pin1 and pin2, the reset function can be controlled by SW103. 2.5 GPIOs (J201) The GPIO pins of AW-HM482 are connected to J201, the definition of each pin is as follows 2.6 JTAG (J103)
- Page 8 3. Basic Setup and Requirements for Host Mode AW-HM482 can be connected to the Host side via SPI interface. The picture below is a photo of AW-HM482 EVB connected to Raspberry Pi3 via J202. Please note that the mode of J902, J903, J904, J905, J906 must be set correctly when operating in Host Mode.
