- Page 1 STV-629LED ULTRASLIM WALL MOUNT FOR FLAT SCREENS N Instruction manual...
-
Page 2: Accessories Included

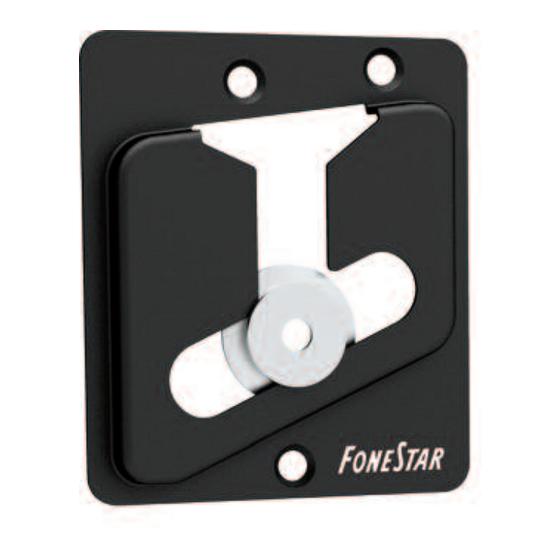

DESCRIPTION - Ultraslim wall mount for flat screens from 23” to 70” (58 to 178 cm), VESA 200 x 100 or higher. - Distance from the wall in vertical position: 1.45 cm. - Colour: black. - Maximum borne weight: 50 kg. - Dimensions: adjustable, up to 80 cm width x 60 cm height. - Page 3 2.- FIXING THE SCREEN TO THE MOUNT Firstly, select the nuts and accessories needed to attach the screen to the mount. Bolts of different diameters and lengths are supplied together with the mount. Washers and separaters that enable you to fit the majority of flat screens on the mount are also included. Find the fixing holes on the back of the screen and decide which bolt needs to be used depending on its diameter.
- Page 4 2.1.- Back of flat screen: 2.2.- Back of curved screen or with inset: - 4 -...
- Page 5 2.- The mount must be attached to the wall or surface correctly to ensure it can hold the maximum borne weight. FONESTAR will not hold itself responsible for damage or breakages due to the mount falling off the wall due to the wall being in bad conditions, the mount not being installed correctly or incorrect manipulation.
- Page 6 This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
