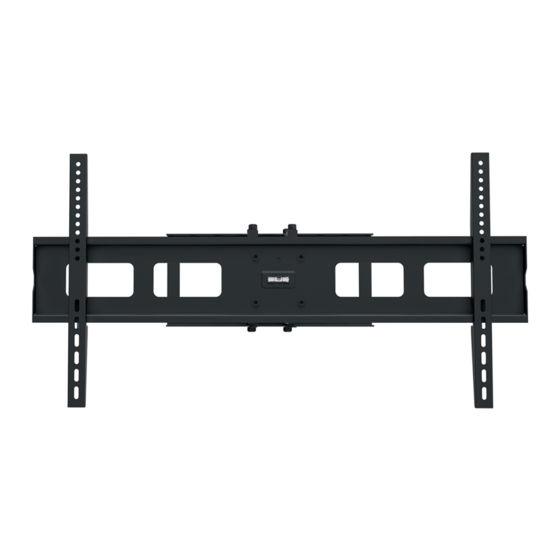

- Page 1 STV-691N MULTIDIRECTIONAL WALL MOUNT FOR FLAT SCREENS N Instruction manual...
- Page 2 DESCRIPTION - Multidirectional wall mount for flat screens from 37” to 63” (94 to 160 cm). - 2 articulated arms. - 120° horizontally adjustable. - ± 15° vertical tilt. - Correction of the horizontal tilt of the screen. - Distance from the wall of 12.5 cm to 51.5 cm. - Spirit level.
- Page 3 1.- ATTACHING THE MOUNT TO THE WALL FIXING THE SCREEN TO THE MOUNT - 3 -...
- Page 4 3.- Firstly, select the bolts and the necessary accessories for fixing the screen to the mount. Bolts of different diameters and lengths are supplied with the mount. Find the holes on the back of the screen and decide which bolt needs to be used in accordance with the diameter of the hole. Select the bolts in accordance with their length, so that the short bolts are used if the back panel of the screen is flat and the long ones are used, along with the corresponding separator, if the back panel is curved or the fixing thread is inset (see the following images).
- Page 5 5.- ADJUSTING THE TILT OF THE SCREEN 6.- ADJUSTING THE HORIZONTAL CORRECTION OF THE SCREEN - 5 -...
- Page 6 This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
