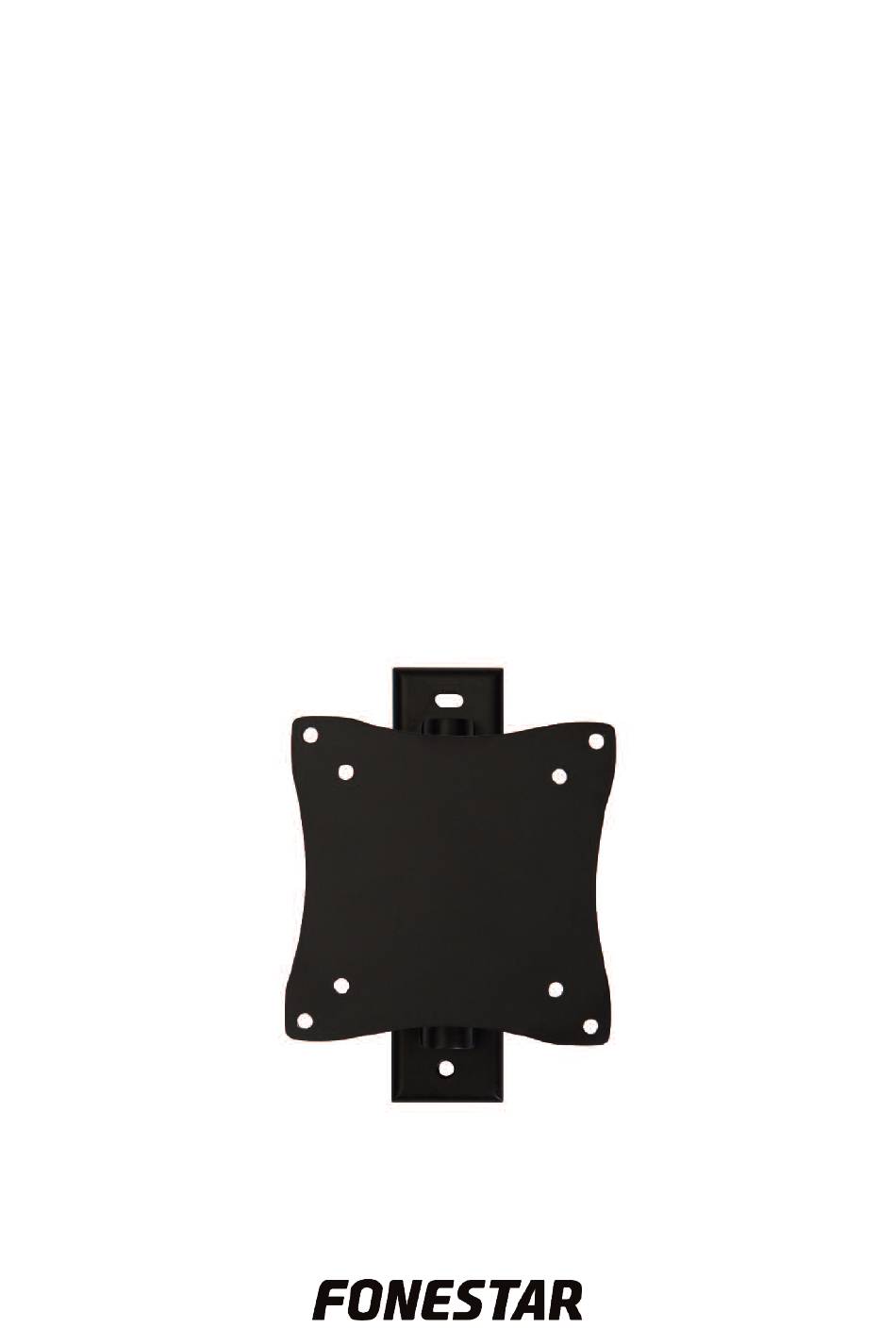

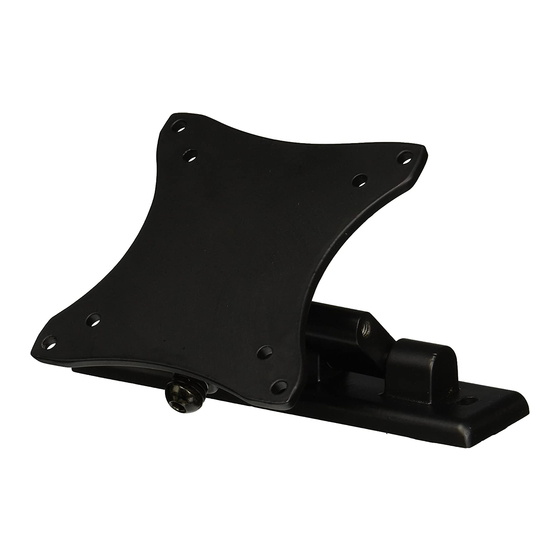

- Page 1 STV-650N, STV-650P ADJUSTABLE WALL MOUNT FOR FLAT SCREENS INSTRUCTION MANUAL...
- Page 2 - ±45° vertical tilt. - Distance to the wall in vertical position: 8 cm. - Spirit level. - Colour: STV-650N = black. STV-650P = silver. - Maximum borne weight: 15 kg (maximum recommended weight: 12 kg). - Dimensions: TV plate: 11 x 11 cm with VESA 75/100 regulation holes.
- Page 3 1.- FIXING THE MOUNT TO THE WALL - 3 -...
- Page 4 2.- ATTACHING THE SCREEN TO THE MOUNT 3.- ADJUSTING THE TILT OF THE SCREEN - 4 - - 4 -...
- Page 5 - 5 -...
- Page 6 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
