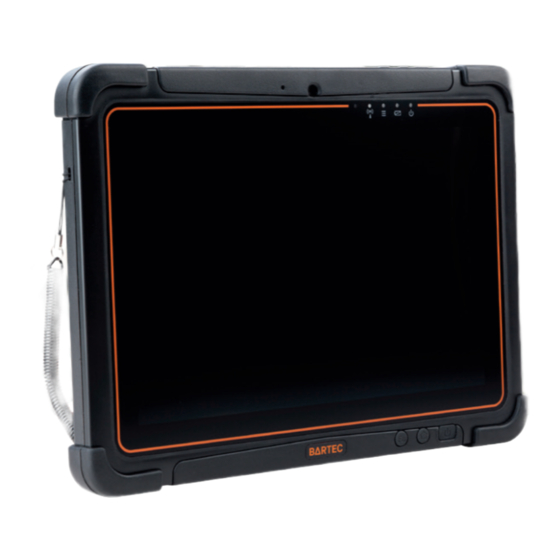

Bartec Agile S NI Quick Start Manual
Install radio module 4g/lte
Hide thumbs
Also See for Agile S NI:
- Quick start manual (28 pages) ,
- Installation instruction (11 pages) ,
- Faq (8 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Bartec Agile S NI
Summary of Contents for Bartec Agile S NI
- Page 1 Agile S NI/Agile S Quick Start Guide: Install radio module 4G/LTE...
- Page 3 Quick Start Guide – Translation of the original Agile S NI/Agile S 10.1" Tablet-PC INSTALL RADIO MODULE 4G/LTE Document No.: B1-A2B0-7E0003 Status: January 2024 / Revision B BARTEC GmbH Support: Phone: +49 7931 597-0 Max-Eyth-Straße 16 em-support@bartec.com Fax: +49 7931 597-119...
- Page 4 Information about this Agile S NI/Agile S Quick Start Guide Install radio module Information about this Quick Start Guide Read carefully before installing the radio module. The Quick Start Guide is directed at all persons who are entrusted with handling the device.
- Page 5 Document Explanation Quick Start Guide The safety relevant information, initial use and further data of the Tablet PC Agile S NI are described in this Quick Start Tablet PC Agile S NI Guide. Data sheet This technical data sheet contains the most important...
-
Page 6: Necessary Equipment
Preparation Install radio module Preparation DANGER Only use original accessories from BARTEC! Only install radio module outside the potentially explosive atmosphere! WARNING Power off the tablet pc before installing the radio module and Micro SIM card, or the tablet computer might be damaged by the incorrect installation behaviors... - Page 7 Agile S NI/Agile S Install radio module Install radio module Install radio module Switch off the Tablet PC. Remove the battery. Place the Tablet PC on the display. Ensure that no small parts lying around that could scratch the display.
- Page 8 Agile S NI/Agile S Install radio module Install radio module Insert the sim card. Install radio module. Insert the antenna cables into the socket on the radio module. Black cabel in the socket: MAIN Grey cabel in the socket: AUX...
- Page 9 Agile S NI/Agile S Install radio module Install radio module Fix radio module with screw. Put on the cover and tighten the 4 screws. WARNING When closing the cover, make sure that the seal is not damaged. Subject to technical modifications...
- Page 10 Agile S NI/Agile S Switch on the radio module Install radio module Switch on the radio module Insert the battery. Switch on the Tablet PC. Open the Mobility Center by press the Home Button located on the front ...
- Page 12 BARTEC BARTEC GmbH Max-Eyth-Str. 16 97980 Bad Mergentheim Germany Phone: +49 7931 597 0 info@bartec.com bartec.com...
