Tektronix Phaser 740 Installation Manual

Installing an Internal Hard Drive
Phaser 740 and 750 Printers
The internal hard drive installs in the printer's network card
slot. If a network card is installed in the printer, it must be
removed.
1.
Power down the printer. Do not unplug the printer;
this preserves a ground path to dissipate static
charges.
2. Remove the network card cover plate from the rear
panel of the printer. The cover plate is held in place
with two screws.
Alternatively, you will have to remove the network
card by pulling it out of the network card slot.
3.

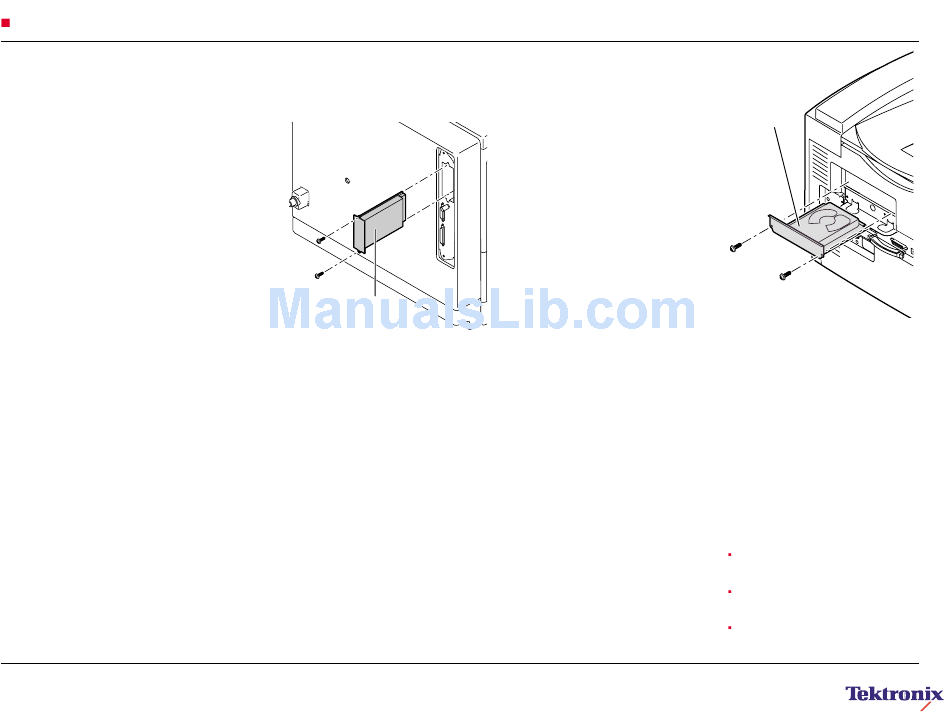

Slide the internal hard drive into the network card
slot. Ensure that it seats in place and secure it with
two screws.
4.
Turn on the printer.
5. Print a Configuration Page to check its listing of the
internal hard drive.
6. At your computer, reconfigure the printer driver.
Refer to "Configuring the driver" in the Phaser 740
Color Printer Setup Guide or refer to the
Phaser 750 Advanced Features and
Troubleshooting Manual on the printer's CD-ROM.
The internal drive for the Phaser 750 printer
contains information you can access using
PhaserLink and a web browser. Refer to the
Phaser 750 Printer Advanced Features and
Troubleshooting Manual . The manual is available
on the printer's CD-ROM as a PDF file as well as at
the Tektronix website www.tek.com/
Color_Printers/support/welcome.html
©
Copyright 2000 by Tektronix, Inc. All rights reserved.
Phaser 840 and 850 Printers
1.
Power down the printer. Leave the
power cord plugged in to provide a
ground path for static discharges.
2. Remove the network card or the network
card slot cover plate. Of the two
interlocking rear panel slots, the network
card fits in the bottom slot; the hard drive
fits into the top slot.
3.
Remove the internal hard drive cover
plate from the rear panel of the printer,
the cover plate is held in place with two
screws.
4.
Slide in the internal hard drive and
tighten the two screws to secure it in
place. Reinstall the network card or
network card slot cover plate.
5. Turn on the printer and print the
Internal
hard drive
Configuration Page; it lists information
regarding the internal hard drive.
6. At your computer, reconfigure the printer
driver. Refer to "Configuring the driver" in
the Phaser 840 Color Printer Setup
Guide or refer to the Phaser 850
Advanced Features and Troubleshooting
Manual on the printer's CD-ROM.
The internal drive for the Phaser 850
printer contains information you can
access using PhaserLink and a web
browser. Refer to the Phaser 850
Printer Advanced Features and
Troubleshooting Manual . The manual is
available on the printer's CD-ROM as a
PDF file as well as at the Tektronix
website www.tek.com/Color_Printers/
support/welcome.html
075-0377-AD
Internal
hard
drive
Caution
Leave the printer plugged into its power
outlet; this preserves a ground path for
static discharges.
Touch the printer's bare metal frame often
to discharge static electricity from your
body.
Avoid wearing nylon or polyester clothing;
they generate static electricity.
