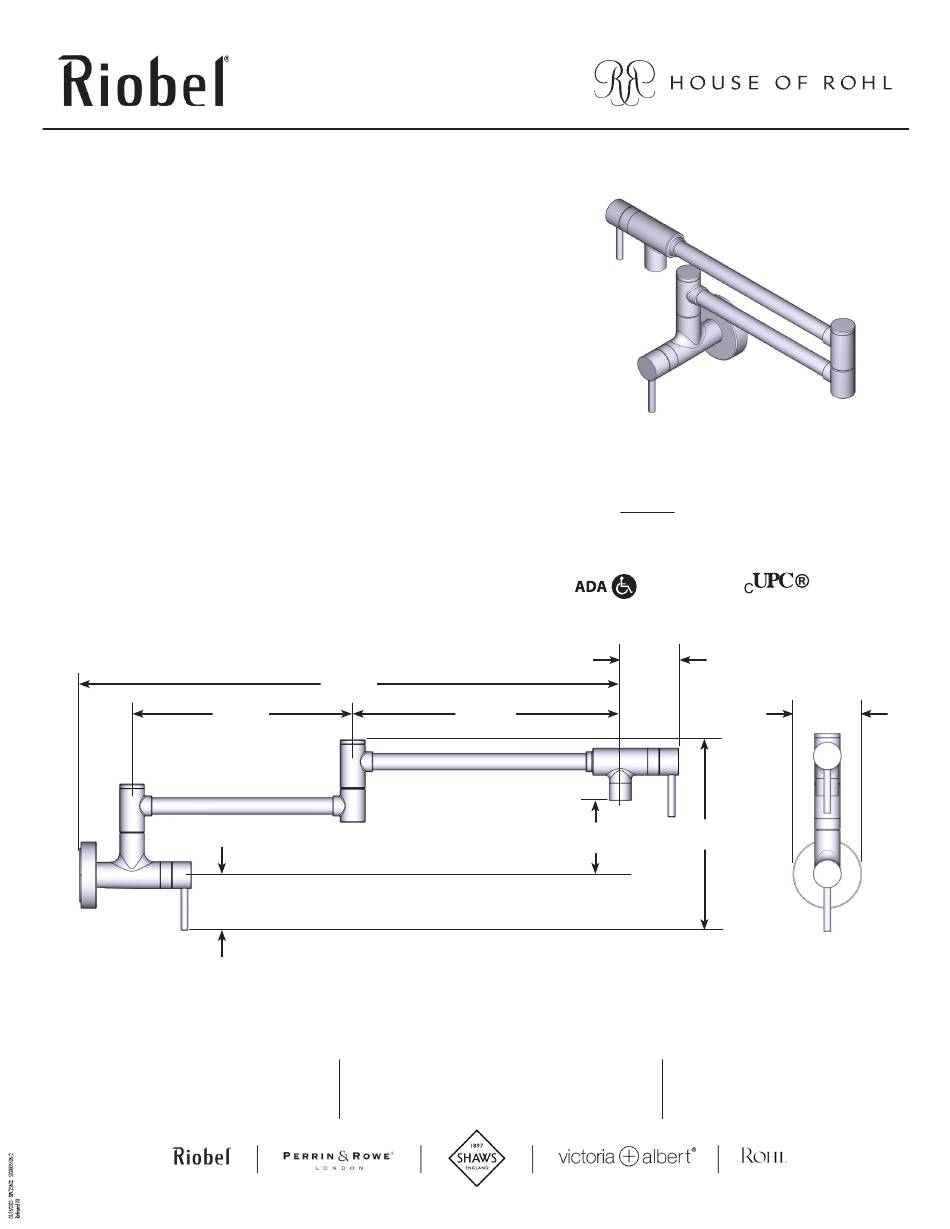

DESCRIPTION

• 1/2" inlet female NPT

• Flow levers operate counterclockwise through 180 degree

arc with shut off at 6 o'clock and maximum flow at the

12 o'clock position. Shut off in clockwise direction

FLOW

• 20.8 L/min, 5.5 gpm (US) 60psi

STANDARDS

• ASME A112.18.1 / CSA B125.1

• NSF 61/9 & 372: Q ≤ 1

• ADA

WARRANTY

• Most products or parts carry "Limited Warranties"

against manufacturing defects. For US customers

please visit houseofrohl.com/support and for

Canadian customers please visit houseofrohl.ca/

support for complete product and finish warranty.

254 mm

2-1/2"

64 mm

US Customers

U.S.A.

houseofrohl.com/support

1-800-777-9762

Rev. 02/23

24-3/8"

619 mm

10"

For warranty or additional information, contact:

QUEBEC / MARITIMES / WESTERN CANADA

QUÉBEC / MARITIMES / OUEST CANADIEN

QUEBEC / MARITIMOS / CANADA OCCIDENTAL

SPECIFICATIONS

12-1/8"

308 mm

3-3/8"

87 mm

houseofrohl.ca/support

1-866-473-8442

AZURE

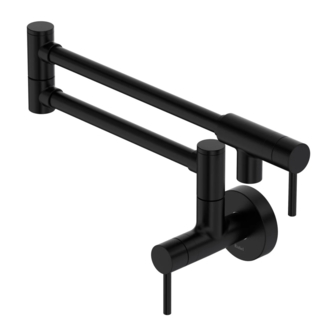

Pot Filler

MODELS:

AZ900 SERIES

2-5/8"

67 mm

8-5/8"

219 mm

Canadian Customers

ONTARIO

houseofrohl.ca/support

1-800-287-5354

76 mm
