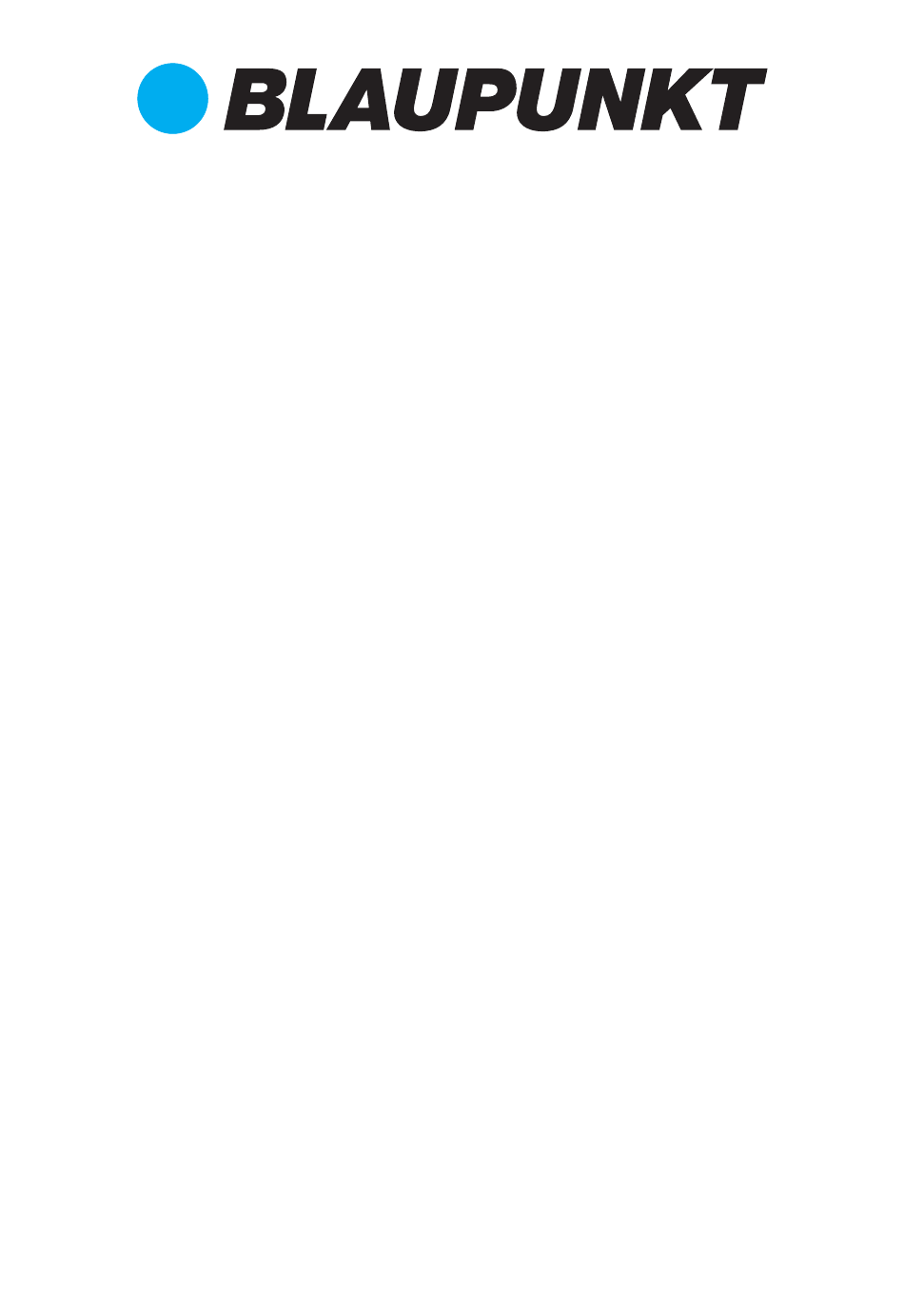

  • Page 1 [en] Instructions on mounting an use Combination steam oven 5KD94150AU...

  • Page 2: Table Of Contents

    CONTENTS CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ADDENDUM SPECIFICATIONS IMPORTANT SAFETY INSTRUCTION 35–36 TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION 37–39 SETTING UP YOUR OVEN IMPORTANT INFORMATION ABOUT INSTALLING PLACEMENT INSTALLATION DIMENSIONS BUILDING IN 41–42 BEFORE FIRST USE OPERATION INSTRUCTION...

  • Page 3: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

  • Page 4: Important Safety Instruction

    IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Warning: Liquids and other foods must not 13.
  • Page 5 23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. 24. Children should be supervised to ensure that they do not play with the appliance. 25. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

  • Page 6: To Reduce The Risk Of Injury To Persons Grounding Installation

    To Reduce the Risk of Injury to Persons Grounding Installation DANGER CLEANING Be sure to unplug the appliance from the Electric Shock Hazard power supply. Touching some of the interna components can cause serious internal injury or death. 1. Clean the cavity of the oven after using Do not disassemble this appliance.
  • Page 7 UTENSILS See the instructions on „Materials you can use in microwave oven or to be avoided in microwave oven.“ There may be certain non-metallic utensils that are not CAUTION safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

  • Page 8: Setting Up Your Oven

    Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton May cause arcing. Transfer food into microwave-safe dish. with metal handle Metal or me- Metal shields the food from microwave energy. Metal trim may cause arcing. tal-trimmed utensils Metal twist ties May cause arcing and could cause a fire in the oven.

  • Page 9: Important Information About Installing

    IMPORTANT INFORMATION ABOUT INSTALLING This appliance is NOT intended for use in a commercial environment. • Please observe the installation instructions provided and note that this appliance should only be • installed by a quali fied technician. The appliance is fitted with a plug and must only be connected to a properly installed earthed •...

  • Page 10: Placement

    Fitted units • This appliance is only intended to be fully fitted in a kitchen . • This appliance is not designed to be used as a tabletop appliance or inside a cupboard. • The fitted cabinet must not have a back wall behind the appliance. A gap of at least 35 mm must be maintain between the wall and the base or back panel of the •...
  • Page 11 * 20 mm for metal fascias Fully insert the appliance and centre it. Do not kink the connecting cable. Screw the appliance into place. The gap between the worktop and the appliance must not be closed by add tional battens. Important information Electrical connection The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.

  • Page 12: Before First Use

    BEFORE FIRST USE Initial cleaning and heating Removing the microwave oven all of the protection foil on the front. For more information see the „CLEANING“. Before the first use of the appliance, empty and closed. One To remove the new cooker smell, heat up the oven when it is ...

  • Page 13: Operation Instruction

    OPERATION INSTRUCTION (symbol flash when operating)
  • Page 14 1.Clock Setting When the microwave oven is connected with power, „00:00“ will blink, buzzer will ring once. 1) Press „ „ or „ „ to set the right time (between 00:00 and 23:59.) 2) After you have set the right time, press „ “.
  • Page 15 Microwave Power Chart Microwave Power 100% 300W Display 100W 900W 700W 450W You can see from the table below from which power levels you can choose and for which foods the power levels are suitable. Power level Food 900 W - Boiling water, reheating - Cooking chicken, fish, vegetables 700 W...
  • Page 16 4. Convection Cooking 1) Press the „ „ button to activate the microwave function. „01:00“ displays and the microwave icon appears. 2) Press „ „ or „ „ or „ „ to select convection mode. The default temperature is 180 degrees. 3) Press „...
  • Page 17 6. Microwave + Grill Cooking 1) Press the „ „ button to activate the microwave function. „01:00“ displays and the microwave icon appears. 2) Press“ „ or „ „ or „ „ to select the „ MW+GRILL“ combination mode. 3) Press „ “...
  • Page 18 8) Press„ „ or „ “ to select the cooking time. The MAX.time is 90 minutes. 9) Press „ „ button to start cooking. 8. Microwave + Grill Fan Cooking 1) Press the „ „ button to activate the microwave function. „01:00“ displays and the microwave icon appears.
  • Page 19 Note: 1) For non-steam menus (P01-P40), press „ „ to switch to your preferred menu and key in the weight of food manually. Press „ „ „ “ to set cooking time. 2) For the steam menu, at this time, if you need to adjust the default cooking time, you can press , then the default cooking time starts flashing on the display, at this point, press...
  • Page 20 12. Steam Function 1) In standby mode, press „ „ button, enter the steam mode, time lights up by default 10:00 In standby mode, press „water“ button, it allows you to enter into the steaming mode. By default the cooking time shows 10:00 and temperature to be 100 degree celsius. 2) Press the „...
  • Page 21 14. Microwave+Steam Function 1) In standby mode, press „ „ button, enter the steam mode, time lights up by default 10:00. Press „ „ or „ „ or „ “ to select the MW+Steam mode. The icon is displayed, then displays 300W. 2) Press „...
  • Page 22 16. Display Specification (1) By default, all settings will be set in automatically after 10 seconds once the opti- on has been selected (2) During setting program, after adjusted for 3 seconds, it will confirm automatically. Except auto menu, it will confirm after adjusted for 10 seconds. (3) When the oven is in setting state or pause state, including auto menu and defrost pro- gram, if no operation in 5 minutes, it will enter into the off state.
  • Page 23 Defect codes Below defect codes may occur during steam functions : E-06: 1-Water tank is not close well. E-05: water system abnormal, need to contact for Engineer to check, below is the possibilities. 1-The water sensor is abnormal. Add water to here 2-The water pipe is abnormal.
  • Page 24 STEAM MENU AUTO-MENU DISPLAY WEIGHT POWER Steam100°C Trout +300W Steam100°C Salmon Filet +100W Steam100°C Pikeperch +300W Prawns Steam100°C Steam100°C Halibut filet +300W Steam100°C Cockles +100W Steam100°C Cod filet +300W Steam100°C Herring +300W Steam100°C Tuna filet +100W...
  • Page 25 Steam100 °C Crab +300W Steam100 °C Chicken leg +300W Steam100 °C Chicken breast +300W Steam100 °C Meatball +300W Turkey Steam100 °C escalope +300W Pork filet, Steam100 °C whole +300W Steam100 °C Sausages +100W Runny Eggs Steam100 °C Eggs, hard Steam100 °C Eggs, soft Steam100 °C 200g+400mL...
  • Page 26 Steam100°C+300W Eggplant/ Aubergine Steam100°C +300W Beans Steam100°C Broccoli Steam100°C +300W Cauliflower Steam100°C +300W Peas Potatoes with skin (whole, Steam100°C+ 300W small) Potatoes with skin (whole, Steam100°C+ 300W big) Potatoes without skin Steam100°C+ 300W (pieces) Steam100°C+300W Carrots Steam100 °C +300W Corn cobs...
  • Page 27 Steam100°C Bell peppers Steam100°C Hot peppers Steam100°C+300W Mushrooms Steam100°C+300W Leeks Steam100°C Brussels sprouts Steam100°C+300W Celery Steam100°C+100W Asparagus Steam100°C+300W Spinach Steam100°C+300W Courgette...
  • Page 28 NO-STEAM MENU DISP AUTO-MENU WEIGHT POWER 450W Melt chocolate 450W 450W 450W Melt butter 450W 450W 100W+220 °C Sweet potato 100W+220 °C 100W+220 °C 100W+220 °C Chicken Whole 1000 100W+220 °C 1200 100W+220 °C 450W+220 °C 450W+220 °C 450W+220 °C 450W+220 °C Chicken leg 450W+220 °C...
  • Page 29 450W+220 °C 450W+220 °C 450W+220 °C Roast Pork 450W+220 °C 450W+220 °C 450W+220 °C 1000 450W+220 °C 100W+220 °C 100W+220 °C Chicken kabobs 100W+220 °C 100W+220 °C 100W+220 °C Pre-heat/220 °C Shrimp Pre-heat/220 °C Pre-heat/220 °C 100W+220 °C 100W+220 °C 100W+220 °C Beef steak 100W+220 °C...
  • Page 30 (+800ml cold water) (+1000ml cold 700W water) Pasta (+1200ml cold water) 900W Soup Pizza 900W Muffin 900W 50+500ml water 100+1000ml water Oatmeal 900W/450W 150+1500ml water Baked Apple 700W Sandwich 900W Popcorn 900W Fudge Brownies 100W+180 °C Bread Grill Level3 Chick nuggets 100W+220 °C French Fries 100W+220 °C...
  • Page 31 Peanut chocolate Pre-heat/180°C cookies Hamburger 100W+220 °C Muffin Pre-heat/180°C (70g*12)

  • Page 32: Troubleshooting

    TROUBLE SHOOTING Normal Radio and TV reception may be interfered when microwave oven operating. It is similar to the inter- ference of small electrical appliances, like mixer, Microwave oven interfering vacuum cleaner, and electric fan. TV reception It is normal. In low power microwave cooking, oven light may Dim Oven light become dim.
  • Page 33 Service 1800 252 878 658 www.blaupunkt-einbaugeraete.com Australia CustomerCare@blaupunktAU.com PN:16171100A30020...
