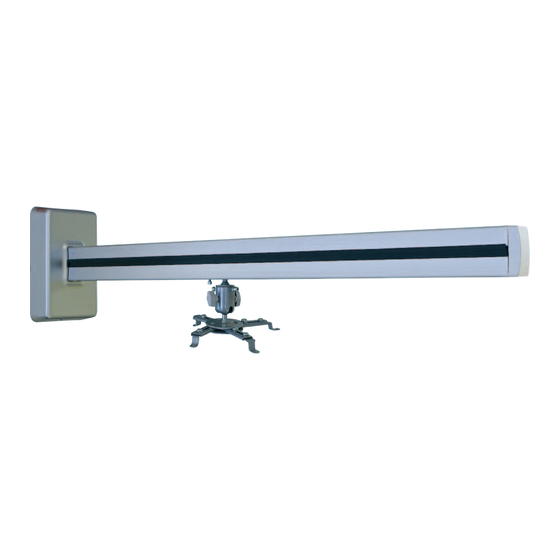

- Page 1 SPR-545P ADJUSTABLE WALL MOUNT FOR PROJECTORS N Instruction manual...
- Page 2 DESCRIPTION - Adjustable wall mount for video projectors. - 360º horizontally adjustable. - ±15º vertical tilt. - Arm length: 125 cm. - Distance to the wall: 13.5 to 120 cm. - Spirit level. - Colour: silver. - Maximum borne weight: 10 kg. - Dimensions: 4 x 14 cm arms and 4 x 9 cm arms, adjustable to the projector.
- Page 3 GENERAL ASSEMBLY DIAGRAM - 3 -...
- Page 4 4.- Depending on the dimensions of the projector, use the long arms O, the short arms P or a combination of both. FIXING THE MOUNT TO THE PROJECTOR - 4 -...
- Page 5 - 5 -...
- Page 6 This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
