- Page 1 S R-565 ADJUSTABLE AND EXTENDABLE CEILING MOUNT FOR PROJECTORS INSTRUCTION MANUAL...

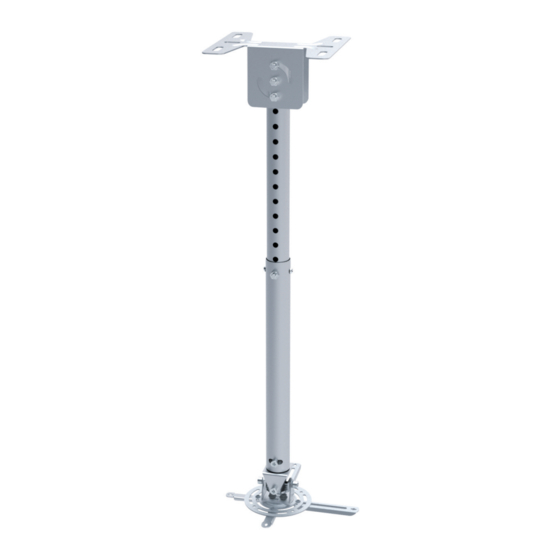

- Page 2 DESCRIPTION - Adjustable and extendable ceiling mount for projectors. For installation on horizontal and angled ceilings, or vertical surfaces. - 40º horizontally adjustable. - ±20º vertical tilt. - ±20º side tilt. - 3 cm horizontal line adjustment. - Can be installed in ceilings with angles from 0º to 90º. - Distance to ceiling: extendable from 19 to 84 cm.
- Page 3 3.- ATTACHING THE MOUNT TO THE PROJECTOR Depending on the size of the projector, use the short arms M-L, the long arms M-M or a combination of both. - 3 -...
- Page 4 4.- FIXING THE MOUNT TO THE INSTALLATION SURFACE - 4 -...
- Page 5 6.- ADJUSTING THE POSITION OF THE PROJECTOR - 5 -...
- Page 6 This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
