7.6
Charging Your Vesta Charger
Note: Charging your Vesta Charger and charging your
OPTIMIZER Lite IPG CANNOT be done at the same time. Always
charge the internal battery of your Vesta Charger before
attempting to charge the battery of your OPTIMIZER Lite IPG.
Note: Inspect the AC Adapter for any damage before each use.
Please call the 24-hour Support Hotline (866-312-5370) if a
replacement AC Adapter is needed.
Warning: Only use the AC Adapter provided with your Vesta
Charger to charge the battery in your Vesta Charger.
Otherwise, damage to your Vesta Charger may result.
To connect the AC Adapter to your Vesta Charger and begin
charging its internal battery, perform the following steps:
1. Turn your Vesta Charger around so that the back of the
Charger is facing up.
2. Remove the protective cover flap from the power input
connector located next to the base of the charging wand
cable. See Figure 7.

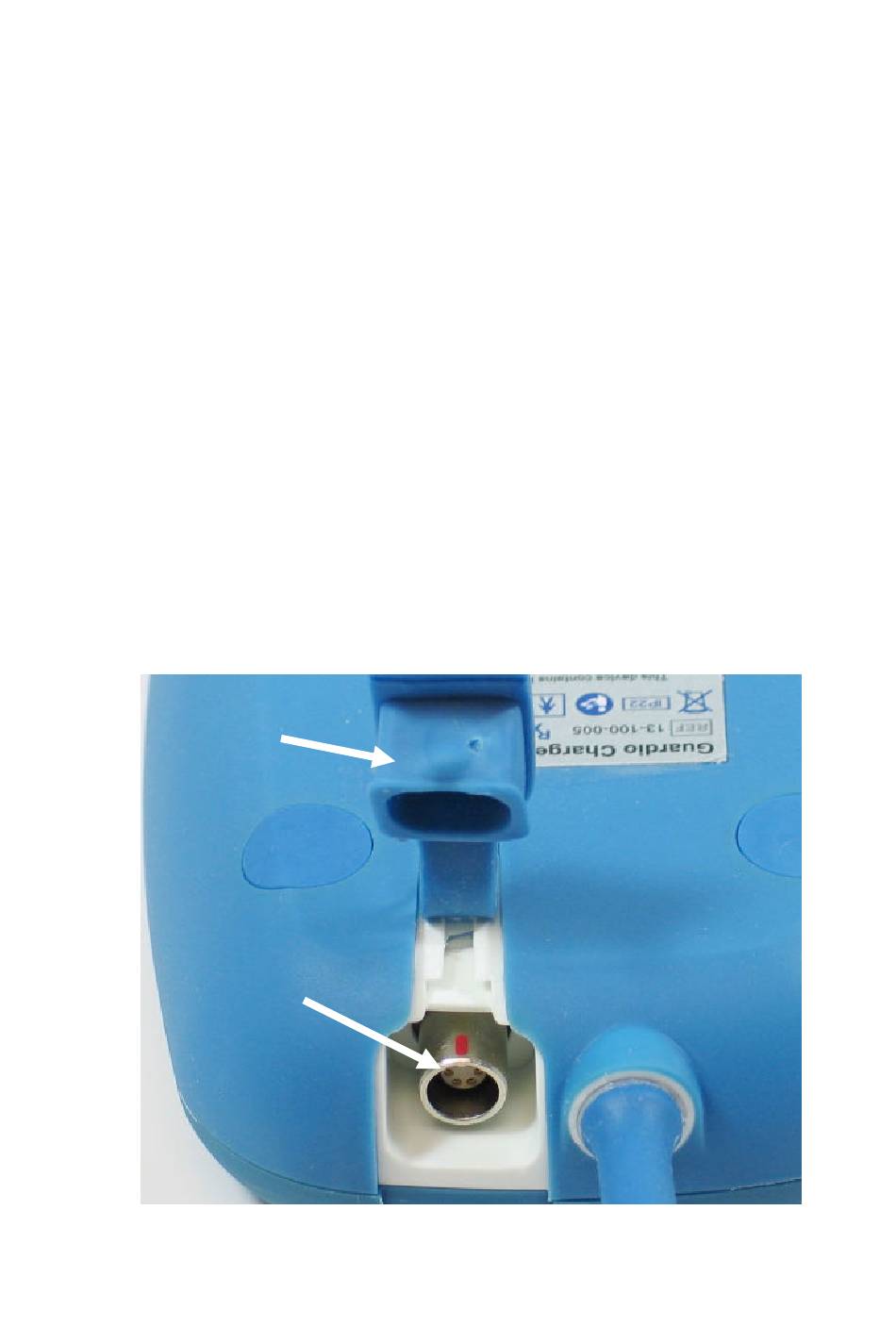

Protective
Flap
Power Input
Connector
Figure 7: Back of the Charger
15
