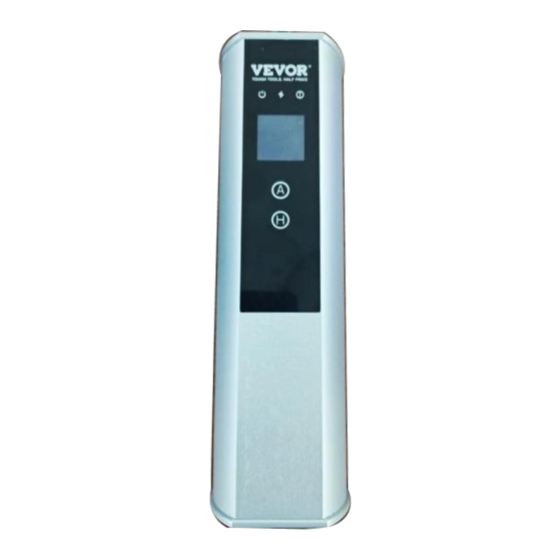

AC EV CHARGER
USER MANUAL
MODEL:EV-B07-EU011B/EV-B07-EU022B
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Related Manuals for VEVOR EV-B07-EU011B
Summary of Contents for VEVOR EV-B07-EU011B
- Page 1 AC EV CHARGER USER MANUAL MODEL:EV-B07-EU011B/EV-B07-EU022B We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 3 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 4: Safety Precautions
Before the operation, please read the operation manual carefully to know the equipment and the correct method of use. Please keep it for future reference. WARNING The device has home grid voltage monitoring, when it detects that your home grid is below the safe voltage range, it will automatically reduce the current by 50% for charging. -
Page 5: Product Introduction
4. Install the equipment, the total input of the front-end must be installed circuit breakers. 5.Do not use flammable,explosive, or combustible materials, chemicals, combustible gas and other dangerous goods near the charging pile. 6. Keep dry and clean on the charging point. If there is any dirt, please use a clean, dry cloth to wipe it. - Page 6 1. Product Parameters Type no. EV-B07-EU011B EV-B07-EU022B single-phase: 230V~ 50Hz single-phase:230V~ 50Hz In put voltage Three-phase: Three-phase:400V~ 50Hz 400V~ 50Hz single-phase: 230V~ 50Hz single-phase:230V~ 50Hz Ou tput voltage Three-phase: Three-phase:400V~ 50Hz 400V~ 50Hz Power output 11KW 22KW Maximum output current...
- Page 7 2.1 Adjust the charging current: click the button to adjust the charging gear. For EV-B07-EU022B,32A-24A-20A-16A-32A Cycle the current in this order. For EV-B07-EU011B,16A-13A-10A-8A-16A Cycle the current in this order.After switching the usage current, plug in the gun head to charge.
- Page 8 2.3 Appointment charging: Click to increase the reservation time.You can choose between 0 and 12H.After the appointment time, it will automatically enter the charging state.All models included in this manual can be charged by APP Appointment charging. OBILE PHONE APP CHARGING OPERATION INSTRUCTIONS 3.
- Page 9 3.1 Binding and Using Devices Open the installed APP, click Agree privacy Statement, you can register with your mobile phone number, social software binding registration, and log in to the APP after a successful registration. Long press A on the charging panel, and APP START appears on the display screen to enter the APP mode;...
- Page 10 APP interface. e. Device WIFI is reset： Press both buttons on the lower panel EV-B07-EU011B simultaneously for 3 seconds device display panel for 3 EV-B07-EU022B seconds ，After waiting for the display screen to display WIFI Reset, the device's WiFi will be reset.
- Page 11 Over-Current The red light flashes every four seconds Electrical leakage of The green and red lights flash once every second equipment Equipment The green and red lights flash every two seconds overtemperature 4.1 Fault display description(EV-B07-EU011B/ EV-B07-EU022B) - 9 -...
- Page 12 4.2 Ground Fault: The ground wire is not connected or the ground wire is poor. When this alarm message appears, please check if the grounding is normal. After ensuring reliable grounding, press the H button for 5 seconds to resolve this fault. 4.3 CP Fault:The device detects that the CP voltage exceeds 6V ±...
- Page 13 4.5 Undervoltage Fault: The rated input voltage is 230V, and a fault is reported if the voltage value is lower than 175V±5V for more than 5 minutes. Note: When the voltage is detected to be below 175V, the charging current will be reduced by half.
-
Page 14: Installation Instructions
INSTALLATION INSTRUCTIONS 5. List of Parts General purpose accessories Product specification Ac pile instruction manual 1 copy Storage bag Portable hard case travel bag 1 PCS Wall mount installation Wall mount Wall mounted fasteners 1 PCS M8*60 expansion Expansion screw 4 PCS screw Charging cable hook... - Page 15 c.Drill 2 holes with a diameter of 8mm according to the location of the fixed screw holes of Wall mounted fasteners, and tap in the expansion rubber plugs. Fix the mounting plate with nuts to fix the chassis. - 13 -...
-
Page 16: Troubleshooting Guidance
TROUBLESHOOTING GUIDANCE 1. Poor grounding alerts for faults. Failure manifestations：Red light flashes once in 2s and "Ground Fault" is displayed on the screen. Fault clearance： A. Check whether the socket is well grounded, and if not, do a good job of grounding. - Page 17 B. It is also possible to remove the charging cable, press the device "A" button for 5s, and then plug the charging cable into the electric car. 4. Charging is not possible and the red light flashes. Failure manifestations:The device is plugged in, the charging cable is connected to the electric car, the device flashes red and cannot be charged.
- Page 18 Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom Made In China - 16 -...
- Page 20 Technical Support and E-Warranty Certificate www.vevor.com/support...
