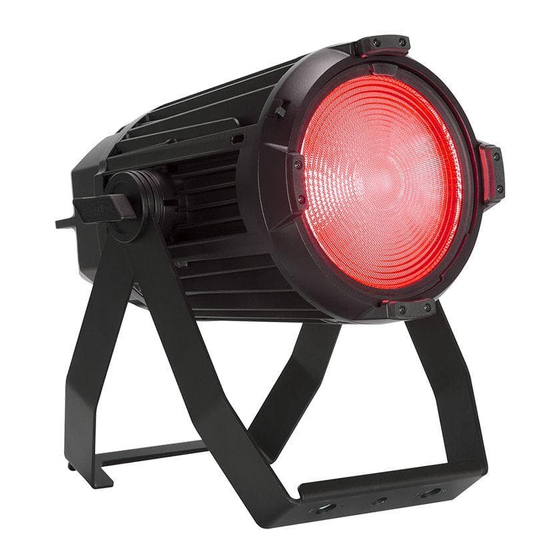

Summary of Contents for Elation KL PAR FC IP

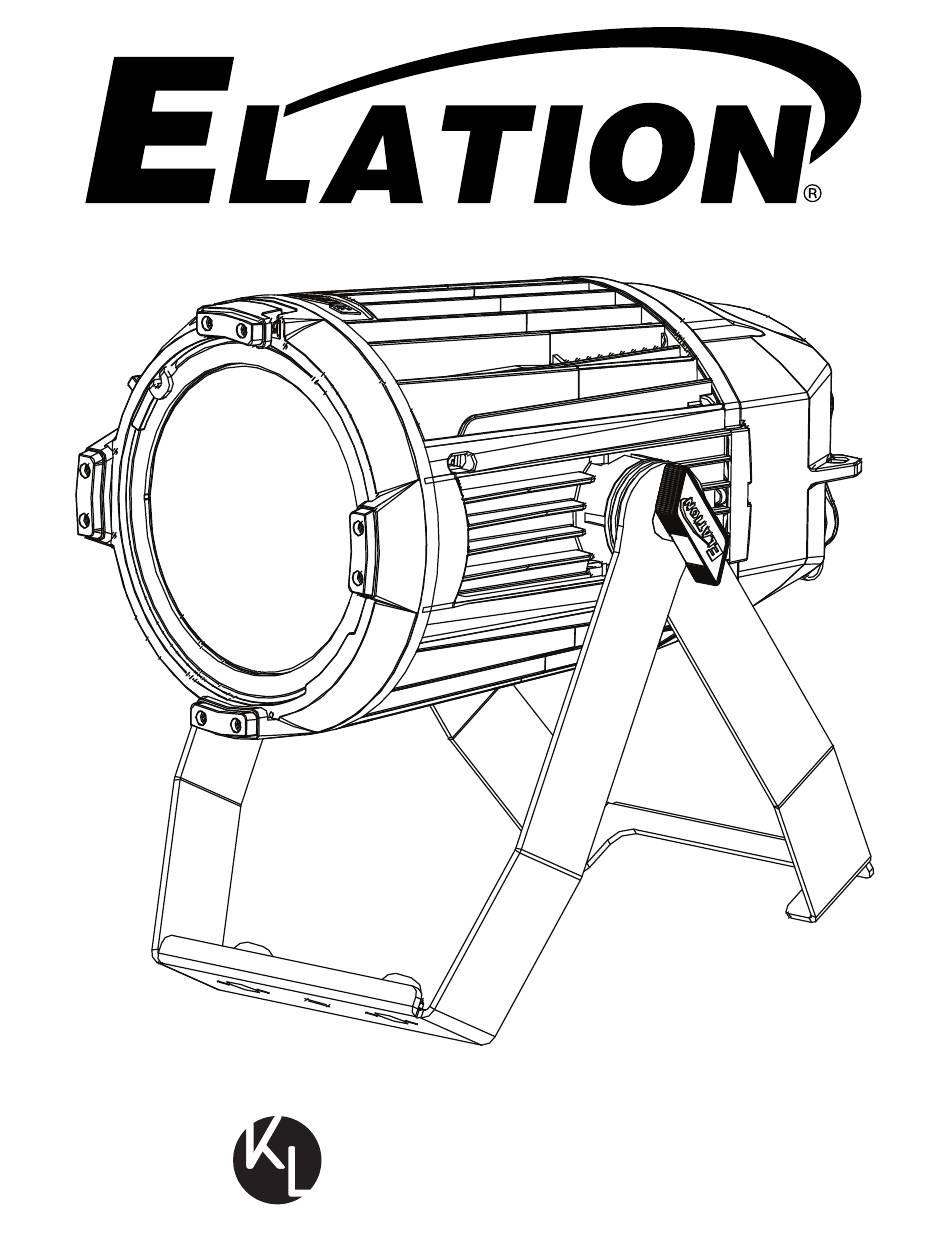

- Page 1 PAR FC IP User Manual...
- Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000...
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) IP65 Rated Safety Guidelines Maintenance Guidelines Overview Installation Guidelines Accessory Installation Control Panel Remote Device Management (RDM) System Menu Touch Bar Mode Fan Control and Low Noise Operation DMX Traits Dimmer Modes &... -
Page 4: General Information
• NSP (22°) • MFL (30°) • WFL (52°) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com... -
Page 5: Limited Warranty (Usa Only)
It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States. -
Page 6: Ip65 Rated
I P 6 5 R AT E D The International Protection (IP) rating system is commonly expressed as “IP” (Ingress Protection) followed by two numbers (i.e. IP65), where the numbers define the degree of protection. The first digit (Foreign Bodies Protection) indicates the extent of protection against particles entering the fixture, and the second digit (Water Protection) indicates the extent of protection against water entering the fixture. -
Page 7: Safety Guidelines
S A F E T Y G U I D E L I N E S This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. - Page 8 S A F E T Y G U I D E L I N E S For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit! • Do not touch the fixture housing during operation, as it may be hot. •...
-
Page 9: Maintenance Guidelines
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from an authorized Elation dealer. -
Page 10: Overview
O V E R V I E W Display Screen and Controls Valve Safety Safety Cable Cable Loop Loop Yoke Yoke Adjustment Adjustment Knob Knob POWER IN POWER OUT DMX OUT DMX IN AC100-240V 50/60Hz MAX:100-240V 10A FUSE: T5A/250V Power Power Mounting Yoke... -
Page 11: Installation Guidelines
I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. - Page 12 I N S TA L L AT I O N G U I D E L I N E S CLAMP INSTALLATION This device features an attachment point for an Omega bracket built into the mounting bracket, as well as two safety cable attachment points located on the rear face of the fixture on either side of the control panel (see the illustration below).
- Page 13 I N S TA L L AT I O N G U I D E L I N E S FIXTURE INSTALLATION This fixture is fully operational in three different mounting positions: hanging upside-down, mounted sideways on trussing, or set on a flat level surface. Be sure this fixture is kept well away from any flammable materials (decoration etc.).
- Page 14 LEDs. This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.
-
Page 15: Accessory Installation
A C C E S S O RY I N S TA L L AT I O N LENS INSTALLATION 1. Locate the lens lock latches on the 2. Insert the optional lens into position on top front of the fixture. Pinch the latches of the forward face of the fixture, then towards each other and hold in place. -
Page 16: Control Panel
The display screen will shut OFF automatically after 30 seconds of inactivity. To turn the display back on, press and hold the MODE button for 5 seconds. AN ELATION C-LOADER II CAN ALSO BE USED TO UPDATE THE FIXTURE TO THE LATEST SOFTWARE. To order this device, please contact Elation Support for further details. -
Page 17: Remote Device Management (Rdm)
R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used through- out the entire system, including DMX data splitters and wireless systems. -
Page 18: System Menu
S YS T E M M E N U Disabled For use when running fixture in DMX mode Dimmer For use when running fixture in dimmer mode For use when running fixture in CCT mode with touch bar Int CCT Grn control TOUCH BAR MODE For use when running fixture in color mode with touch bar... - Page 19 S YS T E M M E N U Standard Stage Dim Modes Architectural Theatre Stage 2 Dim Speed 0s - 10s (default = 0.1s) Dim to Warm On / Off Linear Square Dim Curves Square Inverse S-Curve 900Hz - 1500Hz, 2500Hz, 4000Hz, 5000Hz, 6000Hz, LED Refresh Rate 10KHz, 15KHz, 20KHz, 25KHz (Default = 1200Hz)
- Page 20 S YS T E M M E N U Current Run Time Time Total Run Time Last Run Time Current Temperature Max Resettable INFORMATION DMX Values Green Product IDs RDM UID Error Logs Fixture Errors Software Version Vx.x Red 0 - 255 Green 0 - 255 Calibration Blue 0 - 255...
-
Page 21: Touch Bar Mode
T O U C H B A R M O D E When the device has been set to Touch Bar mode, the lighting display can be adjusted using the touch bar located below the display screen. The touch bar is located just below the dis- play screen, as shown below. -
Page 22: Fan Control And Low Noise Operation
FA N C O N T R O L A N D L O W N O I S E O P E R AT I O N This fixture is a high-performance device suited for multiple applications. For noise critical environments such as Theater, Opera, or Orchestral Halls, it offers various fan operation modes which remove unwanted noise distractions for the audience and performers. -
Page 23: Dmx Traits
D M X T R A I T S Dimmer Dimmer Color Function Snap 11CH 17CH Values Value 13CH Dimmer 0 - 255 Intensity, 0% → 100% Dimmer Fine 0 - 255 Fine Intensity Control Shutter/Strobe 0 - 31 Shutter closed 32 - 63 No function (shutter open) 64 - 95... - Page 24 D M X T R A I T S Dimmer Dimmer CMY Ext Color Function Snap 11Ch 17Ch 13Ch Values Value Yellow 0 - 255 0% → 100% Yellow Fine 0 - 255 Fine Adjustment Variable CCT 0 - 23 Open 2400K →...
- Page 25 D M X T R A I T S Dimmer Dimmer CMY Ext Color Function Snap 11Ch 17Ch 13Ch Values Value Dimmer Delay time (contin- ued) 2.0s 3.0s 4.0s 5.0s 6.0s 7.0s 8.0s 9.0s 10.0s 142 - 149 Idle Dim to Warm 150 - 154 DTW On 155 - 159 DTW Off 160 - 255 Idle...
- Page 26 D M X T R A I T S Dimmer Dimmer CMY Ext Color Function Snap 11Ch 17Ch 13Ch Values Value Refresh Rate (Hz) (continued) 1100 1110 1120 1130 1140 1150 1160 1170 1180 1190 1200 1210 1220 1230 1240 1250 1260 1270...
- Page 27 D M X T R A I T S Dimmer Dimmer CMY Ext Color Function Snap 11Ch 17Ch 13Ch Values Value Refresh Rate (Hz) (continued) 4000 5000 6000 10000 15000 20000 25000 169 - 172 Idle Color Tuning 173 - 174 Color Tuning Off 175 - 176 Highest Fidelity 177 - 178 High Fidelity 179 - 180 Balanced Output and Fidelity...
-
Page 28: Dimmer Modes & Curves
D I M M E R M O D E S & C U R V E S... -
Page 29: Color Temperature Chart
C O LO R T E M P E R AT U R E C H A R T DMX VALUE COLOR TEMPERATURE (K) DMX VALUE COLOR TEMPERATURE (K) 6300 2400 6400 2500 6500 2600 6600 2700 6700 2800 6800 2900 6900 3000... -
Page 30: Color Macros Chart
C O LO R M A C R O S C H A R T Filter Filter Value Name Value Name Number Number Pale Yellow Medium Purple Straw Lavender Gold Tint Palace Blue Spring Yellow Dark Blue Medium Yellow Medium Blue Yellow Deep Blue Deep Amber... -
Page 31: Torque Settings For Screws
T O R Q U E S E T T I N G S F O R S C R E W S IN ORDER TO MAINTAIN THE IP65 RATING ON THE LIGHTING FIXTURES, ALL SCREWS MUST BE TIGHTENED TO THE FOLLOWING TORQUE SPECIFICATION USING A TORQUE DRIVER. -
Page 32: Ip Test Parameters
Following any repair or maintenance procedure that requires disassembly of the fixture, use Elation’s IP Tester to confirm the IP integrity of the fixture. The air valve is located on the back panel next to the display screen, as shown in the diagram below. Please contact Elation... -
Page 33: Dimensional Drawings
D I M E N S I O N A L D R AW I N G S 453.3mm (17.846in) 106.5mm (4.193in) 107mm 304mm (4.213in) (11.969in) 356.8mm (14.047in) 346.8mm (13.654in) 304mm (11.969in) -
Page 34: Specifications
S P E C I F I C AT I O N S SOURCE 365W 6500K RGBMA LED Engine 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming. PHOTOMETRIC DATA 11.000 Total Lumen Output CRI 92... -
Page 35: Ordering Information | Fcc Statement
O R D E R I N G I N F O R M AT I O N SKU (US) SKU (EU) ITEM DESCRIPTION KLP528 1237000279 KL Par FC IP KLP959 1236100143 7.5” Barndoors KLP987 1236100144 XWFL Lens KLP988 1236100145...
