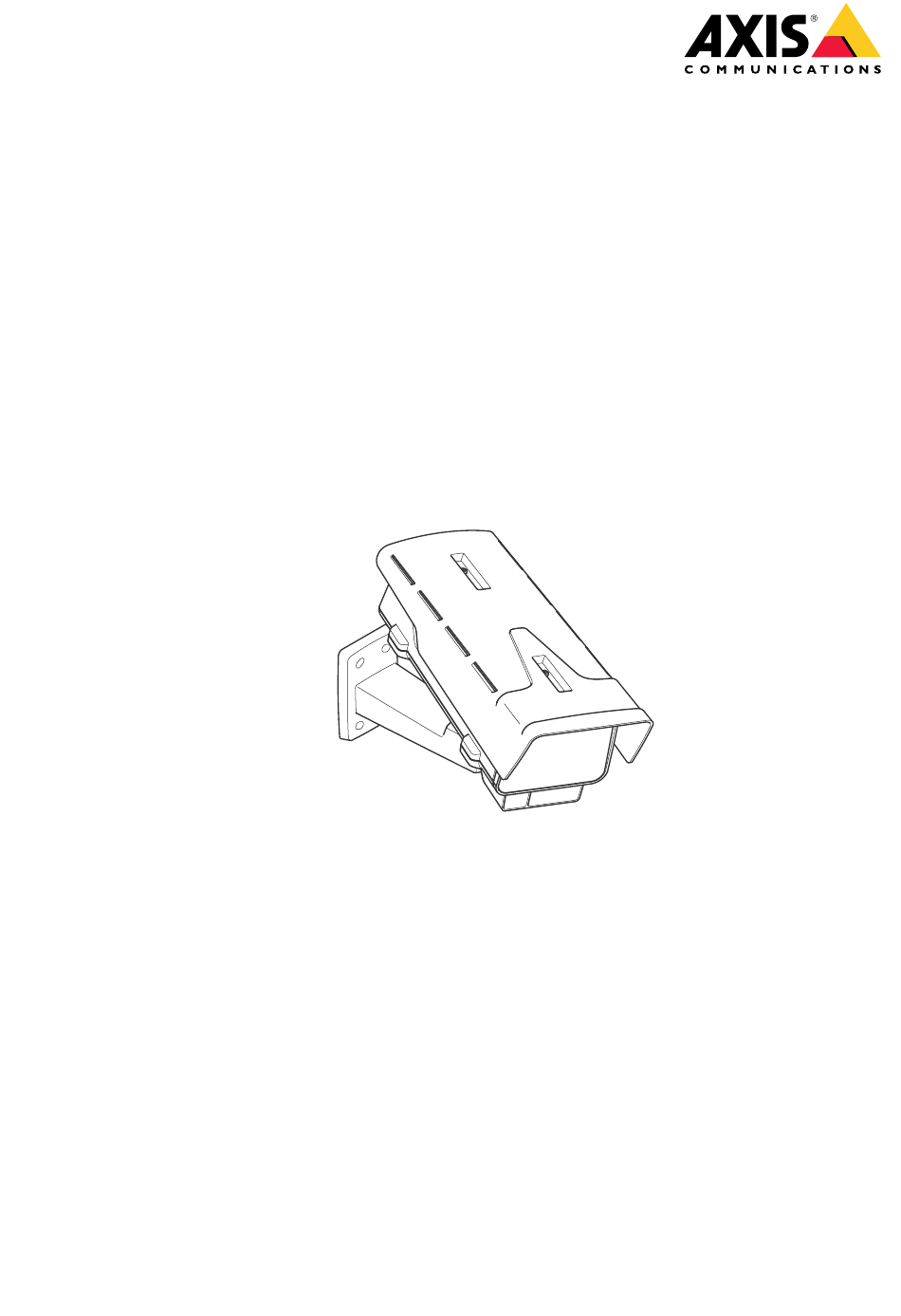

- Page 1 AXIS P13-E Series AXIS P1375-E Network Camera AXIS P1377-LE Network Camera AXIS P1378-LE Network Camera Repainting instructions...
-
Page 2: Risks With Repainting
Risks with repainting There are several risks when disassembling or assembling an Axis product. There is always a certain yield loss during assembly. Training of operators and the use of correct tools mediates some of the problems but they can never be fully avoided. Some of the risks include: ESD Damage - Always handle the product in an ESD safe environment. -
Page 3: Pretreatment Of Parts
AXIS P13-E Series Repaint the product Repaint the product Preparations • If applicable, disassemble the device according to the instructions in this document. • Clean all parts that will be repainted thoroughly to remove grease, dust, or oil. • To ensure reassembly and functionality of the product, mask any openings (for example for screws, LED indicators, or microphones) before you paint. - Page 4 AXIS P13-E Series Repaint the product Disassembly Disassemble the housing Screw T20 (4x) Bottom chassis Top cover Weathershield Screw T20 (2x) 1. Remove the 4x screws and the bottom chassis. 2. Disconnect the safety wire. 3. Remove the top cover.
- Page 5 AXIS P13-E Series Repaint the product Disassemble the wall mount bracket Screw T30 Socket Square nut Screw T20 (4x) Ball joint 1. Remove the T30 screw at the bottom of the arm. 2. Separate the socket and the square nut and remove the ball joint.
- Page 6 AXIS P13-E Series Repaint the product Mask the following parts of the top cover: 1. The label. 2. Everything on the inside. 3. The screw holes. 4. The front window including the black areas. Masking the bottom chassis Top side...
- Page 7 AXIS P13-E Series Repaint the product Masking the weathershield Black Mask the black part of the weathershield.
- Page 8 AXIS P13-E Series Repaint the product Masking the wall mount bracket Screw hole (4x) Ball joint Socket teeth Slot Mask the following parts: 1. The four screw holes 2. The ball joint. 3. The socket teeth. 4. The slot for the square nut.
- Page 9 3. To get a better coverage and clearer color, apply a second layer of spray paint. 4. When the paint is dry, remove the masking and reassemble the product. Reassembly Reassemble the product. For more information, see the Installation Guide available at axis.com...
- Page 10 Repainting instructions Ver. M2.2 AXIS P13-E Series Date: January 2024 © Axis Communications AB, 2023 - 2024 Part no. T10197064...
